2.5-3.5T 2WD/4WD rough terrain off-road forklift
The S Series 2.5–3.5 ton rough terrain forklift is designed for outdoor material handling on uneven, muddy, gravel and unpaved surfaces. Available in both 2WD and 4WD configurations, it combines strong traction, high ground clearance, reliable diesel power and excellent maneuverability for construction sites, farms, timber yards and industrial applications.
|
The difference between 2WD and 4WD |
||
|
Item |
2WD (Two-Wheel Drive) |
4WD (Four-Wheel Drive) |
|
Key Advantages |
Relatively simple structure, cost-effective |
Strong traction and excellent off-road capability |
|
Suitable Road Surfaces |
Concrete roads, paved surfaces, standard gravel roads |
Mud, gravel, slopes, and soft or slippery surfaces |
|
Gradeability |
Suitable for moderate gradients |
Better suited for steep gradients and complex inclines |
|
Operating Costs |
Relatively low |
Relatively high |
|
Recommended Use Cases |
Factory premises, warehouse perimeters, logistics yards |
Construction sites, farms, timber yards, mining areas, and challenging outdoor terrains |
The S Series rough terrain forklift is built for demanding outdoor working environments where conventional warehouse forklifts may not perform efficiently.
With rated capacities of 2.5 ton, 3.0 ton and 3.5 ton, the series is available in both 2-wheel drive and 4-wheel drive configurations to meet different terrain and operating requirements.
The 2WD version is suitable for relatively firm surfaces such as concrete yards, compacted ground and light-duty outdoor applications,
The 4WD version provides enhanced traction and climbing performance on muddy, gravel, sandy and uneven terrain.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
The 2WD rough terrain forklift offers a practical balance between outdoor mobility, operating efficiency and cost.
It is ideal for applications where the ground is relatively firm but conventional warehouse forklifts do not provide sufficient ground clearance or outdoor capability.
Recommended for:
Industrial yards
Warehouses with outdoor loading areas
Logistics centers
Building material yards
Light construction sites
Compacted gravel surfaces
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
The 4WD rough terrain forklift provides improved traction and stability for more demanding working conditions.
Four-wheel drive allows the forklift to operate more effectively on loose, muddy, sandy, wet and uneven surfaces, making it particularly suitable for challenging outdoor applications.
Recommended for:
Construction sites
Farms and agricultural operations
Timber yards
Stone and building material yards
Mining support operations
Equipment rental fleets
Muddy and unpaved working areas
----------------------------------------------------------------------------------------------------------------------------------------------------------
Powered by a reliable diesel engine and equipped with high ground clearance, rough-terrain tires and a strong chassis, the S Series delivers stable performance for construction, agriculture, timber handling, rental fleets and other outdoor material handling applications.
The S Series rough terrain forklift can be widely used in:
Construction · Agriculture · Timber Handling · Building Materials · Stone Industry · Farms · Equipment Rental · Industrial Yards · Outdoor Logistics
|
S25-35 Rough-Terrain Forklift Truck – Technical Specifications |
||||||||
|
BASIC TECHNICAL PARAMETERS |
||||||||
|
Model |
|
|
CPCD-S25B (2WD) |
CPCD-S25A (4WD) |
CPCD-S30B (2WD) |
CPCD-S30A (4WD) |
CPCD-S35B (2WD) |
CPCD-S35A (4WD) |
|
Power Type |
|
|
Diesel |
Diesel |
Diesel |
Diesel |
Diesel |
Diesel |
|
Rated Load Capacity |
|
(kg) |
2500 |
2500 |
3000 |
3000 |
3500 |
3500 |
|
Load Center |
|
(mm) |
500 |
500 |
500 |
500 |
500 |
500 |
|
Battery (Voltage / Capacity) |
|
(V/Ah) |
12/100 |
12/100 |
12/100 |
12/100 |
12/100 |
12/100 |
|
PERFORMANCE PARAMETERS |
||||||||
|
Maximum Lift Height |
H |
(mm) |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
|
Free Lift Height |
H3 |
(mm) |
140 |
140 |
145 |
145 |
150 |
150 |
|
Mast Tilt Angle (Forward / Backward) |
α/β |
(°) |
10/12 |
10/12 |
10/12 |
10/12 |
10/12 |
10/12 |
|
Maximum Lifting Speed (Laden / Unladen) |
|
(mm/s) |
560/600 |
560/600 |
455/480 |
455/480 |
455/480 |
455/480 |
|
Maximum Lowering Speed (Laden / Unladen) |
|
(mm/s) |
540/450 |
540/450 |
450/410 |
450/410 |
450/410 |
450/410 |
|
Maximum Travel Speed (Laden / Unladen) |
|
(km/h) |
20/20 |
20/20 |
20/20 |
20/20 |
20/20 |
20/20 |
|
Minimum Turning Radius |
Ra |
(mm) |
3300 |
3300 |
3300 |
3300 |
3300 |
3300 |
|
Gradeability (Laden / Unladen) |
|
(%) |
15/20 |
40/ |
15/20 |
35/ |
15/20 |
30/ |
|
Service Weight |
|
(kg) |
4490 |
4840 |
4740 |
5090 |
5040 |
5390 |
|
DIMENSIONS |
||||||||
|
Length (Excluding Forks) |
L₀ |
(mm) |
3120 |
3120 |
3125 |
3125 |
3130 |
3130 |
|
Overall Width |
W1 |
(mm) |
1600 |
1600 |
1600 |
1600 |
1600 |
1600 |
|
Mast Height |
H1 |
(mm) |
2290 |
2290 |
2290 |
2290 |
2290 |
2290 |
|
Overhead Guard Height |
H4 |
(mm) |
2260 |
2260 |
2260 |
2260 |
2260 |
2260 |
|
Load Backrest Height |
H13 |
(mm) |
1085 |
1085 |
1310 |
1310 |
1310 |
1310 |
|
Overall Height at Maximum Lift |
H2 |
(mm) |
4075 |
4075 |
4300 |
4300 |
4300 |
4300 |
|
Minimum Ground Clearance |
H5 |
(mm) |
270 |
270 |
270 |
270 |
270 |
270 |
|
Wheelbase |
L1 |
(mm) |
1920 |
1920 |
1920 |
1920 |
1920 |
1920 |
|
Front Track |
W3 |
(mm) |
1250 |
1250 |
1250 |
1250 |
1250 |
1250 |
|
Rear Track |
W2 |
(mm) |
1206 |
1206 |
1206 |
1206 |
1206 |
1206 |
|
Front Overhang |
L2 |
(mm) |
580 |
580 |
585 |
585 |
590 |
590 |
|
Rear Overhang |
L3 |
(mm) |
620 |
620 |
620 |
620 |
620 |
620 |
|
OTHER PARAMETERS |
||||||||
|

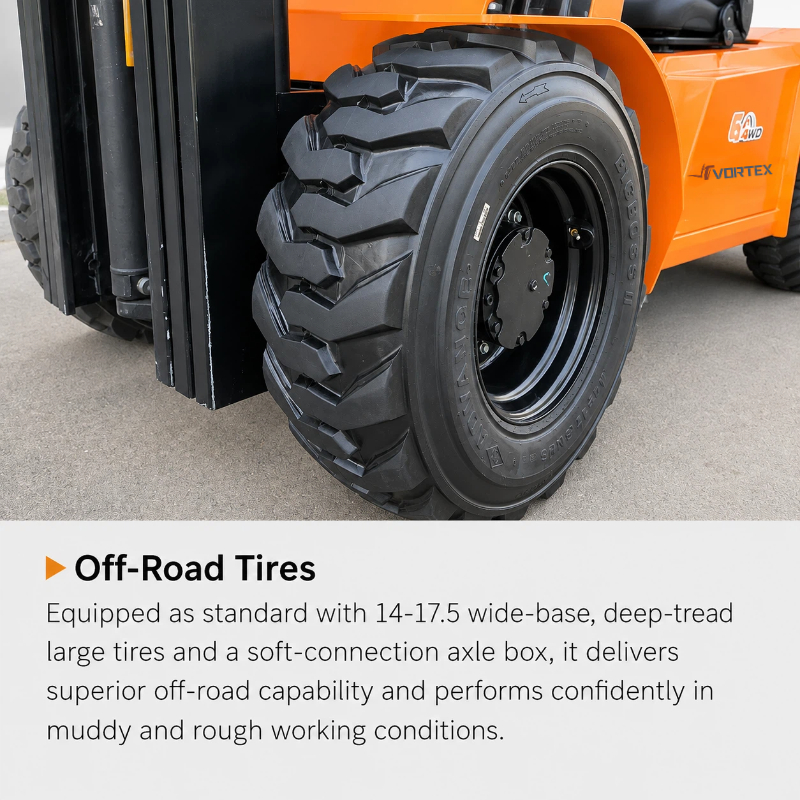

Front Tires |
|
|
14-17.5-14PR |
14-17.5-14PR |
14-17.5-14PR |
14-17.5-14PR |
14-17.5-14PR |
14-17.5-14PR |
|
Rear Tires |
|
|
10.0/75-15.3-14PR |
10.0/75-15.3-14PR |
10.0/75-15.3-14PR |
10.0/75-15.3-14PR |
10.0/75-15.3-14PR |
10.0/75-15.3-14PR |
|
Fork (L × W × T) |
L4×W×T |
(mm) |
1220×122×40 |
1220×122×40 |
1220×122×45 |
1220×122×45 |
1220×122×50 |
1220×122×50 |
|
ENGINES CONFIGURATIONS |
||||||||
|
Model |
|
|
Quanchai V29-50V42 |
Quanchai V29-50V42 |
Quanchai V32-50V42 |
Quanchai V32-50V42 |
Quanchai V32-50V42 |
Quanchai V32-50V42 |
|
Rated Power |
|
(kW/rpm) |
36.8/2500 |
36.8/2500 |
36.8/2500 |
36.8/2500 |
36.8/2500 |
36.8/2500 |
|
Maximum Torque |
|
(N·m/rpm) |
170/1800 |
170/1800 |
200/1600-1800 |
200/1600-1800 |
200/1600-1800 |
200/1600-1800 |
|
Number of Cylinders |
|
|
4 |
4 |
4 |
4 |
4 |
4 |
|
Displacement |
|
(L) |
2.9 |
2.9 |
3.2 |
3.2 |
3.2 |
3.2 |
|
Standard Configuration |
|||||||||
|
Full Hydraulic Power Steering |

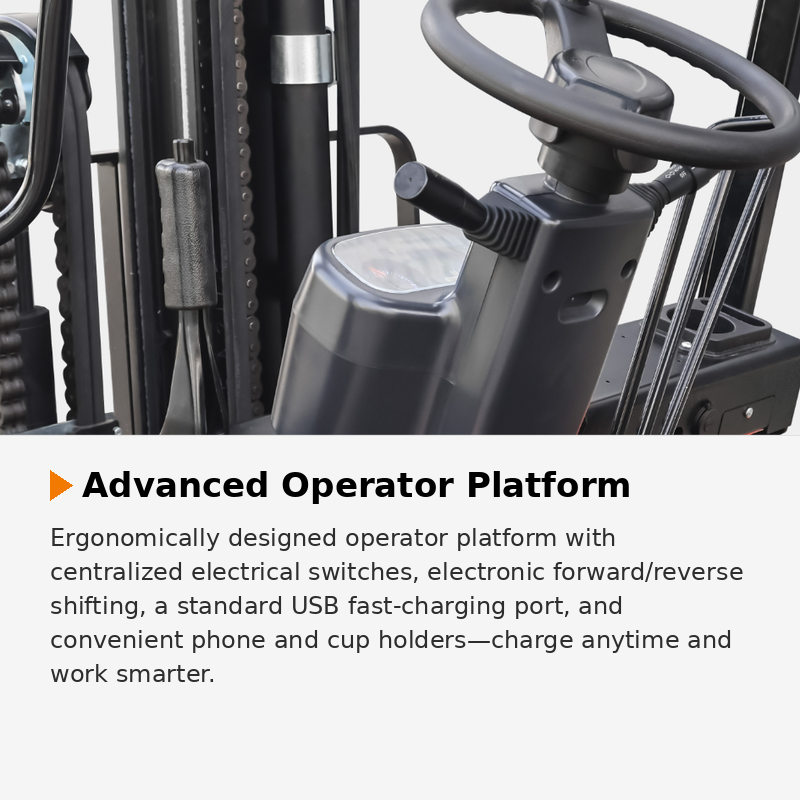

Adjustable Steering Wheel |
Lift Circuit Speed Limiting Valve |
Two-Stage Wide-View Mast |
Standard Load Backrest |
|||||
|
Pull-Type Parking Brake |
Standard Overhead Guard |
Pneumatic Tires |
Entry Assist Handle |
Hydraulic Oil Dipstick |
|||||
|
Reverse Buzzer |
Two-Spool Multi-Way Valve |
Load Safety Valve |
Lift and Tilt Control Levers |
Multi-Function Instrument Panel |
|||||
|
Standard Forks |
Electric Horn |
Tilt Circuit Self-Locking Valve |
Rain Canopy |
LED Combination Front Lights |
|||||
|
USB Charging Port |
Anti-Slip Entry/Exit Step |
On-Board Tool Kit |
|
|
|||||
|
Special Options for Mast |
|||||||||
|
Two-Stage Full Free-Lift Mast |
Three-Stage Full Free-Lift Mast |
Widened Fork Carriage |
Raised Load Backrest |
Extended Forks |
Special Forks |
||||
|
Optional Configuration |
||
|

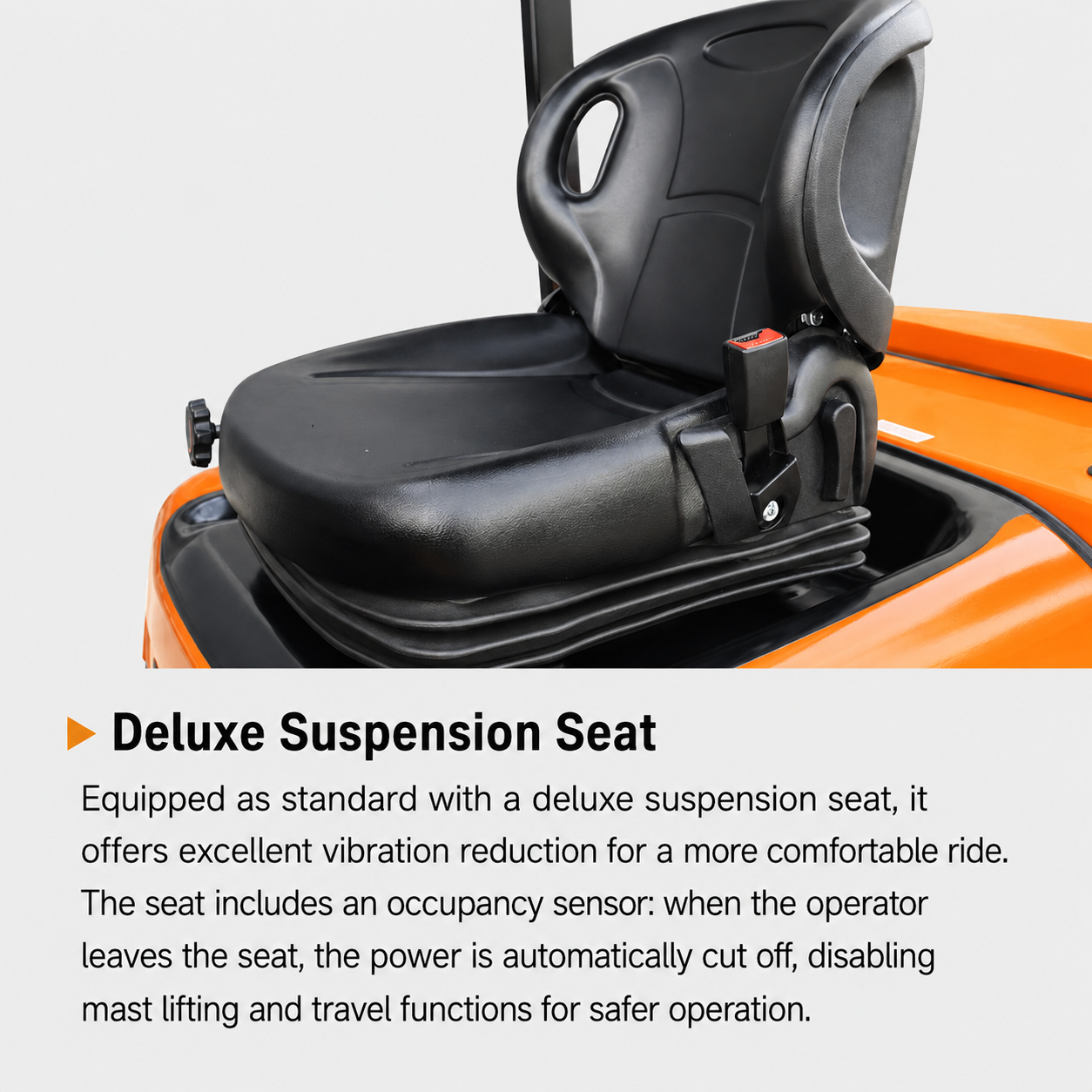

Suspension Seat |
High/Low Overhead Guard |
Front Windshield (with Wiper) |
|
Fire Extinguisher |
3-/4-Spool Multi-Way Valve |
LED Rear Work Light |
|
Operator Cab |
Toolbox |
Customer-Specified Color |
|
Optional Working Devices |
|||
|
Side Shifter |
Paper Roll Clamp |
Rotating Clamp |
Rotating Fork |
|
Load Stabilizer |
Fork Extensions |
Drum Clamp |
Bale Clamp |
|
Carton Clamp |
Fork Positioner |
Push-Pull |
Tipping Fork |
|
Side-Shifting Fork Positioner |
Carpet Pole |
Crane Boom |
Rotator |
|
ENGINE OPTIONS |
||||||
|
Model |
Unit |
Xinchai A498BPG |
Xinchai 3E22Y_G498 |
Kubota V2403 |
Isuzu 4JG2 |
Yanmar 4TNE98 |
|
Rated Power |
(kW/rpm) |
45/2500 |
44.8/2400 |
42.6/2400 |
46/2450 |
42.1/2300 |
|
Maximum Torque |
(N·m/rpm) |
193/1675_1875 |
185/1600_1800 |
198.5/1600 |
184.7/1700 |
177.6_196.3/1700 |
|
Number of Cylinders |
|
4 |
4 |
4 |
4 |
4 |
|
Displacement |
(L) |
3.2 |
2.23 |
2.4 |
3.059 |
3.3 |
