The Vortex ES and ESB series electric stackers feature powerful performance and agile handling, making them suitable for warehouses, factories, and logistics operations.
.png)

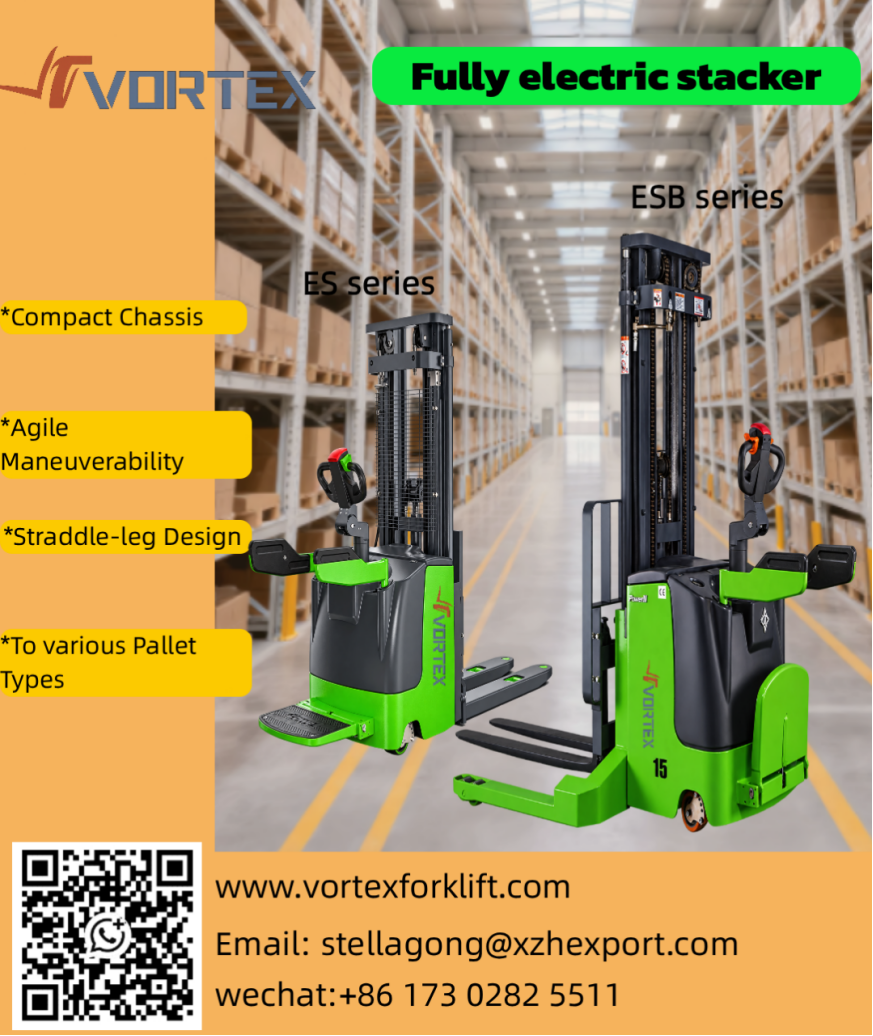

Vortex Fully Electric Stacker
**Big power engine ensure strong power supply, multi-function ensure high efficient operation.
**This stacker is mainly used for single-face pallet, double-face pallet and non-pallet loads stacking and transporting in warehouse, docks, factories and so on, it features compact size, reduced energy costs, no pollution and low noise
| ES Series | ESB Series |
| Compact Standard Stacker | Straddle Stacker |
| Agile, compact, and efficient | Pallet compatibility and adjustable fork spread |
| Primarily for open-bottom pallets | Compatible with single-sided, double-sided, and some non-standard pallets |
| Fixed fork spacing | Adjustable forged forks |
| Suitable for standard warehouses and narrow-aisle racking | Suitable for various pallet sizes and non-standard cargo storage |
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)

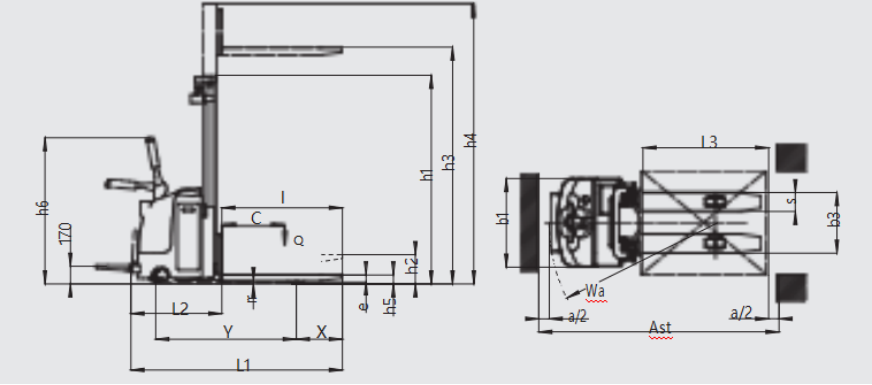

ES Series Fully Electric Stacker Parameters
|
特性 |
产品型号 |
Product model |
|
|
ES15 |
ESB15 |
ES20 |
ESB20 |
|
额定载荷 |
Load capacity |
Q |
kg |
1500 |
2000 |
|||
|
载荷中心 |
Load center |
C |
mm |
600 |
600 |
|||
|
后悬距 |
Rear overhang |
X |
mm |
445 |
280 |
440 |
395 |
|
|
轴距 |
Wheelbase |
Y |
mm |
1330 |
1330 |
1386 |
1386 |
|
|
自重（不含电池） |
Weight (without battery) |
|
kg |
850 |
945 |
1000 |
1060 |
|
|
基本 |
门架总高（货叉最低时） |
Height with mast closed |
h1 |
mm |
附表1 |
附表2 |
附表3 |
附表4 |
|
自由提升高度 |
Free lift |
h2 |
mm |
|||||
|
起升高度 |
Lifting height |
h3 |
mm |
|||||
|
最大高度（货叉最高时） |
Height with mast extended |
h4 |
mm |
|||||
|
操作手柄离地高度（最大/最小） |
Height of handle in drive position (Max/Min) |
h6 |
mm |
1396/1136 |
1396/1136 |
1390/1130 |
1390/1130 |
|
|
总长 |
Overall length |
L1 |
mm |
2045 |
2005 |
2110 |
2055 |
|
|
总宽 |
Overall width |
b1 |
mm |
850 |
1510 |
945 |
1510 |
|
|
底腿内宽 |
Inside width between two legs |
b2 |
mm |
- |
1270 |
- |
1270 |
|
|
货叉尺寸 |
Fork dimensions (Forging) |
s/e/l |
mm |
180/66/1150 |
100/35/1070 |
180/66/1150 |
100/40/1070 |
|
|
货叉外宽 |
Fork width |
b3 |
mm |
570、580、680 |
200-720 |
570、580、680 |
200-720 |
|
|
最小离地间隙 |
Min ground clearance |
m |
mm |
30 |
30 |
30 |
30 |
|
|
直角堆垛通道宽度,托盘 |
1000×1200(1000沿货叉边) |
Ast |
mm |
2495 |
2590 |
2550 |
2645 |
|
|
直角堆垛通道宽度,托盘800×1200(1200沿货叉边) |
Aisle width for pallets 800x1200 (fork along side Aisle width for pallets 1000x1200 (fork along side1000) |
Ast |
mm |
2460 |
2590 |
2510 |
2645 |
|
|
转弯半径 |
Turning radius |
Wa |
mm |
1626 |
1626 |
1683 |
1683 |
|
|
性能 |
行驶速度 满载/空载 |
Travel speed loaded/unloaded |
|
km/h |
5.2/6 |
|||
|
提升速度 满载/空载 |
Lift speed loaded/unloaded |
|
mm/s |
90/120 |
||||
|
下降速度 满载/空载 |
Lowering speed loaded/unloaded |
|
mm/s |
125/80 |
||||
|
最大爬坡能力 满载/空载 |
Max gradeability loaded/unloaded |
|
% |
5/8 |
||||
|
电机 |
驱动电机功率 |
Drive motor rating |
|
kw |
DC 1.1、DC 1.2、AC 1.5 |
|||
|
提升电机功率 |
Lift motor rating |
|
kw |
DC 2.2、DC 3.0 |
DC 3.0 |
|||
|
蓄电池电压/容量 |
Battery voltage/nominal capacity |
|
V/Ah |
24/(210、240、270) |
||||
|
蓄电池重量 |
Battery weight |
|
kg |
200、205、295 |
||||
|
其他 |
行走控制 |
Type of drive control |
|
|
MOSFET |
|||
|
转向控制 |
Type of steering |
|
|
机械转向*、EPS Mechanical Steering*、EPS |
||||
|
Table 1 (Height Choices for ES15) |
|||||
|
车型 |
门架配置 |
起升高度 |
总高(最低时) |
自由提升高度 |
总高(最高时) |
|
h3 (mm) |
h1 (mm) |
h2 (mm) |
h4 (mm) |
||
|
ES15 |
单门架 Single |
1600 |
2010 |
1600 |
2010 |
|
双门架 |
2500 |
1750 |
0 |
2965 |
|
|
3000 |
2000 |
0 |
3465 |
||
|
3500 |
2250 |
0 |
3965 |
||
|
4000 |
2550 |
0 |
4515 |
||
|
三门架 |
4500 |
2055 |
1576 |
4985 |
|
|
4800 |
2155 |
1676 |
5285 |
||
|
5000 |
2215 |
1756 |
5465 |
||
|
5500 |
2395 |
1820 |
5985 |
||
|
Table 2 (Height Choices for ESB15) |
|||||
|
车型 |
门架配置 |
起升高度 |
总高(最低时) |
自由提升高度 |
总高(最高时) |
|
h3 (mm) |
h1 (mm) |
h2 (mm) |
h4 (mm) |
||
|
ESB-15 |
单门架 Single |
1600 |
2010 |
1053 |
2557 |
|
双门架 |
2500 |
1750 |
0 |
3457 |
|
|
3000 |
2000 |
0 |
3957 |
||
|
3500 |
2250 |
0 |
4457 |
||
|
4000 |
2550 |
0 |
4957 |
||
|
三门架 |
4500 |
2055 |
1057 |
5457 |
|
|
4800 |
2155 |
1157 |
5757 |
||
|
5000 |
2215 |
1217 |
5957 |
||
|
5500 |
2385 |
1417 |
6457 |
||
|
Table 3 (Height Choices for ES20) |
|||||
|
车型 |
门架配置 |
起升高度 |
总高(最低时) |
自由提升高度 |
总高(最高时) |
|
h3 (mm) |
h1 (mm) |
h2 (mm) |
h4 (mm) |
||
|
ES20 |
单门架 Single |
1600 |
2090 |
1600 |
2090 |
|
双门架 |
2500 |
1805 |
0 |
3020 |
|
|
3000 |
2055 |
0 |
3520 |
||
|
3500 |
2305 |
0 |
4020 |
||
|
4000 |
2555 |
0 |
4520 |
||
|
三门架 |
3500 |
1735 |
1130 |
4107 |
|
|
4000 |
1895 |
1310 |
4587 |
||
|
4500 |
2055 |
1490 |
5067 |
||
|
5000 |
2215 |
1670 |
5547 |
||
|
5500 |
2375 |
1850 |
6027 |
||
|
Table 4 (Height Choices for ESB20) |
|||||
|
车型 |
门架配置 |
起升高度 |
总高(最低时) |
自由提升高度 |
总高(最高时) |
|
h3 (mm) |
h1 (mm) |
h2 (mm) |
h4 (mm) |
||
|
ESB20 |
单门架 Single |
1600 |
2090 |
1099 |
2591 |
|
双门架 |
2500 |
1805 |
0 |
3491 |
|
|
3000 |
2055 |
0 |
3991 |
||
|
3500 |
2305 |
0 |
4491 |
||
|
4000 |
2555 |
0 |
4991 |
||
|
三门架 |
3500 |
1735 |
744 |
4491 |
|
|
4000 |
1895 |
904 |
4991 |
||
|
4500 |
2055 |
1064 |
5491 |
||
|
5000 |
2215 |
1224 |
5991 |
||
|
5500 |
2375 |
1384 |
6491 |
||
