Outstanding Performance, Extraordinary Results
*The ERT-A series reach trucks feature advanced AC drive motors and controllers, ensuring superior performance, reduced energy consumption, and lower maintenance costs.

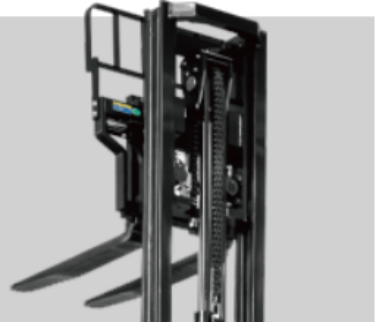

*Constructed with imported steel, the mast enables the truck to maintain excellent load-bearing capacity even at high lifting heights.
*Equipped with imported multi-way hydraulic valves, the series optimizes the driving and operating experience; this ensures smoother, more precise hydraulic control, making material handling effortless.
*Exceptional stability allows the ERT-A series reach trucks to deliver outstanding performance, even in high-intensity and demanding work environments.
*We are confident that the ERT-A series reach trucks—with their high performance, low energy consumption, robust load capacity, and superior stability—will become your trusted work partner.
Key Highlights
*Powerful Performance: Features an advanced AC drive motor and controller.
*Energy-Efficient & Low Maintenance: Reduces energy consumption and routine maintenance costs.
*High-Lift Load Capacity: Utilizes a mast made of imported steel, enhancing load-bearing performance during high-lift operations.

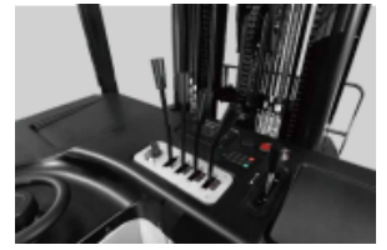

*Precise Hydraulic Control: Equipped with an imported multi-way hydraulic valve for smoother operation.

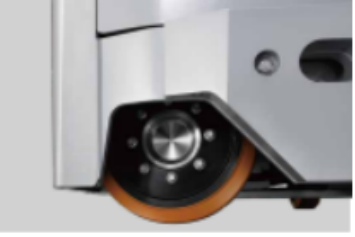

*Stable & Reliable: Suitable for high-intensity, demanding warehouse operating environments..png)
Advanced AC Control System Eliminates motor brushes and direction contactors , greatly reducing maintenance requirements..png)
Electric Hydraulic Steering Light and flexible steering, greatly improving work efficiency..png)

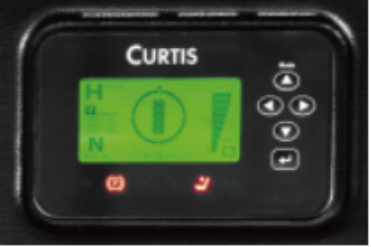

Multifunctional Display It includes functions such as battery status, operation hour meter, and fault code indication..png)

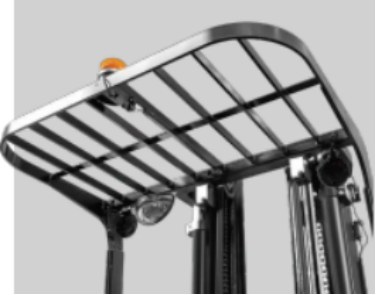

Visibility and Safety The ERT-A series forklifts adopt a combination of a wide-view mast structure and a reinforced large-view overhead guard,providing an unobstructed view whether looking horizontally or upwards. This greatly improves work safety..png)
Functionality Flexible operation, higher lifting height, stable load-bearing, solid frame design, and longer operating time. Excellent performance makes it trustworthy..png)

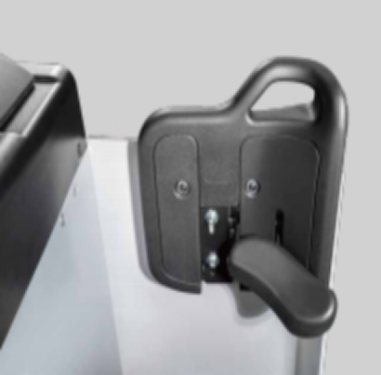

Comfort Featuring advanced ergonomic design, the FRA Series Reach Trucks ensure operators remain comfortable, safe, and highly efficient even in the most challenging working environments.
.png)
.png)

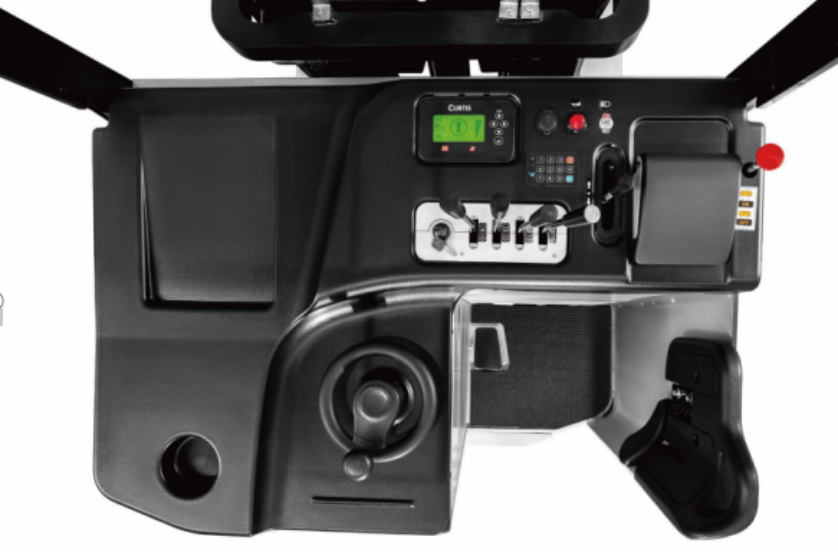

ERT-A Series Operator Platform

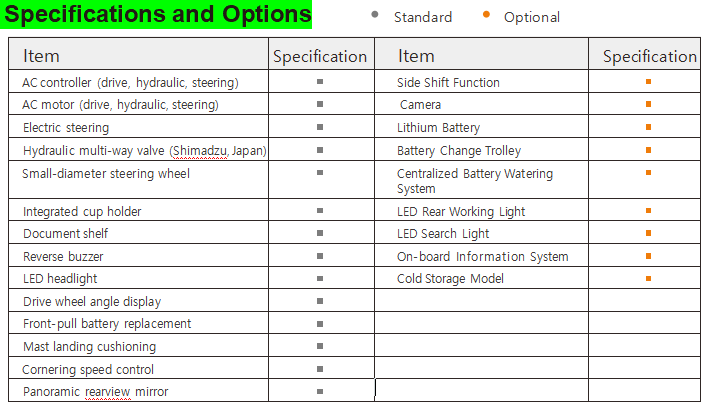

In addition to meeting normal loading and unloading requirements, the FRA Series Reach Trucks offer extensive expand-ability. Customers can select optional functions according to actual needs, based on on-site warehouse conditions such as rack type and rack height. Examples include fork side shift, fork-mounted cameras, cold storage customization, and more.
.png)
|
|
TECHNICAL DATA |
|
|
||
|
Specification |
Model |
|
ERT-A15 |
ERT-A20 |
ERT-A30 |
|
Drive Mode |
|
Electric |
Electric |
Electric |
|
|
Operation Mode |
|
Standing-on |
Standing-on |
Standing-on |
|
|
Load Capacity |
Q(kg) |
1500 |
2000 |
3000 |
|
|
Load Center Distance |
C(mm) |
500 |
500 |
500 |
|
|
Front Overhang |
x(mm) |
385/175 |
450/180 |
500/180 |
|
|
Wheelbase |
y(mm) |
1345 |
1530 |
1800 |
|
|
Dead Weight |
kg |
2400 |
2700 |
- |
|
|
Tires |
Tires |
|
PU |
PU |
PU |
|
Drive Wheel Size |
mm |
Φ330×145 |
Φ380×165 |
Φ380×165 |
|
|
Balance Wheel Size |
mm |
Φ178×73 |
Φ204×76 |
Φ204×76 |
|
|
Load Wheel Size |
mm |
Φ254×120 |
Φ267×127 |
Φ267×150 |
|
|
Front Track Width |
mm |
977 |
1063 |
1090 |
|
|
Rear Track Width |
mm |
634 |
720 |
720 |
|
|
Tilt Angle |
deg(α/β) |
3/5 |
3/5 |
3/5 |
|
|
Basic |
Overall Height (Non-lifting) |
h1(mm) |
1995 |
1995 |
2633 |
|
Free Lift Height |
h2(mm) |
105 |
110 |
115 |
|
|
Rated Lift Height |
h3(mm) |
3000 |
3000 |
5000 |
|
|
Maximum Height |
h4(mm) |
3900 |
3900 |
5998 |
|
|
Overhead Guard Height |
h6(mm) |
2250 |
2295 |
2295 |
|
|
Standing Height |
h7(mm) |
312 |
355 |
355 |
|
|
Overall Length |
L1(mm) |
2230 |
2225 |
2665 |
|
|
Distance from Fork Tip to Front |
L2(mm) |
1160 |
1325 |
1595 |
|
|
Overall Width |
b1/b2(mm) |
1081/1093 |
1190/1190 |
1240/1190 |
|
|
Fork Size |
L/e/s(mm) |
35/100/1070 |
40/120/1070 |
45/125/1070 |
|
|
Adjustable inner width of forks |
b5(mm) |
200/720 |
280/770 |
280/680 |
|
|
|
|
|
|
|
|
|
Inside Width of Legs |
b4(mm) |
739 |
805 |
805 |
|
|
Reach Distance |
L4(mm) |
560 |
630 |
680 |
|
|
Minimum Ground Clearance of Mast |
m1(mm) |
75 |
75 |
103 |
|
|
Minimum Ground Clearance of Frame |
m2(mm) |
75 |
75 |
65 |
|
|
Right angle stacking channel width1000×1200 |
Ast(mm) |
2642 |
2830 |
3096 |
|
|
Right angle stacking channel width800×1200 |
Ast(mm) |
2512 |
2711 |
2985 |
|
|
Minimum Turning Radius |
Wa(mm) |
1582.5 |
1816 |
2112 |
|
|
Body Length |
L7(mm) |
1675 |
1915 |
2235 |
|
|
Performance |
Travel Speed (Loaded/Unloaded) |
km/h |
9.5/10.5 |
10 |
9 |
|
Lifting Speed (Loaded/Unloaded) |
mm/s |
330/350 |
290/320 |
200/240 |
|
|
Lowering Speed (Loaded/Unloaded) |
mm/s |
290/266 |
345/250 |
345/250 |
|
|
Reach Speed |
mm/s |
60 |
60 |
60 |
|
|
Maximum climbing speed KB≤1.5km/h |
% |
10/14.3 |
4/7 |
4/7 |
|
|
Braking Type |
|
Mechanical |
Mechanical |
Mechanical |
|
|
Motor |
Drive Motor Power KB60′ |
kw |
6 |
6 |
6 |
|
Lift Motor Power 15% ED |
kw |
11 |
11 |
11 |
|
|
Steering Motor Power |
kw |
0.3 |
0.4 |
0.6 |
|
|
Voltage/Capacity |
V/Ah |
48/280 |
48/350 |
48/350 Lithium |
|
|
Battery Weight |
kg |
450 |
530 |
635 |
|
|
Battery Size |
mm |
956×375×570 |
956×395×570 |
1116×395×570 |
|
|
Mast Parameter Table |
|||||||||||
|
ERT-A15 2-stage wide-view mast |
|||||||||||
|
Lifting height |
h3 (mm) |
2700 |
3000 |
3300 |
3500 |
3700 |
4000 |
4500 |
5000 |
|
|
|
Mast closed height |
h1 (mm) |
1845 |
1995 |
2145 |
2245 |
2345 |
2545 |
2795 |
3045 |
|
|
|
Mast fully extended height |
h4 (mm) |
3600 |
3900 |
4200 |
4400 |
4600 |
4900 |
5400 |
5900 |
|
|
|
Free lifting height |
h2 (mm) |
105 |
105 |
105 |
105 |
105 |
105 |
105 |
105 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ERT-A15 3-stage fully free mast |
|||||||||||
|
Lifting height |
h3 (mm) |
3600 |
4000 |
4350 |
4800 |
5000 |
5500 |
6000 |
6500 |
7000 |
7500 |
|
Mast closed height |
h1 (mm) |
1745 |
1870 |
1995 |
2145 |
2245 |
2410 |
2595 |
2810 |
3030 |
3190 |
|
Mast fully extended height |
h4 (mm) |
4500 |
4900 |
5250 |
5700 |
5900 |
6400 |
6900 |
7400 |
7900 |
8400 |
|
Free lifting height |
h2 (mm) |
810 |
935 |
1060 |
1210 |
1310 |
1475 |
1660 |
1875 |
2095 |
2255 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ERT-A20 2-stage wide-view mast |
|||||||||||
|
Lifting height |
h3 (mm) |
2700 |
3000 |
3300 |
3500 |
3700 |
4000 |
4500 |
5000 |
|
|
|
Mast closed height |
h1 (mm) |
1845 |
1995 |
2145 |
2245 |
2345 |
2545 |
2795 |
3045 |
|
|
|
Mast fully extended height |
h4 (mm) |
3600 |
3900 |
4200 |
4400 |
4600 |
4900 |
5400 |
5900 |
|
|
|
Free lifting height |
h2 (mm) |
110 |
110 |
110 |
110 |
110 |
110 |
110 |
110 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ERT-A20 3-stage fully free mast |
|||||||||||
|
Lifting height |
h3 (mm) |
3600 |
4000 |
4350 |
4800 |
5000 |
5500 |
6000 |
6500 |
7000 |
7500 |
|
Mast closed height |
h1 (mm) |
1880 |
2013 |
2130 |
2280 |
2347 |
2513 |
2680 |
2847 |
3013 |
3180 |
|
Mast fully extended height |
h4 (mm) |
4515 |
4915 |
5265 |
5715 |
5915 |
6415 |
6915 |
7415 |
7915 |
8415 |
|
Free lifting height |
h2 (mm) |
925 |
1058 |
1175 |
1325 |
1392 |
1558 |
1725 |
1892 |
2058 |
2225 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ERT-A30 2-stage wide-view mast |
|||||||||||
|
Lifting height |
h3 (mm) |
2700 |
3000 |
3300 |
3500 |
3700 |
4000 |
4500 |
5000 |
|
|
|
Mast closed height |
h1 (mm) |
1900 |
2050 |
2200 |
2300 |
2400 |
2600 |
2850 |
3100 |
|
|
|
Mast fully extended height |
h4 (mm) |
3650 |
3950 |
4250 |
4450 |
4650 |
4950 |
5450 |
5950 |
|
|
|
Free lifting height |
h2 (mm) |
115 |
115 |
115 |
115 |
115 |
115 |
115 |
115 |
|
|

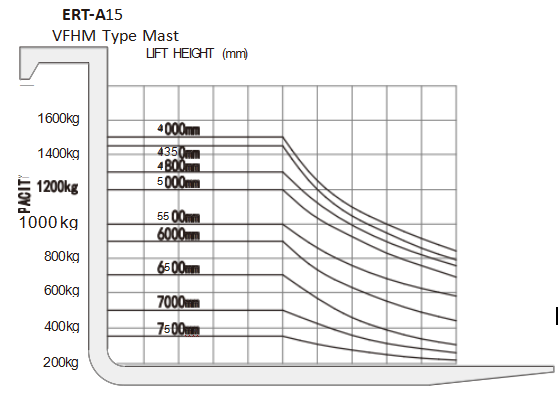

Load Curve Chart
.png)
