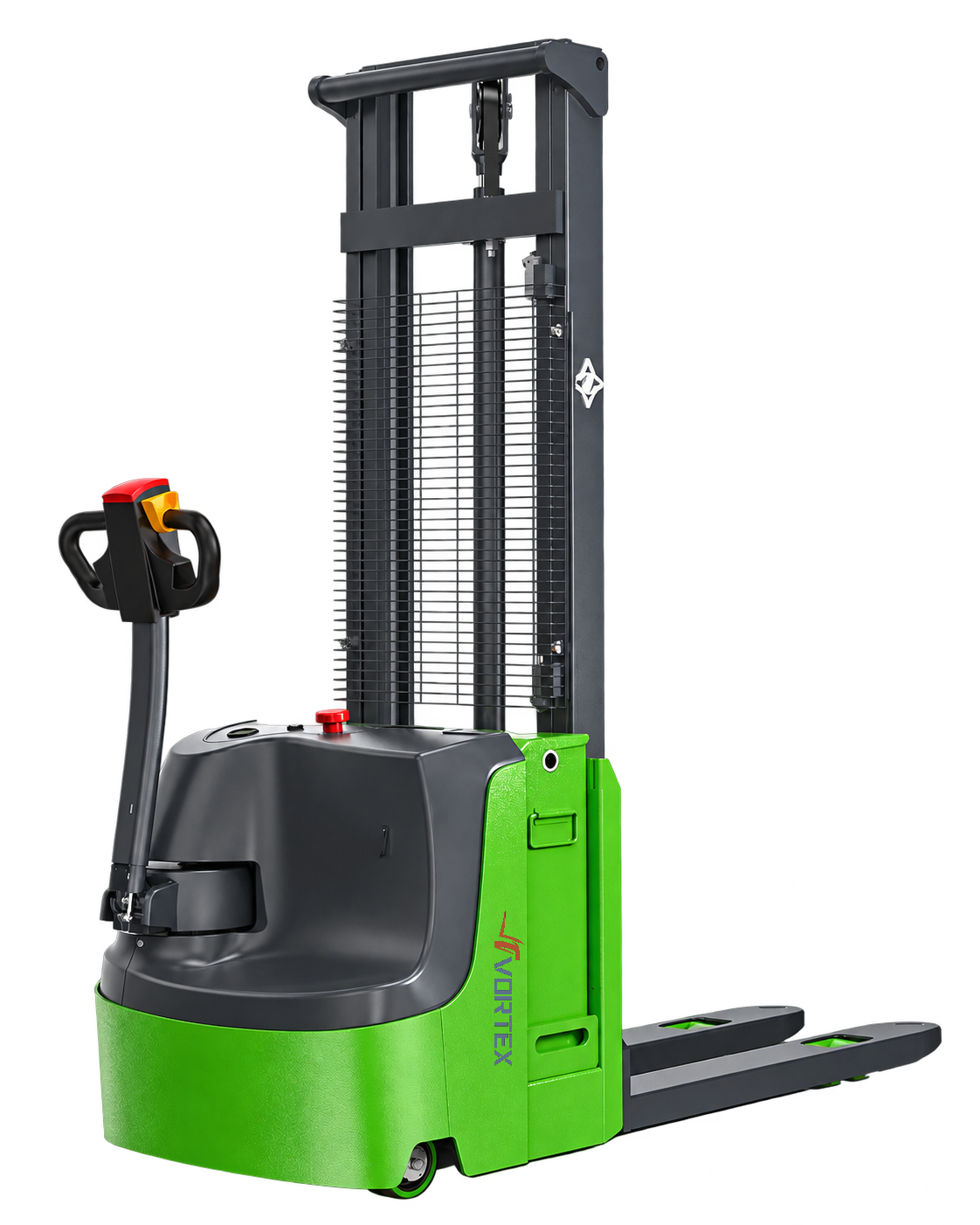

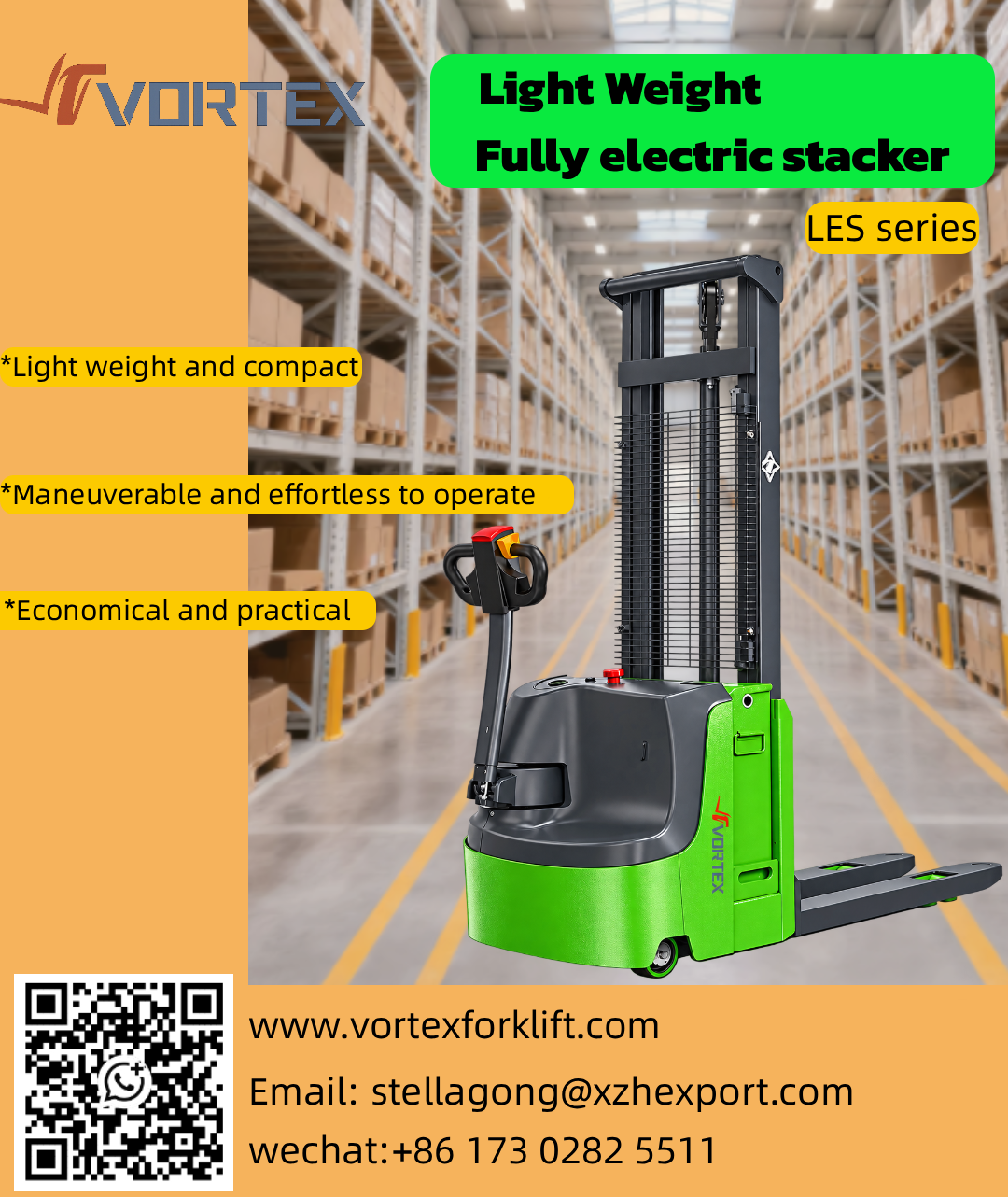

The Vortex LES10-12 series light-duty fully electric stacker features a compact chassis design combined with a wide-view mast, intelligent sleep mode, high/low-speed switching, and an upright slow-speed mode, enabling flexible, efficient, and safe warehouse handling and stacking operations. It is ideal for small-to-medium warehouses, production workshops, and space-constrained work environments.
The Vortex LES10-15 series fully electric walkie stacker utilizes a high-efficiency electric drive system paired with a high-capacity battery, a vertical drive unit, and a side-extraction battery design, balancing powerful performance, operational flexibility, and ease of maintenance. It is suitable for factory warehouses, logistics centers, and medium-to-high frequency pallet handling and stacking tasks.
Vortex LES 10-12 Key Advantages:
* Compact chassis for agile maneuvering

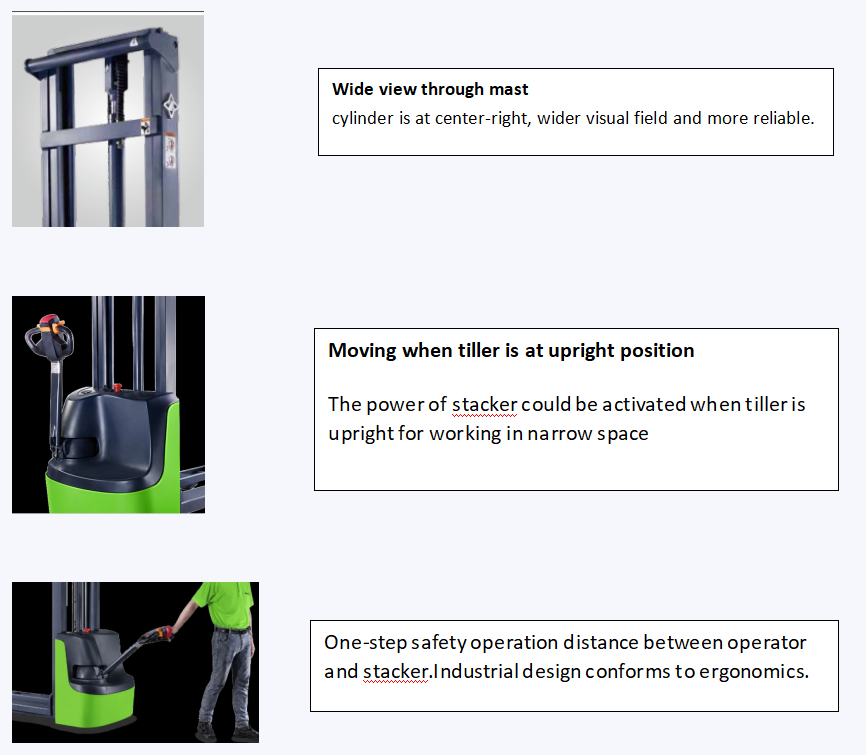

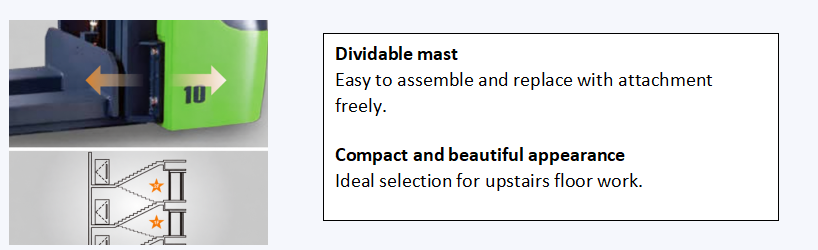

* Wide-view mast for precise stacking

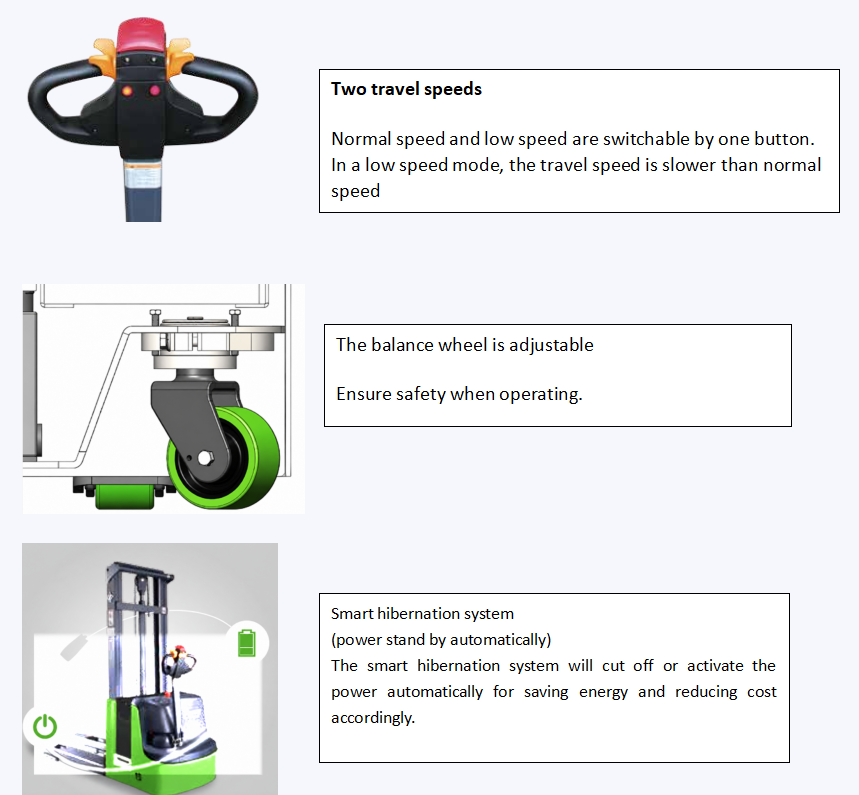

* High/low-speed control for easy operation
* Intelligent energy saving for cost-efficiency
* Stable structure and easy maintenance
**High Load Capacity · Stable & Efficient · Long-Lasting Power**
----------------------------------------------------------------------------------------------------------------------
Vortex LES 10-15 Key Advantages
* 1.5-ton load capacity with powerful performance
* High-capacity battery for long-lasting power
* Upright slow-speed mode for agile control
* Vertical drive system for easy maintenance

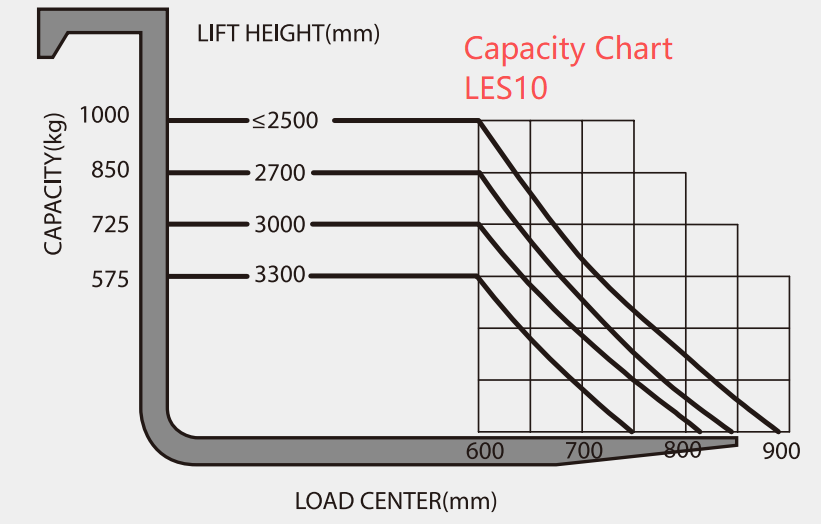

* Electric lifting for stability and efficiency.png)

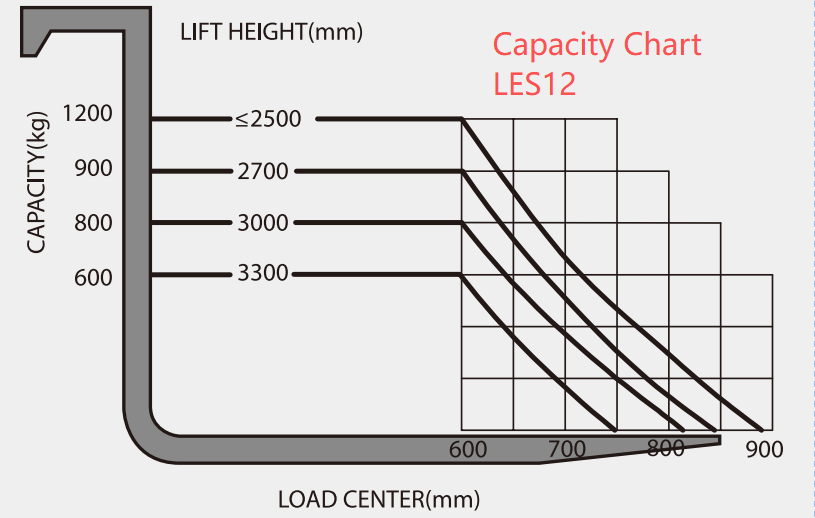

.png)

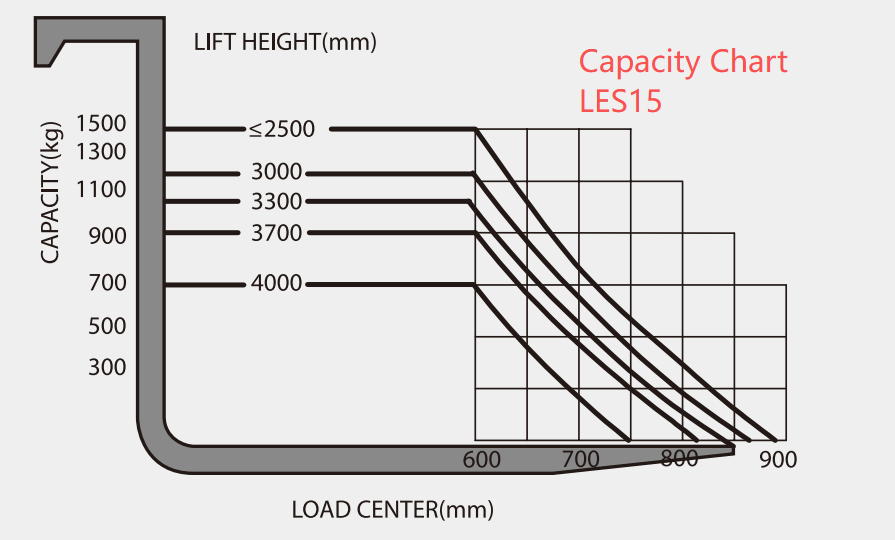

.png)
|
|
CONFIGURATIONS AND PARAMETERS |
|
|||
|
Identification |
Product model |
|
|
LES10/12 |
LES15 |
|
Load capacity |
Q |
kg |
1000/1200 |
1500 |
|
|
Load center distance |
C |
mm |
600 |
600 |
|
|
Wheelbase |
Y |
mm |
1202 |
1375 |
|
|
Weight(without battery) |
|
kg |
494 |
971 |
|
|
Dimension |
Overall height with mast closed |
h1 |
mm |
Table |
Table |
|
Free lift |
h2 |
mm |
|||
|
Lifting height |
h3 |
mm |
|||
|
Height with mast extended |
h4 |
mm |
|||
|
Forks height, lowered |
h5 |
mm |
86 |
86 |
|
|
Height of handle in drive position (Max/Min) |
h6 |
mm |
1305/715 |
1305/715 |
|
|
Overall length |
L1 |
mm |
1756 |
2020 |
|
|
Length to face of forks |
L2 |
mm |
606 |
878.3 |
|
|
Overall width |
b1 |
mm |
850 |
850 |
|
|
Fork dimensions |
s/e/l |
mm |
160/61/1150 |
180/66/1150 |
|
|
Overall fork width |
b3 |
mm |
560 |
570 |
|
|
Min. ground clearance |
m |
mm |
25 |
20 |
|
|
Aisle width for pallets 1000x1200 lengthways |
Ast |
mm |
2192 |
2487 |
|
|
Turning radius |
Wa |
mm |
1400 |
1586 |
|
|
Performance |
Travel speed loaded/unloaded |
|
km/h |
4/4.5 |
4/4.5 |
|
Lift speed loaded/unloaded |
|
mm/s |
120/200 |
120/200 |
|
|
Lowering speed loaded/unloaded |
|
mm/s |
80/90 |
80/90 |
|
|
Max gradeability loaded/unloaded |
|
% |
5/8 |
5/10 |
|
|
Motor |
Drive motor rating |
|
kw |
0.65 |
1.5 |
|
Lift motor rating |
|
kw |
2.2 |
2.2 |
|
|
Battery voltage / nominal capacity |
|
V/Ah |
24/80 |
24/210 |
|
|
Battery weight |
|
kg |
27x2 |
200 |
|
|
others |
Type of drive control |
|
|
MOSFET Control |
MOSFET Control |
|
Noise level at operator’s ear |
|
dB(A) |
<70 |
<70 |
|
|
Table(Height Choices) |
||||
|
Mast type |
Lift |
Height with |
Height with mast |
|
|
LES 10/12 |
Dual |
2500 |
1750 |
2957 |
|
3000 |
2000 |
3457 |
||
|
3300 |
2150 |
3757 |
||
|
LES 15 |
Dual |
2500 |
1755 |
2977 |
|
3000 |
2005 |
3477 |
||
|
3300 |
2155 |
3777 |
||
|
3500 |
2255 |
3977 |
||
