Rear Articulated Off-Road Vehicle Manufacturer

The rear-articulated rough terrain forklift is designed for demanding outdoor material handling applications. Featuring articulated steering, strong 4WD traction, high ground clearance and heavy-duty off-road tires, it provides excellent maneuverability and reliable performance on muddy, gravel, uneven and sloped terrain.

3T 后铰接（新款）.png

Rear-Articulated Rough Terrain Forklift

The rear-articulated rough terrain forklift is specifically developed for outdoor material handling in challenging working environments.

Unlike conventional forklifts with standard rear-wheel steering, the articulated steering system allows the rear section of the machine to pivot during turning. This design provides a compact turning radius, excellent maneuverability and improved adaptability on uneven terrain.

Combined with a heavy-duty chassis, high ground clearance, off-road pneumatic tires and a powerful diesel engine, the forklift delivers reliable traction and stable performance on gravel roads, muddy ground, construction sites, farms and other unpaved surfaces.

For more demanding applications, the 4WD system distributes driving force to multiple wheels, helping reduce wheel slip and improving climbing and off-road capability.

The machine can be equipped with different mast heights, forks and attachments to meet various material handling requirements.

“Key Features”

*Rear-Articulated Steering – Provides excellent maneuverability and a compact turning radius in confined outdoor working areas.

*4WD Traction – Improves traction on mud, gravel, loose soil and uneven surfaces.

*High Ground Clearance – Helps the forklift pass over rough ground, potholes and obstacles.

*Heavy-Duty Off-Road Tires – Designed for improved grip and durability in outdoor conditions.

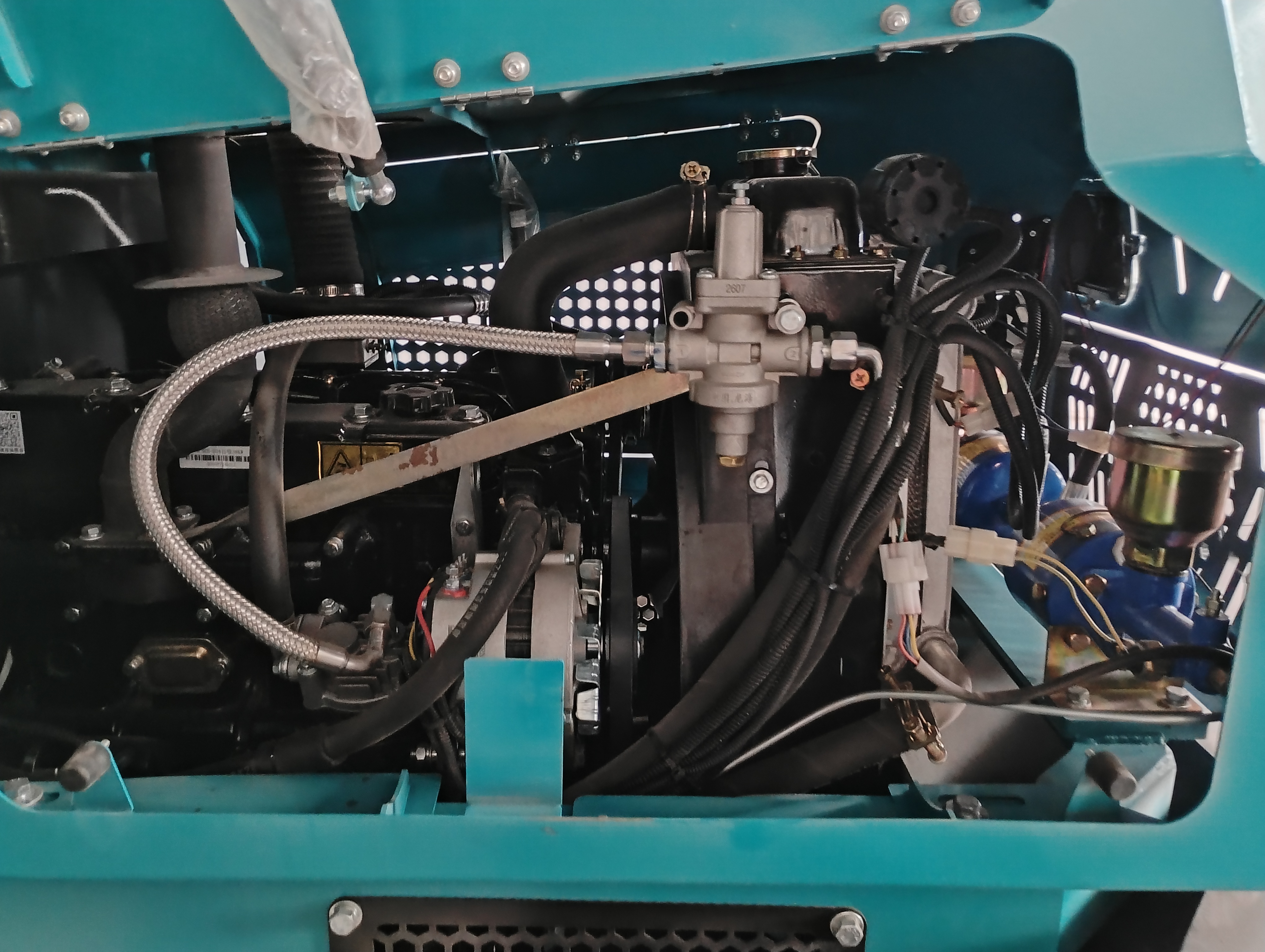

*Powerful Diesel Engine – Provides strong low-speed torque for lifting, climbing and heavy-duty operation.

*Strong Chassis Structure – Built for demanding construction, agricultural and industrial applications.

*Wide-View Mast – Improves operator visibility during loading, unloading and stacking.

*Good Gradeability – Suitable for slopes and uneven outdoor worksites.

*Multiple Mast Options – Different lifting heights and free-lift configurations are available.

*Optional Attachments – Side shifter, fork positioner, bale clamp, bucket, rotator and other attachments can be configured.

PARAMETERS	SPECIFICATION (new)
Model	CPCD25	CPCD35	CPCD50	CPCD70	CPCD80
Rated load	2500 kg	3500 kg	5000 kg	7000 kg	8000 kg
Load center distance	500 mm	500 mm	500 mm	500 mm	500 mm
Lifting height	3000 mm	3000 mm	3000 mm	4000 mm	4000 mm
Full height of gantry	2250 mm	2250 mm	2350 mm	2700 mm	0000 mm
Full height (roof protection frame)	2250 mm	2250 mm	2480 mm	2720 mm	2720 mm
Full length (without fork)	3150 mm	3400 mm	3800 mm	4300 mm	4350 mm
Full width	1600 mm	1800 mm	2100 mm	2300 mm	2400 mm
Wheelbase	1900 mm	2050 mm	2280 mm	2450 mm	2450 mm
Towing pin height	620 mm	620 mm	820 mm	800 mm	800
Minimum ground clearance (at gantry)	260 mm	260 mm	260 mm	260 mm	260 mm
Fork pitch outside (maximum/minimum)	1110 / 240 mm	1110 / 240 mm	1350 / 300 mm	1350 / 300 mm	1350 / 300 mm
Track width (front/rear)	1500 mm	1500 mm	1700 mm	1800 / 1800 mm	1770 mm
Outside of minimum turning radius	3600 mm	3600 mm	4600 mm	5300 mm	5100 mm
Inside of minimum turning radius	2000 mm	1800 mm	2500 mm	3000 mm	2700 mm
Gantry inclination (front/rear)	Front 10° / Rear 12°	Front 10° / Rear 12°	Front 10° / Rear 12°	Front 10° / Rear 12°	Front 10° / Rear 12°
Fork size	1220 × 45 × 120 mm	1220 × 45 × 120 mm	1220 × 50 × 150 mm	1520 × 65 × 150 mm	1520 × 65 × 150 mm
Maximum driving speed (full load/no load)	30 / 35 km/h	30 / 35 km/h	35 / 40 km/h	35 / 45 km/h	35 / 40 km/h
Total weight	3930 kg	4900 kg	7000 kg	9000 kg	8980 kg
Width of door lever	140 mm	160 mm	180 mm	180 mm	220 mm
Tire type	Pneumatic Tire	Pneumatic Tire	Pneumatic Tire	Pneumatic Tire	Pneumatic Tire
Front tire	20.5/70-16	20.5/70-16	16/70-24	17.5-25 Tire	12.0-24 Tire dual row wheels
Rear tire	20.5/70-16	20.5/70-16	16/70-24	17.5-25 Tire	12.0-24 Tire
Service brake	Hydraulic brake	Hydraulic brake	Hydraulic brake	Hydraulic brake	Hydraulic brake
Parking brake	Mechanical brake	Mechanical brake	Disc Brake	Mechanical brake	Mechanical brake
Engine model	Weifang 490	Weifang 490	Weifang 4102	Xichai 4102 T	Xichai 4102 T
Torque converter model	265	265	Jinlite 300	315	315
Engine power	42 kW	42 kW	78 kW	85 kW	85 kW
Number of transmission shifts	2Front 2Rear	2 Front / 2 Rear	2Front 2Rear	Front 2, Rear 2	Front 2, Rear 2

			Optional Configurations

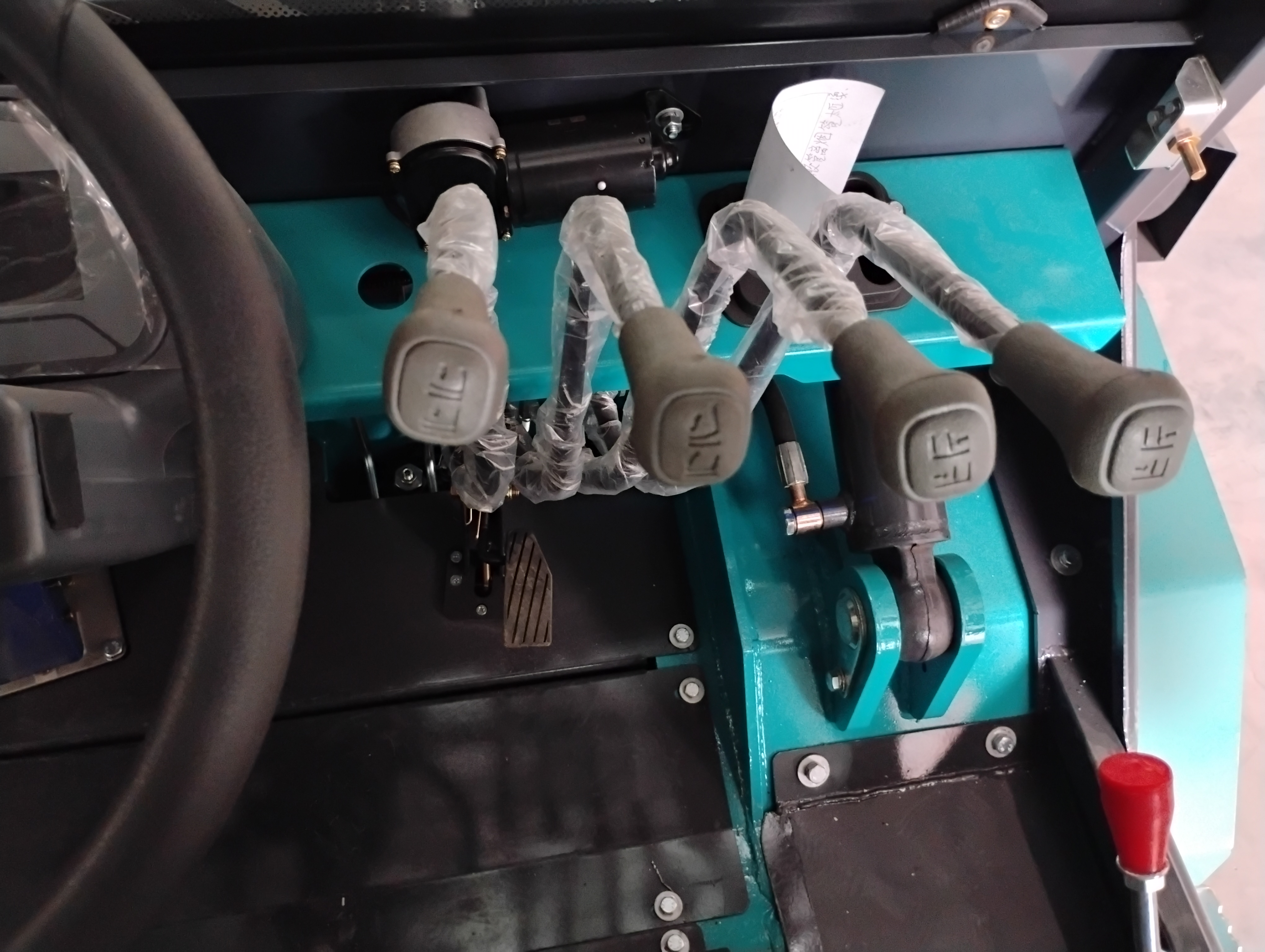

Tires	Side Shift	Fire Extinguisher / Breaker Hammer	Multi-way Valve (with Piping) / Quick Coupler	One-button Electronic Engine Shutoff	Air Preheater

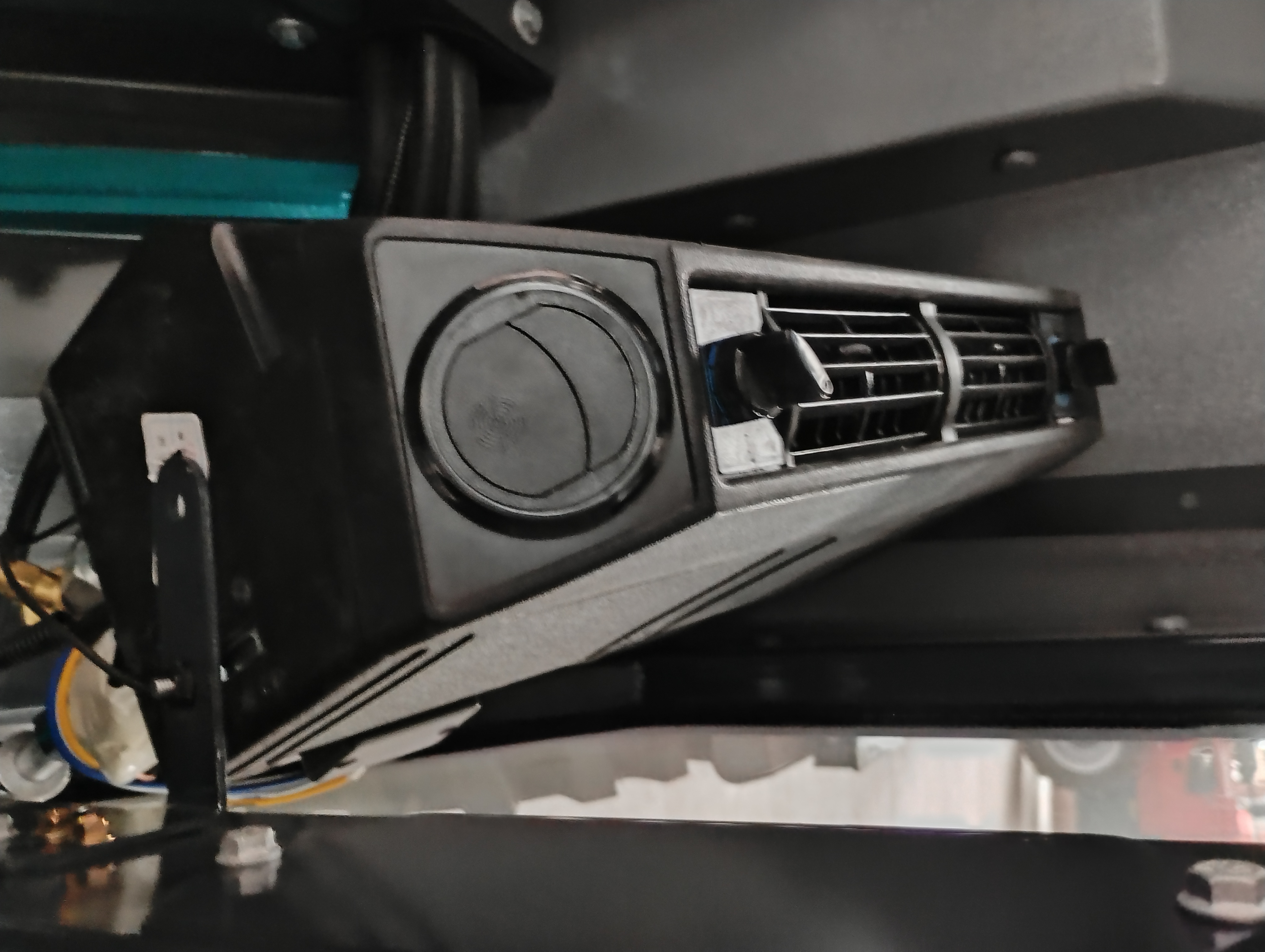

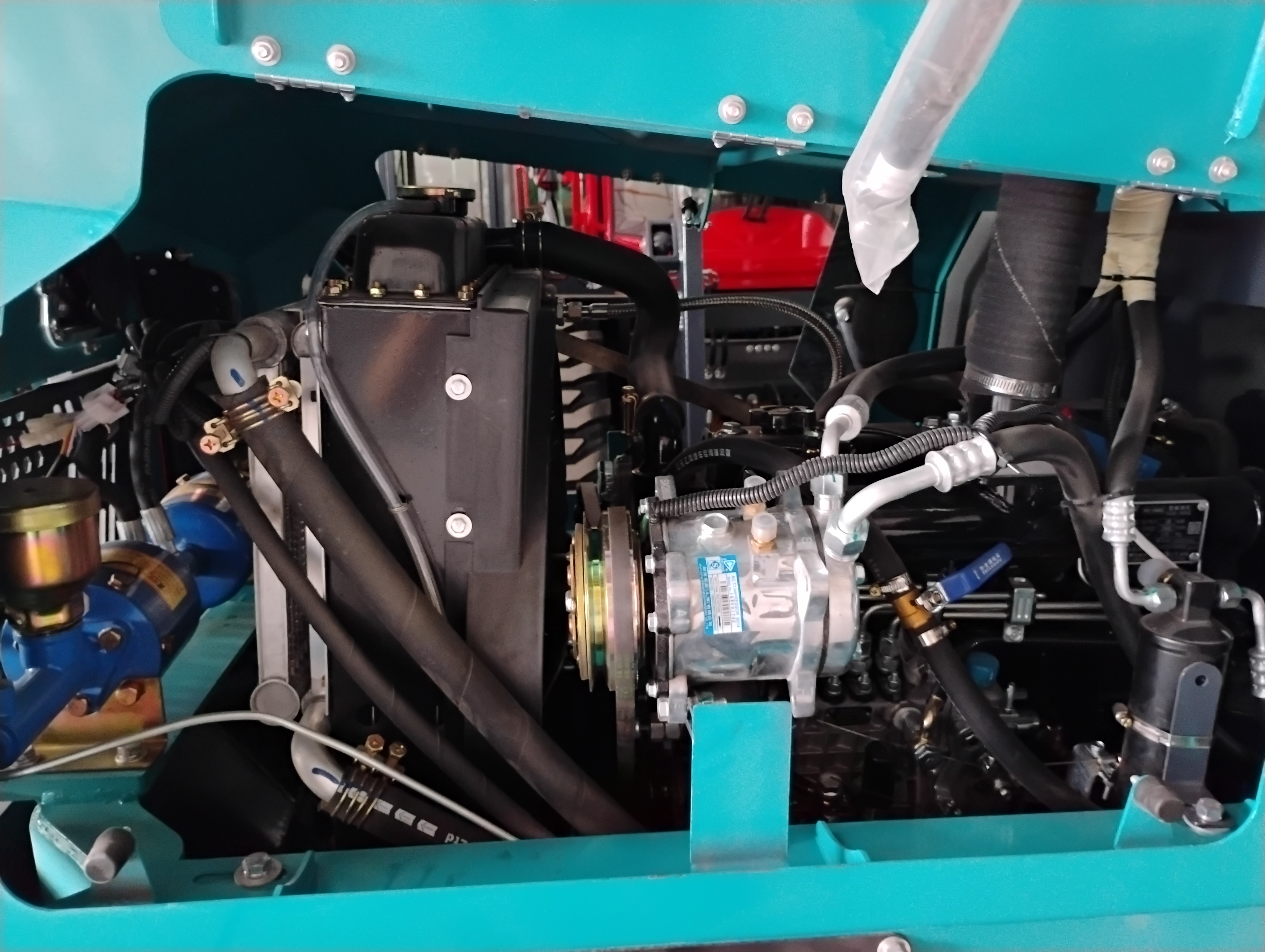

Fork Length	Side-shift Fork Positioner	USB Charging Port	Rotator	Basic Cab	Heater & A/C
Rearview Camera	Cigarette Lighter	Rotator with Hold-down	Basic Cab with Front & Rear Glass	Fork Extensions	Various Attachments

2.5t, 3.5t, 5t, 7t, 8t Rear-Articulated Off-Road Forklift
