1.4T Narrow-Aisle High-Level Order Picker, 12.5m Lift Height
HLP-14T 1.36 Ton High Level Order Picker | 6-12.5m Lifting Height
HLP-14T is a 1.36 ton electric high-level order picker designed for efficient picking and material handling in warehouses and distribution centers. With lifting heights from 6,000 mm to 12,500 mm, a 48V lithium battery system, powerful AC motors and a standing operator platform, it provides reliable performance for high-rack order picking applications.
*HLP-14T electric order picker is designed for high-level picking and material handling applications in warehouses, logistics centers and distribution facilities.
*With a rated load capacity of 1,360 kg and lifting heights ranging from 6,000 mm to 12,500 mm, the LHEA14 enables operators to efficiently access goods stored at different rack levels.
*The truck is equipped with a 48V / 460Ah lithium battery, an 8 kW driving motor and an 11 kW lifting motor, providing stable driving and lifting performance for demanding warehouse operations.

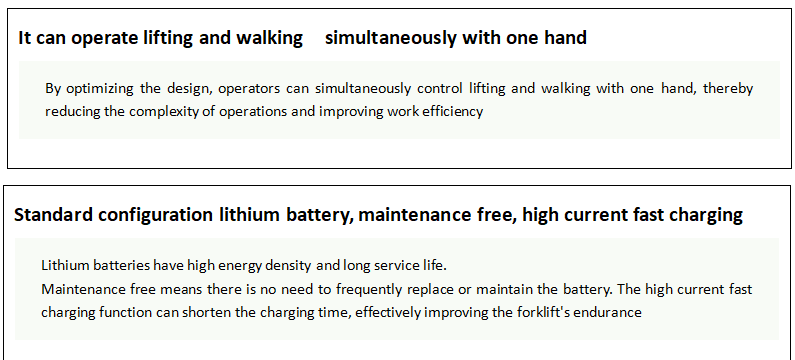

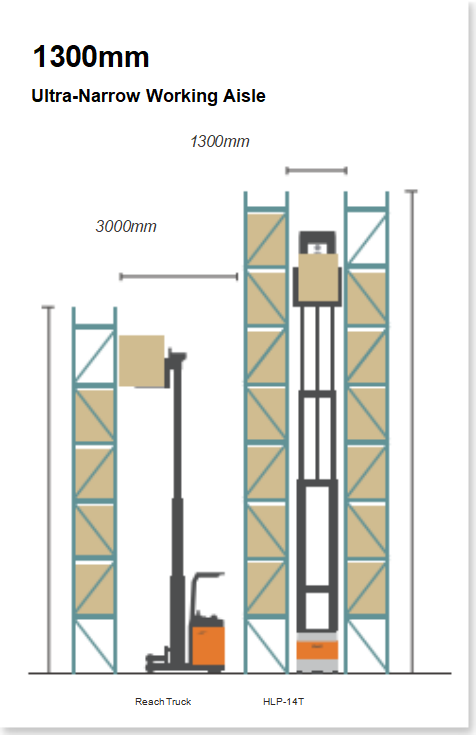

*Its standing operation design provides convenient access for frequent picking tasks, while the adjustable fork width allows the truck to handle different pallet and load configurations..png)
.png)

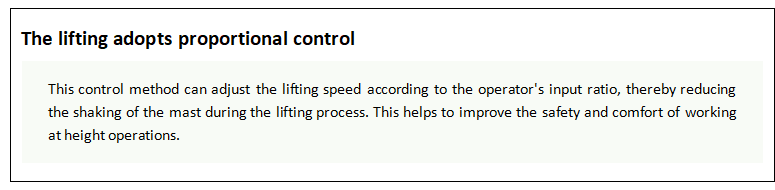

.png)

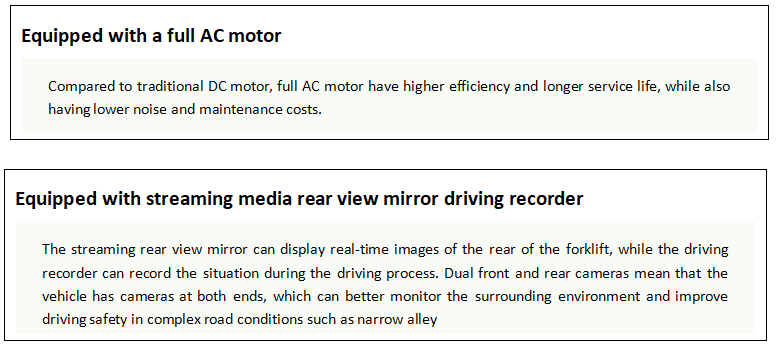

.png)
The HLP-14T high-level order picker is suitable for:
|
Specifications |
|||
|
Characteristics |
Product Model |
|
HLP-14T |
|
Drive type |
|
Electric |
|
|
Operation |
|
Standing |
|
|
Load capacity |
Q kg |
1360 |
|
|
Load center |
C mm |
600 |
|
|
Front overhang |
X mm |
193 |
|
|
Wheelbase |
Y mm |
1632 |
|
|
Self weight (without battery) |
kg |
4000 |
|
|
Wheel |
Tyre |
|
PU wheel |
|
Driving wheel size |
mm |
Φ343×135 |
|
|
Load wheel size |
mm |
Φ150×100 |
|
|
Wheels qty (front/rear) (x=driving wheel) |
|
1x/4 |
|
|
Rear wheel distance |
b11mm |
973 |
|
|
Basic dimensions |
Mast closed height |
h1mm |
2784-5221 |
|
Lifting height |
h3mm |
6000-12500 |
|
|
Mast extended height |
h4mm |
8341-14841 |
|
|
Overhead guard height |
h6mm |
2342 |
|
|
Platform height (lowered) |
h7mm |
208 |
|
|
Platform height (extended) |
h12mm |
h3+208 |
|
|
Fork lowered height |
h13mm |
75 |
|
|
Overall length |
l1mm |
3147 |
|
|
Distance from rear chassis to fork face |
l2mm |
2077 |
|
|
Overall width |
b2mm |
1075 |
|
|
Fork dimensions |
s/e/lmm |
50/100/1070 |
|
|
Fork width |
b3mm |
610-760 Adjustable |
|
|
Minimum clearance height |
Mmm |
50 |
|
|
Working aisle at right angle |
Astmm |
3300 |
|
|
Working aisle at right angle |
Astmm |
3600 |
|
|
Turning radius |
Wamm |
1885 |
|
|
Performance |
Driving speed loaded/unloaded |
km/h |
10/10 |
|
Lifting speed loaded/unloaded |
mm/s |
250/300 |
|
|
Lowering speed loaded/unloaded |
mm/s |
300/250 |
|
|
Maximum gradeability loaded/unloaded |
% |
5/10 |
|
|
Brake |
|
Electromagnetic |
|
|
Motor |
Driving motor |
kw |
8 |
|
Lifting motor |
kw |
11 |
|
|
Battery voltage/capacity |
V/Ah |
48/460 lithium |
|
|
Battery weight |
kg |
127 |
|
|
Other |
Control |
|
Mosfet control |
|
Noise |
dB(A) |
<70 |
|
MEET DIFFERENT NEEDS
In order to meet the needs of picking work conditions under different conditions, the LHEA14 is also equipped with a variety of forklift models with different heights of the mast, so that the user can choose the most suitable forklift model according to the actual working conditions.
|
HLP-14T 1.4t order picker mast information |
||||||||||||
|
Triple mast |
||||||||||||
|
• Model |
HLP-14T |
6000 |
6500 |
7000 |
7500 |
8000 |
8500 |
9000 |
9500 |
10500 |
11500 |
12500 |
|
• Lifting height |
h3(mm) |
6000 |
6500 |
7000 |
7500 |
8000 |
8500 |
9000 |
9500 |
10500 |
11500 |
12500 |
|
• Maximum extension height |
h4(mm) |
8341 |
8841 |
9341 |
9841 |
10341 |
10841 |
11341 |
11841 |
12841 |
13841 |
14841 |
|
• Closed mast height |
h1(mm) |
2784 |
2951 |
3118 |
3284 |
3451 |
3621 |
3821 |
3988 |
4421 |
4821 |
5221 |
|
• Free lifting height |
h2(mm) |
442 |
610 |
776 |
942 |
1110 |
1280 |
1480 |
1646 |
2080 |
2480 |
2880 |
