VORTEX ERT-B Series – 2 Ton Electric Reach Truck
**High Lifting Performance | Narrow Aisle Operation | Safe and Comfortable Handling**
Vortex ERT-B Series Electric Reach Truck is a high-performance, sit-down electric forklift designed for high-density warehousing and efficient material handling. With a rated load capacity of 2,000 kg and a maximum lifting height of up to 12 meters, depending on the mast configuration, the FRB Series helps businesses maximize vertical storage space and improve warehouse productivity.
.png)
###Key Features & Benefits
**1. High Lifting Capacity**
The ERT-B Series offers reliable lifting performance for high-rack storage applications. Its robust mast structure supports precise pallet positioning and efficient stacking at elevated heights.
**2. Efficient Narrow Aisle Operation**
With a compact design and a working aisle requirement of approximately 3 meters, the FRB Series is well suited for warehouses where space utilization is essential.
**3. Advanced Electric Drive System**
The AC drive system provides smooth acceleration, responsive control, and reduced maintenance requirements, helping improve daily operating efficiency.

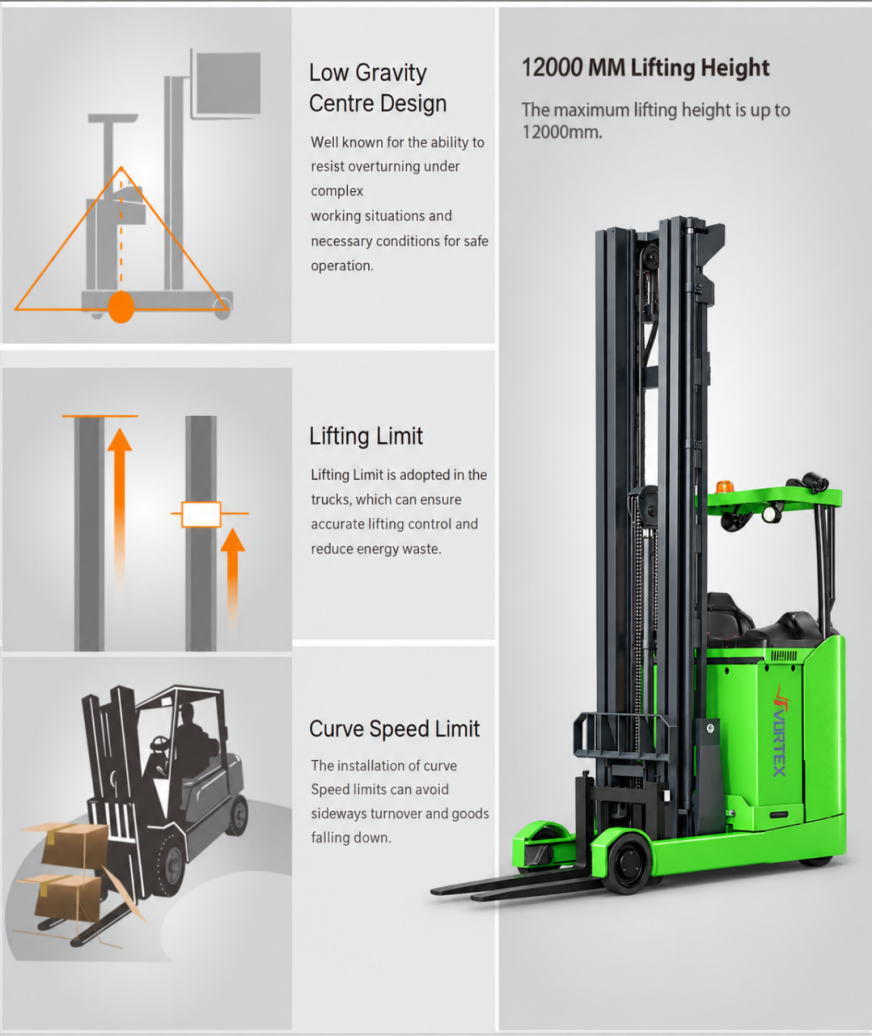

**4. Enhanced Stability and Safety**
A low center of gravity, automatic cornering speed control, and lifting height limitation functions help support stable operation and safer pallet handling.
**5. Ergonomic Operator Comfort**
The sit-down operator compartment features an adjustable seat, spacious legroom, electric power steering, and a wide-view overhead guard for greater comfort and visibility during extended working hours.
**6. Convenient Maintenance**
The accessible battery compartment facilitates routine maintenance and battery replacement, helping reduce service time.
### Typical Applications
Suitable for high-bay warehouses, logistics and distribution centers, manufacturing facilities, food and beverage storage, electronic components, and other palletized goods handling operations.
### Optimize Your Warehouse with VORTEX
The VORTEX ERT-B Series combines high lifting capability, reliable electric performance, and operator-focused design to support efficient warehouse operations.
|
Technical Data For ETR-B20 Electric Reach Truck Series |
||||
|
Identification |
product model |
|
ETR-B20 (4500–9000mm) |
ETR-B20 (9500–12000mm) |
|
Loading capacity |
kg |
2000 |
2000 |
|
|
Load center |
mm |
600 |
600 |
|
|
Front overhang |
mm |
327 |
340 |
|
|
wheelbase |
mm |
1520 |
1600 |
|
|
Truck weight(without battery) |
kg |
2932 |
3792 |
|
|
Dimension |
Height, mast lowered |
|
Table |
Table |
|
Free lift |
|
Table |
Table |
|
|
Lifting height |
|
Table |
Table |
|
|
Height, mast extended |
|
Table |
Table |
|
|
Height of overhead guard |
mm |
2190 |
2190 |
|
|
overall length |
mm |
2593 |
2673 |
|
|
overall width |
mm |
1292 |
1430 |
|
|
Fork dimensions (Forging) |
mm |
1150×100×40 |
1150×100×40 |
|
|
Adjustable Fork width |
mm |
200-750 |
200-750 |
|
|
Reach distance |
mm |
545/580 |
558 |
|
|
Minimum ground clearance |
|
40 |
40 |
|
|

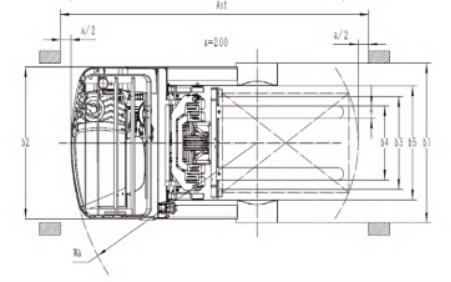

Aisle width for pallets 1000x1200 (fork along side 1000) |
mm |
2872 |
2942 |
|
|
Aisle width for pallets 800x1200 (fork along side 1200) |
mm |
2930 |
2998 |
|
|
Turning radius |
mm |
1770 |
1850 |
|
|
Fork tilting degree(forward/backward) |
° |
2/4 |
2/4 |
|
|
Performance |
Travel speed loaded/unloaded |
km/h |
8.5/9 |
8.5/9 |
|
Lift speed loaded/unloaded |
mm/s |
350/500 |
350/500 |
|
|
Lowering speed loaded/unloaded |
mm/s |
550/300 |
550/300 |
|
|
Max gradeability loaded/unloaded |
% |
10/15 |
10/15 |
|
|
Motor |
Drive motor rating |
kW |
8 |
8 |
|
Lift motor rating |
kW |
15 |
15 |
|
|
Lead-acid battery voltage/ nominal capacity |
V/Ah |
48/600 |
48/700 |
|
|
Battery weight |
kg |
1008 |
1008 |
|
|
Options |
Type of drive control |
|
MOSFET |
MOSFET |
|

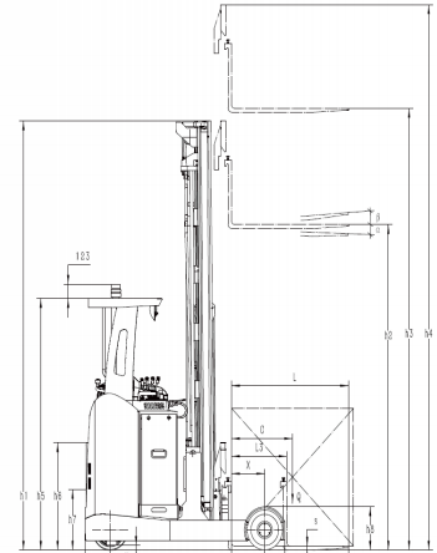

Table (Height choices) |
|||||
|
product |
Mast |
Lifting height |
Height with |
Free lift |
Height with |
|
|
|
h3 (mm) |
h1 (mm) |
h2 (mm) |
h4 (mm) |
|
ETR-B20 |
Triple |
4000 |
1955 |
1160 |
4855 |
|
4500 |
2115 |
1320 |
5355 |
||
|
5000 |
2285 |
1490 |
5855 |
||
|
5500 |
2455 |
1660 |
6355 |
||
|
6000 |
2615 |
1820 |
6855 |
||
|
6500 |
2805 |
2010 |
7355 |
||
|
7000 |
2975 |
2180 |
7855 |
||
|
7500 |
3215 |
2420 |
8355 |
||
|
8000 |
3375 |
2580 |
8855 |
||
|
8500 |
3575 |
2780 |
9355 |
||
|
9000 |
3735 |
2940 |
9855 |
||
|
9500 |
4000 |
3205 |
10355 |
||
|
10000 |
4270 |
3475 |
10855 |
||
|
10500 |
4440 |
3645 |
11355 |
||
|
11000 |
4710 |
3915 |
11855 |
||
|
11500 |
4880 |
4085 |
12355 |
||
|
12000 |
5050 |
4255 |
12855 |
||
