Vortex HLP-12T ELECTRIC Order Picker

Vortex HLP-12T Electric High-Level Order Picker

High-Level Picking | Very Narrow Aisle Operation | Safe and Efficient Material Handling

It's designed for efficient order picking and material handling in high-density warehouses. With a rated load capacity of 1,200 kg, lifting heights of up to 12.5 meters on selected configurations, and a minimum working aisle width of 1.3 meters, it offers an effective solution for high-rack storage and narrow aisle warehouse operations

Vortex HLP-12T combines high lifting capability, narrow aisle maneuverability, and operator-friendly controls to help businesses achieve efficient and reliable high-level order picking.

The lifting adopts proportional control This control method can adjust the lifting speed according to the operator's input ratio, thereby reducing the shaking of the mast during the lifting process. This helps to improve the safety and comfort of working at height operations

Optional bidirectional driving operation device The bidirectional driving operation device allows the forklift to perform effective operations both forward and backward. This can improve the operator's field of vision, enabling them to better observe the surrounding environment and thus enhance

operational efficiency

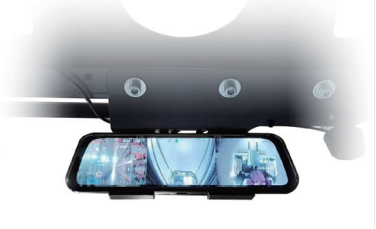

Equipped with streaming media rear view mirror driving recorder
A streaming rear-view mirror displays real-time images of the area behind the vehicle,while a dash-cam records events during the drive.
A dual-camera setup—featuring cameras at both the front and rear—allows for better monitoring of the surroundings, enhancing driving safety in complex conditions such as narrow lanes.

1. Efficient High-Level Order Picking

Designed for high-rack warehouse operations, the LHE112 allows operators to access elevated storage locations for efficient order picking, helping improve picking productivity and warehouse workflow.

2. Excellent Space Utilization

With a minimum working aisle width of just 1.3 meters, the LHE112 is ideal for very narrow aisle (VNA) warehouse applications. It helps businesses make better use of existing warehouse floor space and vertical storage capacity.

3. Smooth and Precise Lifting Control

The proportional lifting control system allows operators to adjust lifting speed smoothly, reducing mast vibration and improving operating comfort during elevated picking tasks.

4. Enhanced Operational Safety

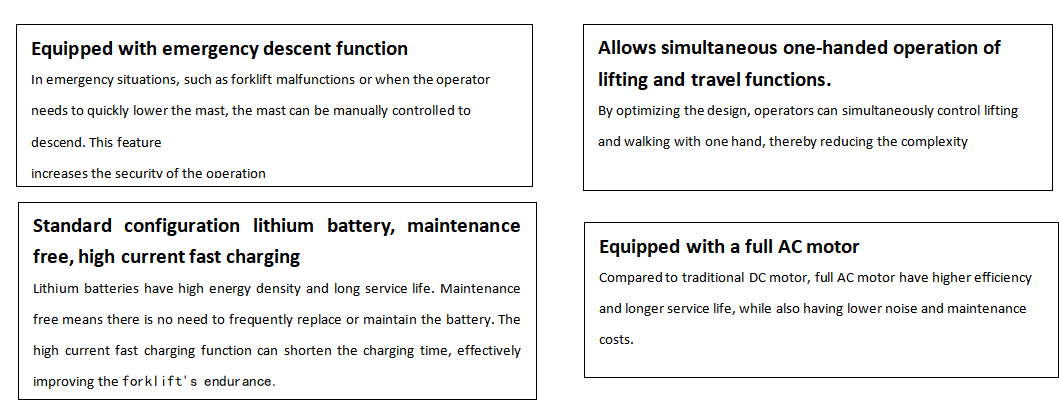

The emergency lowering function provides an additional safety measure in unexpected situations. Optional bidirectional driving controls help improve operator visibility during forward and reverse travel.

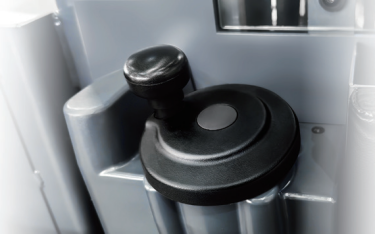

5. Ergonomic One-Hand Operation

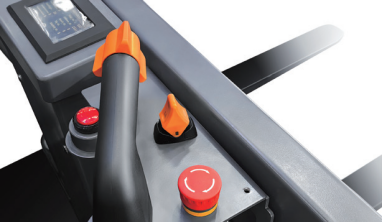

The integrated control system allows operators to manage travel and lifting functions with one hand, simplifying operation and improving efficiency during frequent picking cycles.

6. Reliable Lithium-Ion Battery Performance

Equipped with lithium-ion battery technology, the LHE112 supports fast charging and low-maintenance operation, making it suitable for demanding warehouse environments.

Typical Applications

E-commerce fulfillment centers / Logistics and distribution warehouses /High-bay storage facilities / Automotive parts warehouses / Food and pharmaceutical warehouses / High-density storage and order picking operations

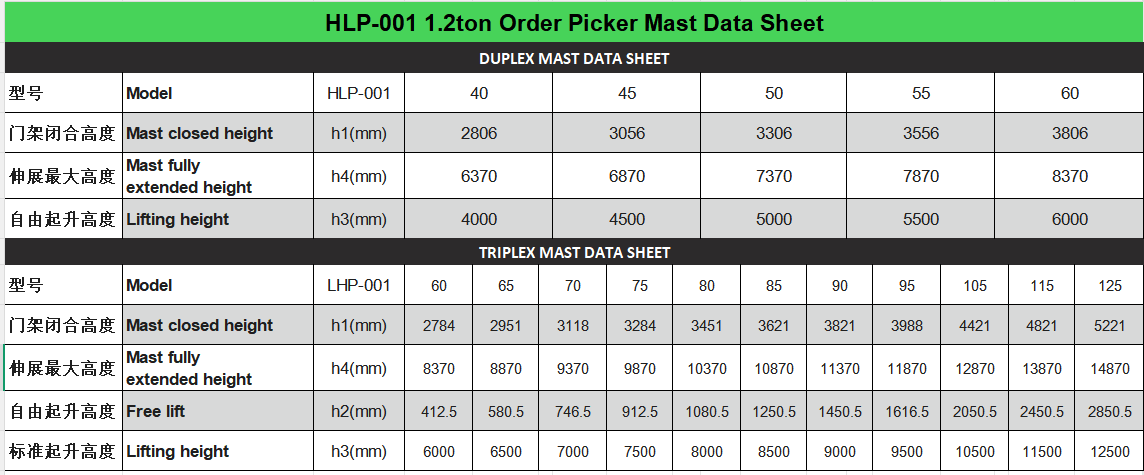

To meet the picking needs under different conditions, HLP-12T also offers forklift models with various mast heights, allowing users to choose the most suitable for their specific working conditions.

特性 Characteristics	1.1	产品型号	Product Model		HLP-12T
	1.2	驱动形式	Drive type		电动 Electric
	1.3	驾驶方式	Driving Mode		站驾式 Standing type
	1.4	额定载荷	Rated load	Q kg	1200
	1.5	载荷中心	Load Centre	C mm	400
	1.6	前悬距	Front Overhang	X mm	214.5
	1.7	轴距	Wheelbase	Y mm	1680
重量 Weight	2.1	自重（不含电池）	Deadweight (without battery)	kg	3950
	2.2	桥荷满载（驱动/负载）	Bridge load Full load (drive/load)	kg	1490/3660
	2.3	桥荷空载（驱动/负载）	Bridge load Unladen (drive/load)	kg	2150/1800
轮胎 Wheel	3.1	轮胎	Tyre		聚氨酯 PU wheel
	3.2	驱动轮尺寸	Drive Wheel Size	mm	Φ343×135
	3.3	承载轮尺寸	Carrier Wheel Size	mm	Φ150×100
	3.4	轮子数量（前/后）（x=驱动轮）	Number of wheels(front/rear)(x = drive wheel)		1x/4
	3.5	后轮距	Rear wheelbase	b11mm	1269

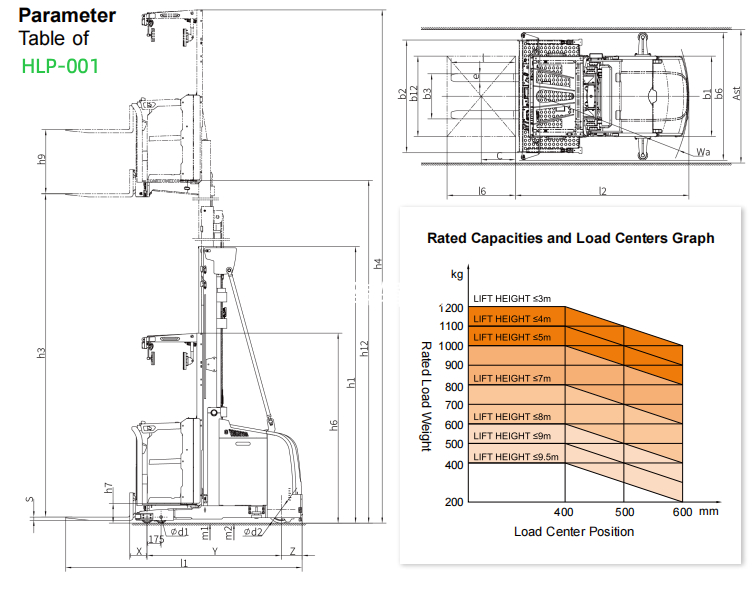

基本尺寸 Basic dimensions	4.1	门架闭合高度	Mast closing height	h1mm	3451
	4.2	起升高度	Lifting height	h3mm	8000
	4.3	门架展开高度（护顶架最高点）	Height of gantry deployment(highest point of roofrack)	h4mm	10370
	4.4	护顶架高度（回落状态）	Height of roof protection frame(lowered state)	h6mm	2370
	4.5	站人平台高度（回落状态）	Height of the platform (in the falling state)	h7mm	245
	4.6	辅助提升高度	Auxiliary lifting height	h9mm	800
	4.7	站人平台高度（展开状态）	Platform height (deployed state)	h12mm	8245
	4.8	货叉最低离地高度	Minimum fork height above ground	h13mm	75
	4.9	总长	Overall length	l1mm	2946.5
	4.10	货叉前端面至前端距离	Distance from front face to front face of fork	l2mm	2146.5
	4.11	总宽（驾驶室宽度可定制）	Overall width (cabin width can be customized)	b1mm	1000
	4.12	货叉尺寸	Fork size	s/e/lmm	40/100/800
	4.13	货叉外宽	Fork outer width	b3mm	200-1000可调 Adjustable
	4.15	最小离地间隙	Minimum ground clearance	Mmm	50
	4.16	直角堆垛通道宽度，托盘800*1200（800沿货叉边）	Right angle stacking aisle width - pallet 800*1200 (800 along the fork sides)	Astmm	3106
	4.17	直角堆垛通道宽度，托盘1000*1200（1200沿货叉边）	Right angle stacking aisle width, 1000*1200(1200 along fork edges)	Astmm	3635
	4.18	转弯半径	Turning radius	Wamm	1852
性能 Performance	5.1	行驶速度满载/空载	Travelling speed Full/no load	km/h	10/10
	5.2	提升速度满载/空载	Lifting speed Full/no load	mm/s	250/300
	5.3	下降速度满载/空载	Lowering speed, laden/unladen	mm/s	300/250
	5.4	最大爬坡能力满载/空载	Maximum climbing capacity, laden/unladen	%	10/10
	5.5	制动方式	Braking method		电磁制动 Electromagnetic
电机 Motor	6.1	驱动电机功率	Drive motor rating(same as FRB)	kw	11
	6.2	提升电机功率	Lifting motor power	kw	12
	6.3	蓄电池电压/容量	Battery voltage/capacity	V/Ah	48/460锂电 lithium
	6.4	蓄电池重量	Battery weight	kg	127
其他 Other	7.1	控制方式	Control mode		场效应管控制 Mosfet control
其他 Other	7.2	噪音值	Sound level	dB(A)	<70
