X Series 3.5-Ton / 5-Ton 4WD Rough-Terrain Forklift

X Series 3.5-Ton / 5-Ton 4WD Rough-Terrain Forklift

Spec sheet

Vortex X series 4WD Rough Terrain Forklift

Built for Rough Ground. Made for Heavy-Duty Material Handling.

It is designed for material handling where conventional forklifts struggle.

With a four-wheel-drive system, high ground clearance, heavy-duty off-road tires and a rugged chassis, it delivers reliable traction and stable handling on uneven, muddy, gravel and unpaved surfaces.

Whether you are moving building materials on a construction site, transporting supplies around a farm, handling timber, or working in mining and remote locations, Vortex rough terrain forklifts provide the mobility and lifting capability required for demanding outdoor operations.

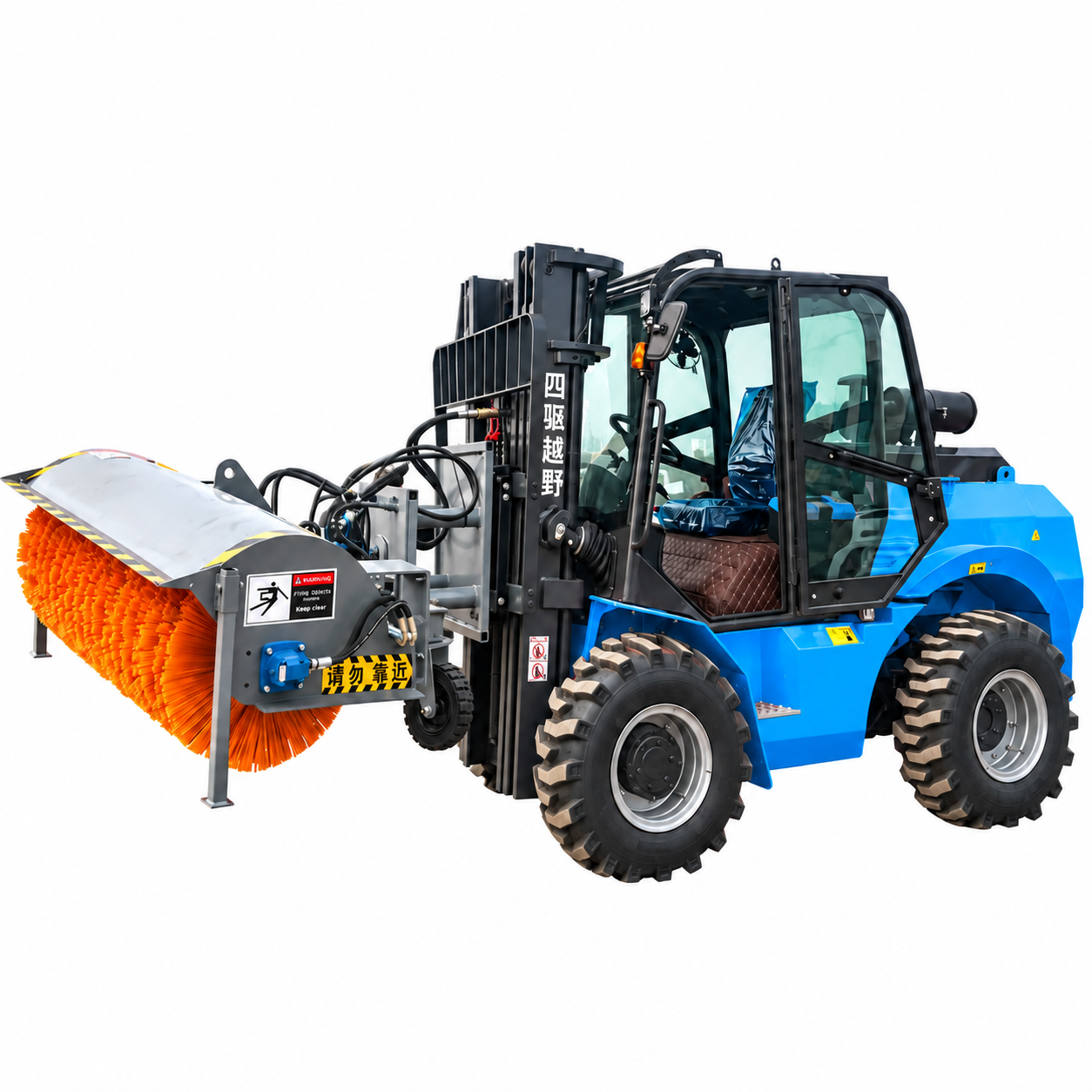

ChatGPT Image 2026年9月24日 11_30_25.png

*Powerful 4WD Traction*

The four-wheel-drive system provides strong traction on loose soil, gravel, muddy roads and uneven terrain.

Compared with conventional warehouse forklifts, it is better suited for outdoor environments where ground conditions change frequently.



*High Ground Clearance*

The elevated chassis helps the forklift travel over potholes, stones, ruts and uneven ground with less risk of bottoming out.

This makes the machine particularly suitable for construction sites, farms, mining areas and other non-paved workplaces.



*Heavy-Duty Off-Road Tires*

Large off-road tires provide better grip and ground contact on challenging surfaces.

They help improve mobility and stability when the forklift is operating on dirt roads, gravel, mud and other rough terrain.



*Strong Lifting & Load Handling Capability*

Changjian rough terrain forklifts are designed for heavy-duty outdoor material handling.



They can be used for transporting and stacking:



Construction materials

Timber and logs

Agricultural supplies

Pallets and bulk goods

Stone and mining materials

Pipes and industrial materials

Flexible Steering



A compact machine layout and responsive steering system help the operator maneuver efficiently around construction sites, farms, yards and other confined outdoor working areas.



"Multiple Attachments Available"



Different attachments can be configured according to your application, helping one forklift perform multiple jobs.



Available options may include:



Standard forks

Rotating forks

Log grapple

Loading bucket

Extended forks

Other customized attachments



"Designed for Demanding Applications"



*Construction Sites

Move bricks, cement, steel, pipes, pallets and other construction materials across uneven or muddy job sites.



*Agriculture & Farms

Suitable for transporting feed, fertilizer, crops, pallets and agricultural supplies on dirt roads, fields and farm yards.



*Mining & Quarry Operations

The rugged chassis, strong traction and high ground clearance make the forklift suitable for material handling on gravel roads and uneven mining sites.



*Timber & Forestry

With an optional log grapple or customized attachment, the forklift can be configured for timber handling and forestry applications.



*Industrial Yards & Remote Sites

Ideal for outdoor warehouses, material yards, docks and remote locations where conventional forklifts have difficulty operating.

PARAMETERS

SPECIFICATION

Model

CPCD35

CPCD50

Rated load

3500kg

5000kg

Load center distance

500mm

500mm

Lifting height

3000mm

3000mm

Full height of gantry

2200mm

2250mm

Full height (roof protection frame)

2250mm

2250mm

Full length (without fork)

3300mm

4000mm

Full width

1600mm

1800mm

Wheelbase

1900mm

2200mm

Towing pin height

800mm

820mm

Minimum ground clearance (at gantry)

260mm

260mm

Fork pitch outside (maximum/minimum)

1110/240mm

1350/300mm

Track width (front/rear)

1300mm

1500mm

Outside of minimum turning radius

2400mm

2250mm

Inside of minimum turning radius

800mm

450mm

Gantry inclination (front/rear)

Front 10°      Rear 12°

12°

Fork size

1220*45*120mm

1370mm

Maximum driving speed           (full load/no load)

18km/h

24/28km/h

Total weight

4650kg

6500kg

Width of door lever

160mm

180mm

Tire type

Semi-Solid Tire

Pneumatic Tire

Front tire

Semi-Solid 20.5-16

Semi-Solid 1670-20

Rear tire

Semi-Solid 10.50-16

Semi-Solid 8.25-16

Service brake

Hydraulic brake

Hydraulic brake

Parking brake

Mechanical brake

Disc Brake

Engine model

Yunnei Engine 490

Yunnei 4102 Turbo, 81KW

Torque converter model

265

Jinlite300

Engine power

58kw

81kw

Number of transmission shifts

Front 2, Rear 2

2*Front2*Rear

Configurations

Tires

Side Shift

Fire Extinguisher /
Breaker Hammer

Multi-way Valve (with
Piping) /
Quick Coupler

One-button
Electronic Engine
Shutoff

Air Preheater

Fork Length

Side-shift Fork
Positioner

USB Charging Port

Rotator

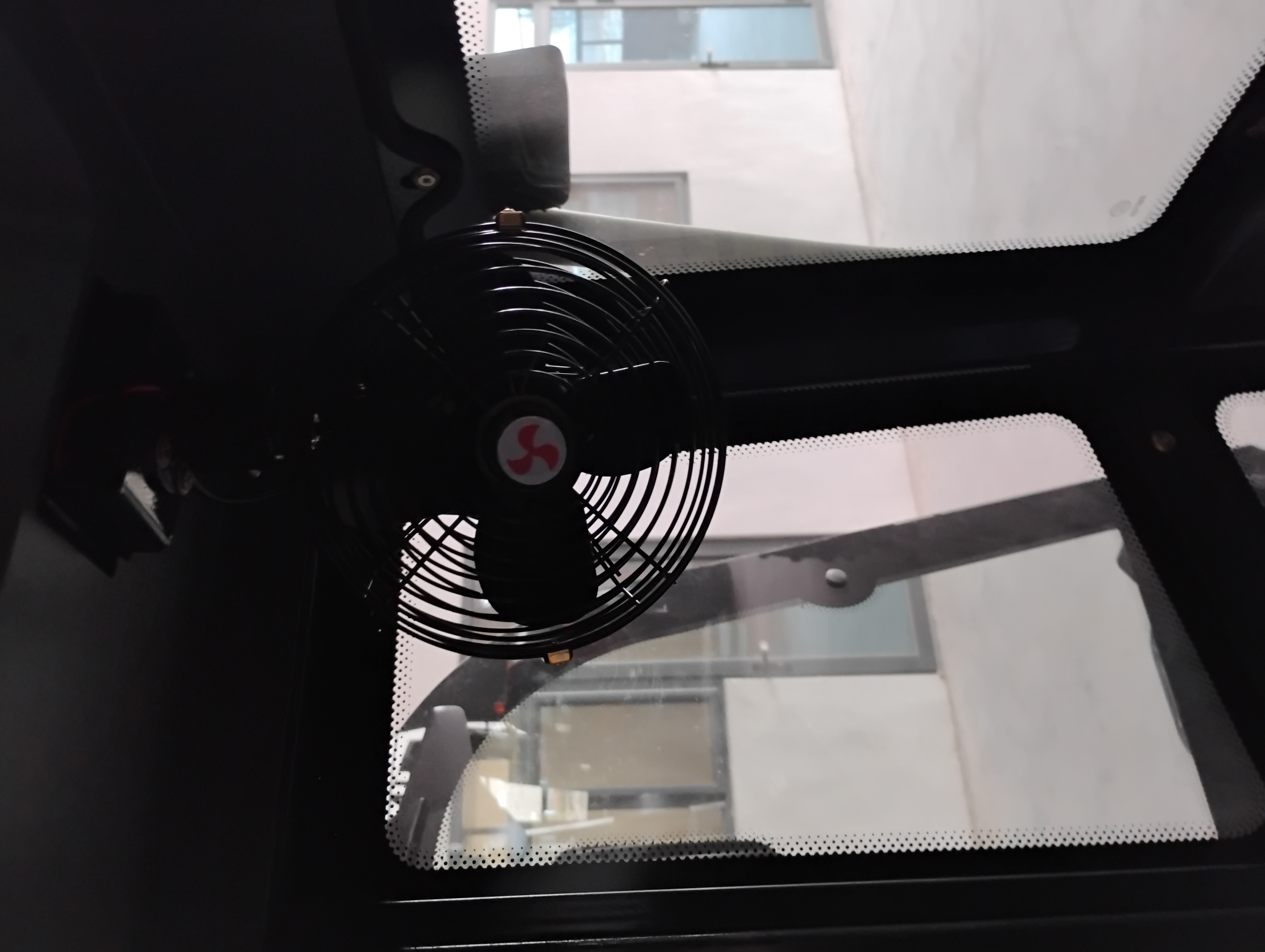

Basic Cab

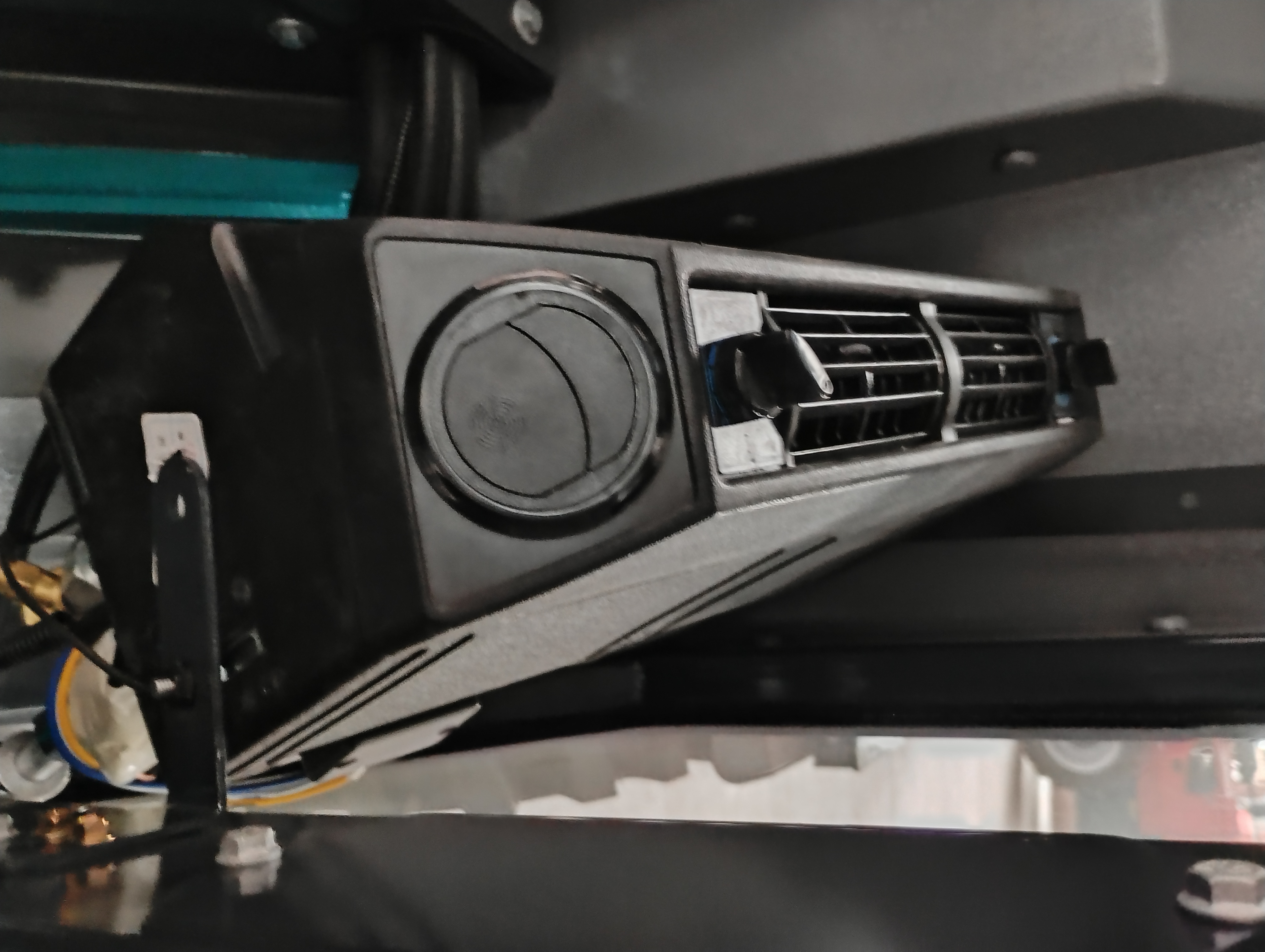

Heater & A/C

Rearview Camera

Cigarette Lighter

Rotator with Hold-
down

Basic Cab with Front &
Rear Glass

Fork Extensions

Various Attachments
