Heavy-Duty Diesel Counterbalance Forklift for Industrial Material Handling
The Vortex G Series 4.0–5.0 ton diesel forklifts are built for demanding material handling applications where power, stability and durability matter. Available in 4.0, 4.5 and 5.0 ton capacities, the series combines a high-efficiency transmission, load-sensing hydraulic system, heavy-duty chassis and operator-friendly design for reliable daily operation.
Available Models: CPC-G40X / CPCD-G40X / CPC-G45 / CPCD-G45 / CPC-G50X / CPCD-G50X
Suitable for heavy material handling in:
Manufacturing · Warehousing · Logistics · Building Materials · Steel & Metal · Machinery · Ports & Yards · Industrial Material Handling
*Powerful Performance for Heavy-Duty Applications*
With rated capacities of 4,000 kg, 4,500 kg and 5,000 kg, the ENSIGN G Series is designed for demanding material handling operations. Strong traction, stable load handling and excellent gradeability make it suitable for factories, warehouses, building material yards, logistics centers and other intensive working environments.

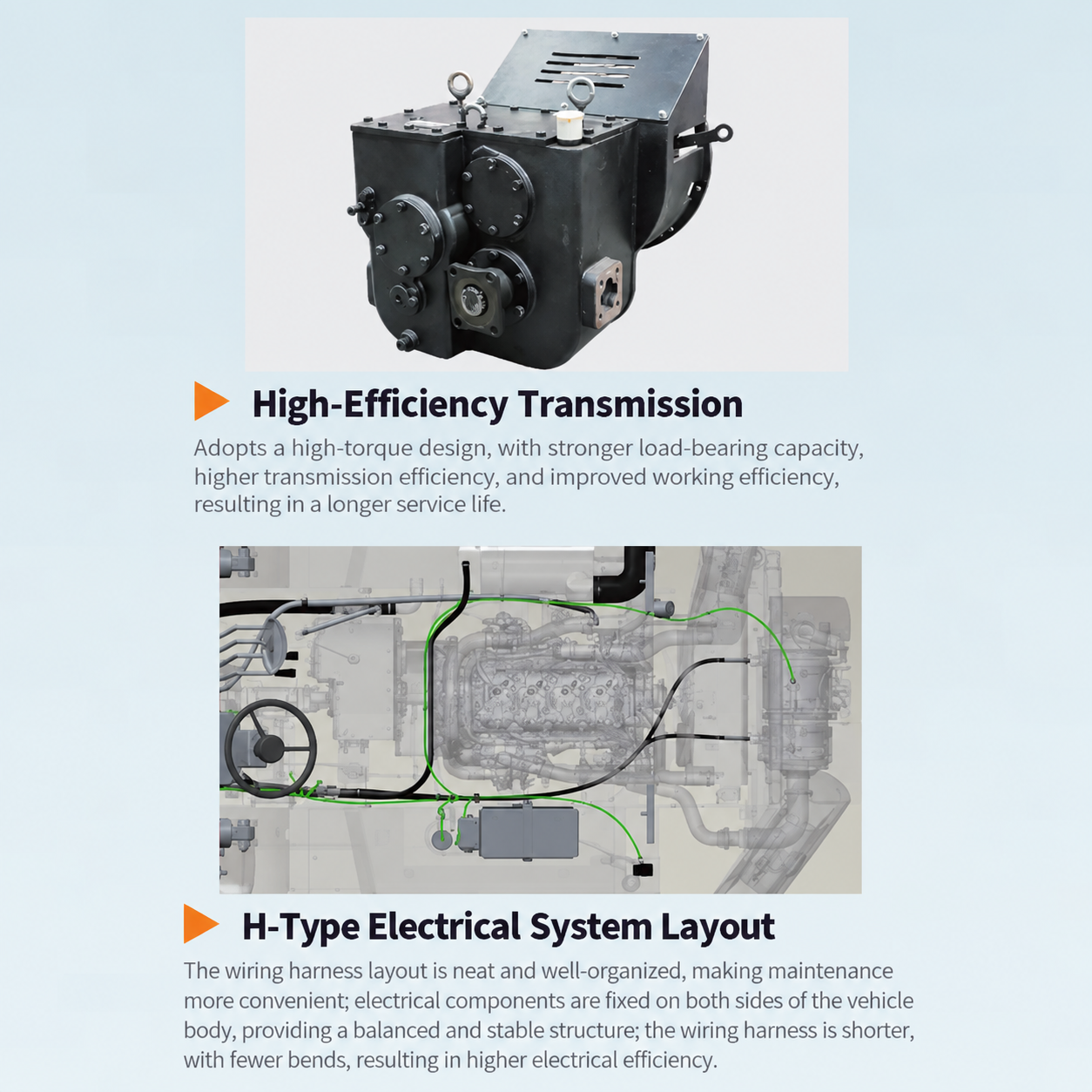

*High-Efficiency Transmission*
The heavy-duty transmission is designed for high torque capacity and efficient power transfer, providing strong driving performance under load while improving overall operating efficiency and durability.

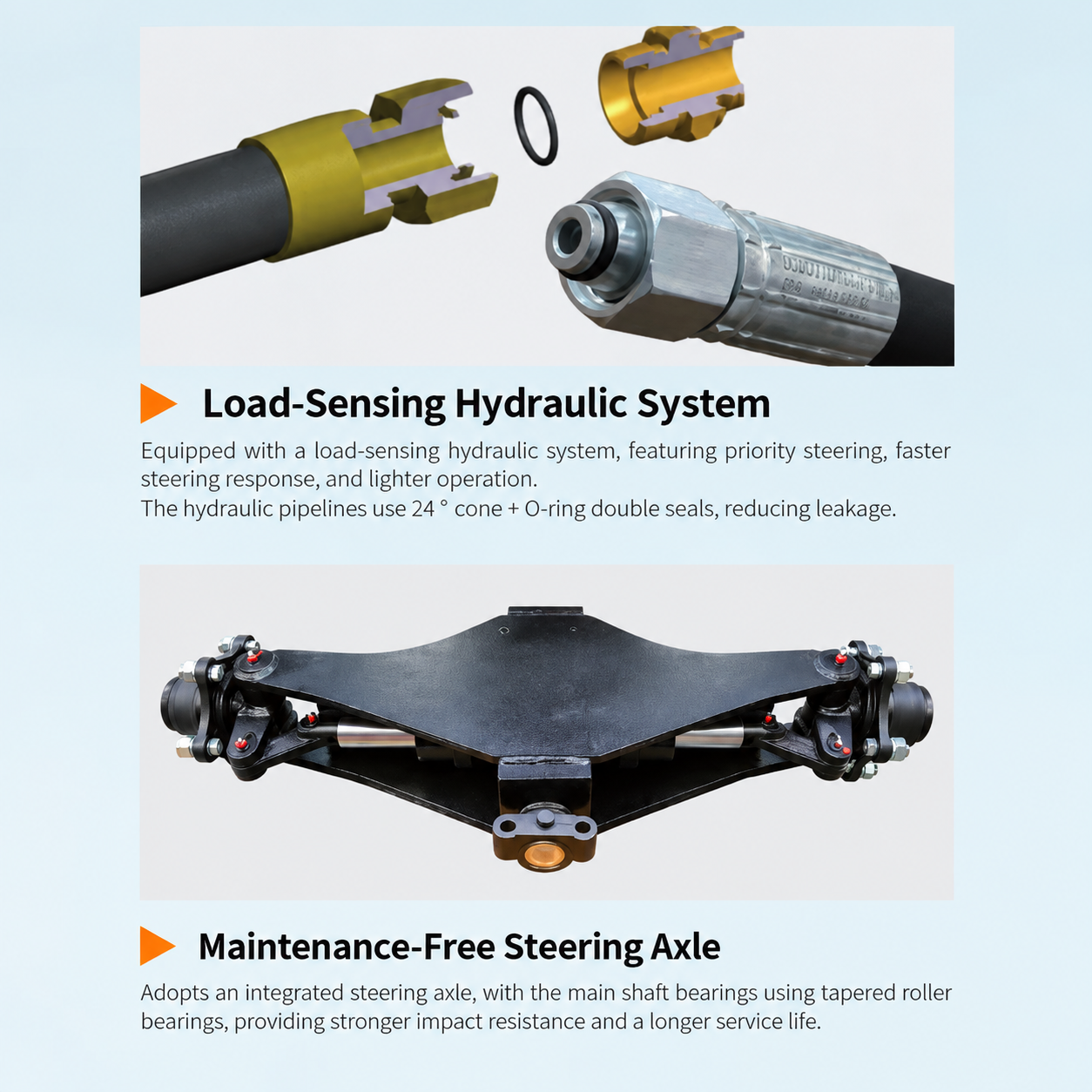

*Load-Sensing Hydraulic System*
The load-sensing hydraulic system provides priority steering for faster response and lighter steering operation. Hydraulic lines feature a 24° cone and O-ring double-sealing structure, helping reduce leakage and improve hydraulic system reliability.
*Stable Heavy-Duty Chassis*
An optimized wheelbase and robust chassis provide excellent stability during lifting, traveling and turning. The 4.5–5.0 ton models feature a 2,100 mm wheelbase, providing a solid foundation for demanding load-handling operations.
*Maintenance-Free Steering Axle*
The integrated steering axle uses tapered roller bearings on the main shaft for enhanced impact resistance and durability, helping reduce routine maintenance requirements in intensive applications.

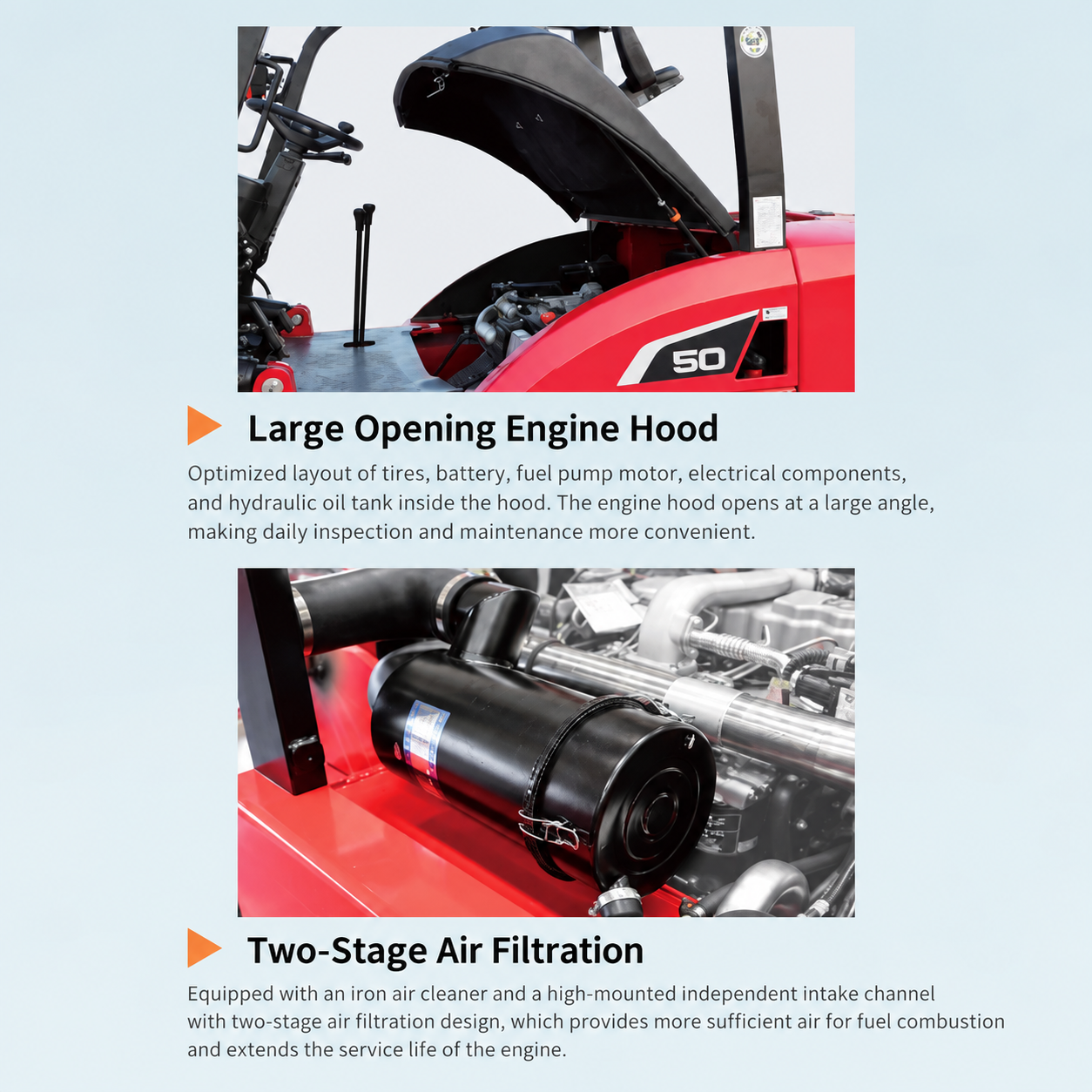

*Large-Opening Engine Hood*
The large-opening hood provides convenient access to major service components. The battery, electrical components and hydraulic system are arranged for easier daily inspection and maintenance, helping reduce service time.
*Two-Stage Air Filtration*
A heavy-duty air cleaner combined with a high-mounted independent intake channel and two-stage filtration system helps provide cleaner intake air for the engine, making the forklift better suited to demanding industrial environments.
*Optimized Electrical System Layout*
The H-type electrical system features organized wiring and strategically positioned electrical components. Shorter harness routing and fewer bends help simplify maintenance and improve electrical system reliability.
*Comfortable & Practical Operation*

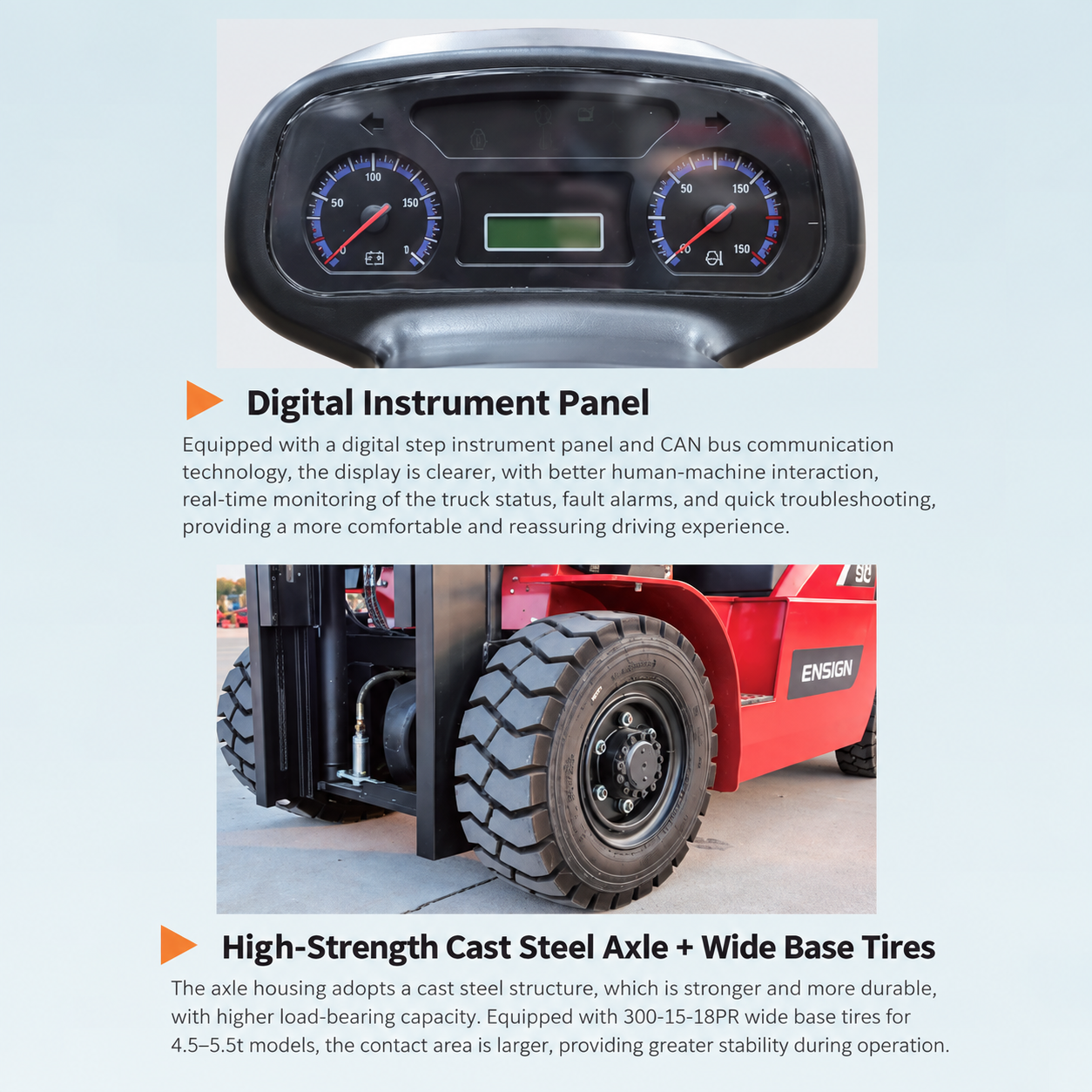

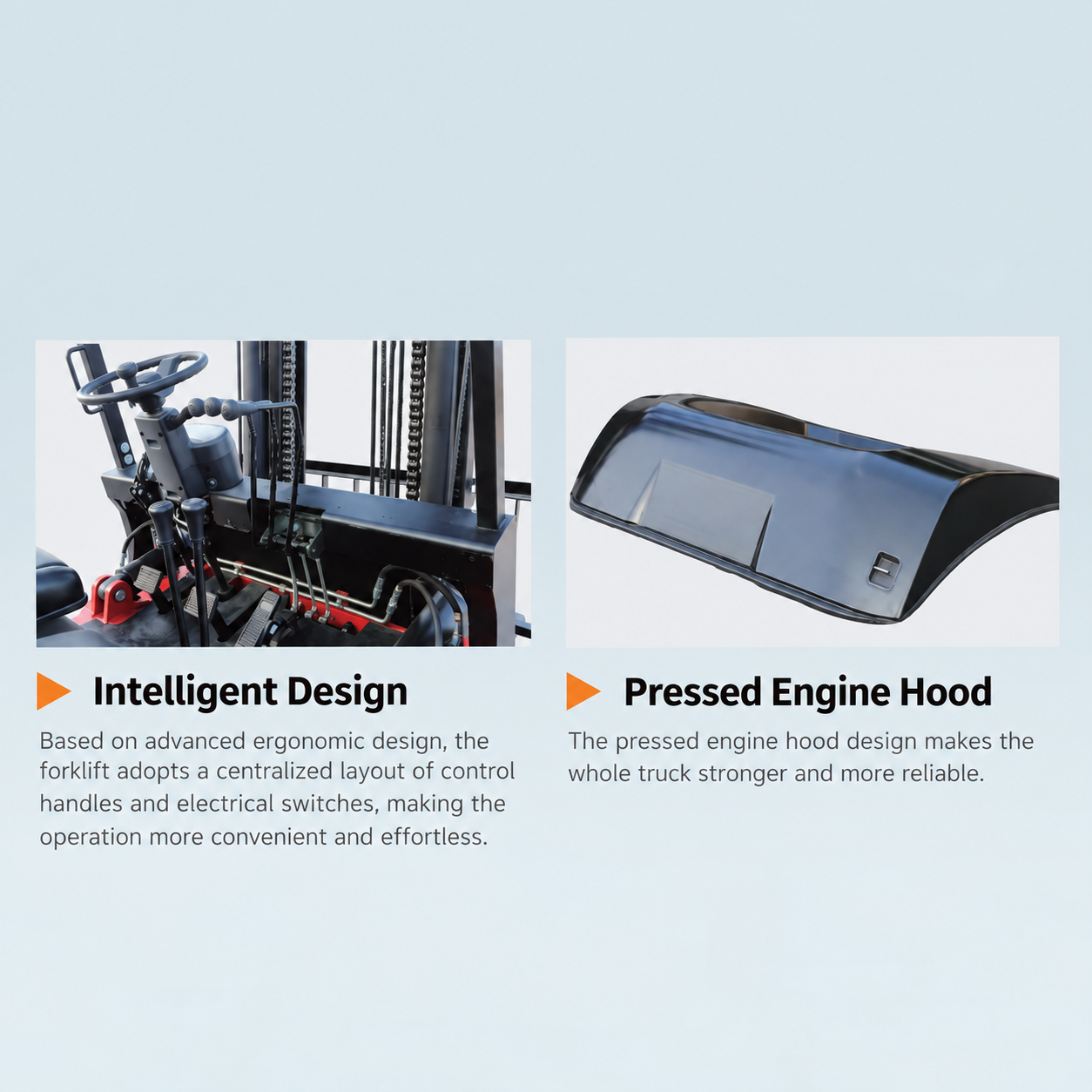

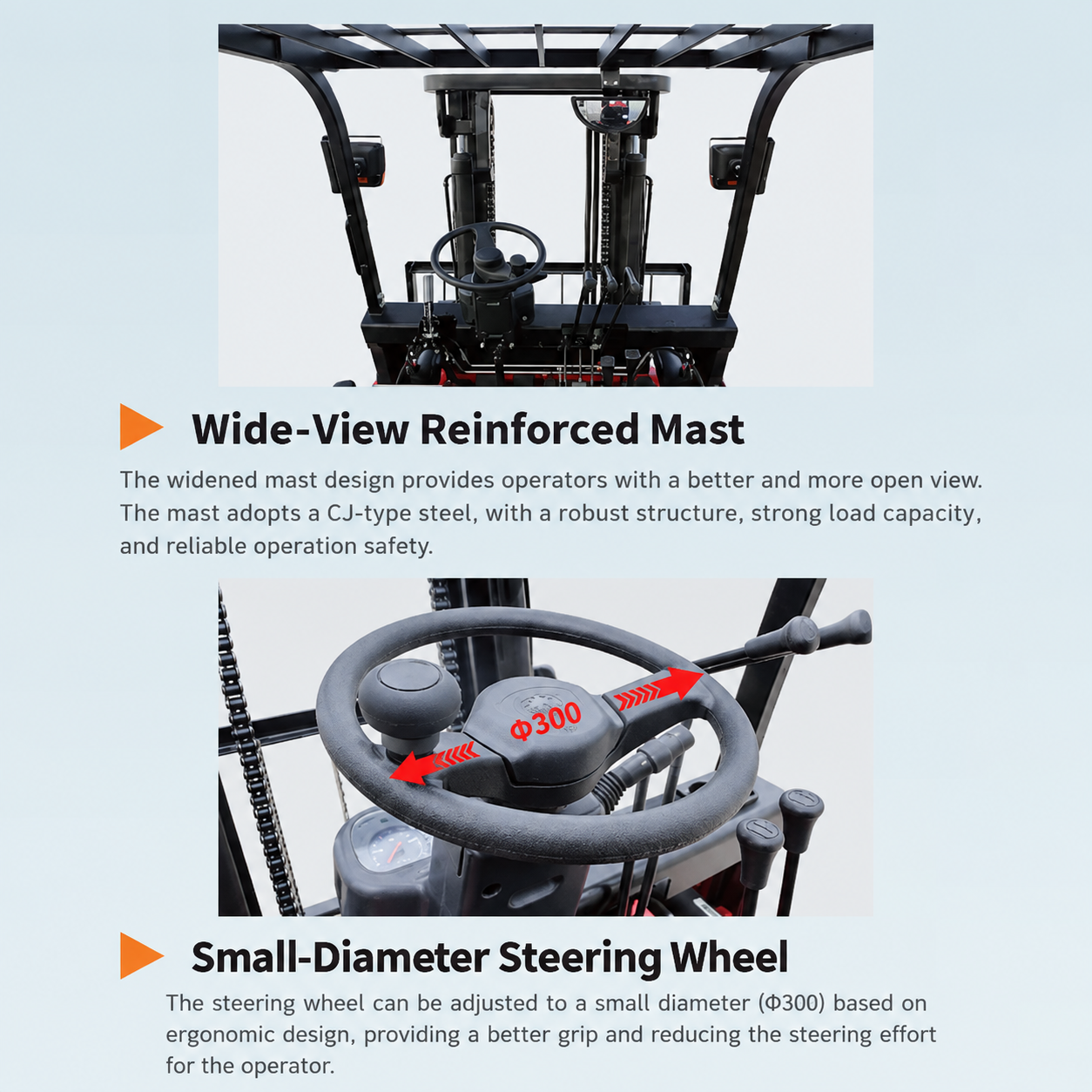

Fully hydraulic power steering, adjustable steering wheel, wide-view mast, standard seat, multifunction instrument panel, rear-view mirrors and conveniently positioned control levers provide a practical operator environment for long working shifts.
|
BASIC PARAMETERS |
||||||||
|
Model |
|
|
CPC-G40X |
CPCD-G40X |
CPC-G45 |
CPCD-G45 |
CPC-G50X |
CPCD-G50X |
|
Fuel Type |
|
|
Diesel |
Diesel |
Diesel |
Diesel |
Diesel |
Diesel |
|
Rated Capacity |
|
(kg) |
4000 |
4000 |
4500 |
4500 |
5000 |
5000 |
|
Load Center |
|
(mm) |
500 |
500 |
500 |
500 |
500 |
500 |
|
Battery |
|
(V/Ah) |
12/80 |
12/80 |
12/120 |
12/120 |
12/120 |
12/120 |
|
PERFORMANCE PARAMETERS |
||||||||
|
Max. Lift Height |
H |
(mm) |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
|
Free Lift |
H5 |
(mm) |
160 |
160 |
160 |
160 |
160 |
160 |
|
Mast Tilt |
a/ |
(°) |
6/12 |
6/12 |
6/12 |
6/12 |
6/12 |
6/12 |
|
Max. Lifting Speed |
|
(mm/s) |
420/440 |
420/440 |
430/470 |
450/510 |
420/460 |
440/500 |
|
Max. Lowering Speed |
|
(mm/s) |
330/310 |
330/310 |
420/350 |
420/350 |
430/350 |
430/350 |
|
Max. Travel Speed |
|
(km/h) |
19/19.5 |
19/19.5 |
18.5/19 |
22/23 |
18.5/19 |
22/23 |
|
Minimum Turning Radius |
r |
(mm) |
2730 |
2730 |
2930 |
2930 |
2930 |
2930 |
|
Gradeability |
|
(%) |
15/20 |
15/20 |
20/21 |
20/21 |
20/21 |
20/21 |
|
Max. Drawbar Pull |
|
(KN) |
25 |
25 |
29 |
29 |
29 |
29 |
|
Service Weight |
|
(kg) |
5200 |
5200 |
6450 |
6600 |
6700 |
6850 |
|
OVERALL DIMENSIONS |
||||||||
|
Length |
|
(mm) |
2960 |
2960 |
3220 |
3220 |
3220 |
3220 |
|
Width |
W |
(mm) |
1400 |
1400 |
1500 |
1500 |
1500 |
1500 |
|
Mast Height |
H1 |
(mm) |
2130 |
2130 |
2275 |
2275 |
2275 |
2275 |
|
Overhead Guard Height |
H3 |
(mm) |
2160 |
2160 |
2280 |
2280 |
2280 |
2280 |
|
Load Backrest Height |
H6 |
(mm) |
1350 |
1350 |
1280 |
1280 |
1280 |
1280 |
|
Overall Height |
H2 |
(mm) |
4230 |
4230 |
4230 |
4230 |
4230 |
4230 |
|
Ground Clearance |
|
(mm) |
140 |
140 |
169 |
169 |
169 |
169 |
|
Wheelbase |
L |
(mm) |
1900 |
1900 |
2100 |
2100 |
2100 |
2100 |
|
Front Tread |
W1 |
(mm) |
1150 |
1150 |
1195 |
1195 |
1195 |
1195 |
|
Rear Tread |
W2 |
(mm) |
1070 |
1070 |
1195 |
1195 |
1195 |
1195 |
|
Front Overhang |
L2 |
(mm) |
500 |
500 |
560 |
560 |
560 |
560 |
|
Rear Overhang |
L3 |
(mm) |
580 |
580 |
560 |
560 |
560 |
560 |
|
OTHER SPECIFICATIONS |
||||||||
|
Front Tires |
|
|
250-15-16PR |
250-15-16PR |
300-15-18PR |
300-15-18PR |
300-15-18PR |
300-15-18PR |
|
Rear Tires |
|
|
7.00-12-12PR |
7.00-12-12PR |
7.00-12-12PR |
7.00-12-12PR |
7.00-12-12PR |
7.00-12-12PR |
|
Forks (L x W x T) |
b |
(mm) |
1070*150*50 |
1070*150*50 |
1070*150*50 |
1070*150*50 |
1070*150*50 |
1070*150*50 |
|
ENGINE SPECIFICATIONS |
||||||||
|
Model |
|
|
xinchai A498BPG |
XINCAI 4D35ZG31 |
||||
|
Rated Power |
|
(kW/rpm) |
45/2500 |
60/2200 |
||||
|
Max. Torque |
|
(N. m/rpm) |
193/1675-1875 |
300/1600-1800 |
||||
|
No. of Cylinders |
|
|
4 |
4 |
||||
|
Displacement |
|
(L) |
3.17 |
3.47 |
||||
|
STANDARD CONFIGURATION |
||
|
Fully Hydraulic Power Steering |
Adjustable Steering Wheel |
Lift Circuit Flow-Control Valve |
|
Cable-Operated Parking Brake |
Standard Overhead Guard |
Pneumatic Tires |
|
Split LED Rear Combination Lights |
2-Spool Control Valve |
Load Safety Valve |
|
Reverse Buzzer |
Electric Horn |
Left and Right Rear-View Mirrors |
|
2-Stage Wide-View Mast |
Standard Load Backrest |
Standard Forks |
|
Entry Assist Handle |
Standard Seat |
Anti-Slip Entry Step |
|
Lift and Tilt Control Levers |
Hydraulic Oil Dipstick |
Tilt Circuit Self-Locking Valve |
|
Rain Canopy |
Multifunction Instrument Panel |
On-Board Toolbox |
|
LED Combination Headlights |
USB Charging Port |
|
|
OPTIONAL CONFIGURATION |
||
|
Suspension Seat |
High/Low Overhead Guard |
Custom Color |
|
Panoramic Rear-View Mirror |
Dual Air Cleaner |
LED Rear Work Light |
|
Fire Extinguisher |
3-/4-Spool Control Valve |
Solid Tires |
|
Cab |
Raised Exhaust |
Toolbox |
|
SPECIAL MAST OPTIONS |
||
|
2-Stage Full Free-Lift Mast |
3-Stage Full Free-Lift Mast |
Wide Fork Carriage |
|
High Load Backrest |
Long Forks |
Special Forks |
|
OPTIONAL ATTACHMENTS |
|||
|
Side Shifter |
Paper Roll Clamp |
Rotating Clamp |
Rotating Forks |
|
Load Stabilizer |
Fork Extensions |
Drum Clamp |
Bale Clamp |
|
Carton Clamp |
Fork Positioner |
Push-Pull |
Tipping Forks |
|
Sideshifting Fork Positioner |
Load Ram |
Crane Jib |
Rotator |
