Vortex G Series 2.0–4.0 ton diesel counterbalance forklifts are designed for reliable material handling in warehouses, factories, logistics yards and demanding industrial applications. Multiple engine, mast and attachment options are available.
2.0–4.0 Ton Diesel Forklift | ENSIGN G Series Counterbalance Forklift
ENSIGN G Series diesel forklifts are designed for reliable and efficient material handling in warehouses, factories, logistics yards, construction material facilities and other demanding applications. With rated capacities from 2.0 to 4.0 tons, the G Series combines strong performance, stable handling, operator comfort and convenient maintenance for everyday material handling operations

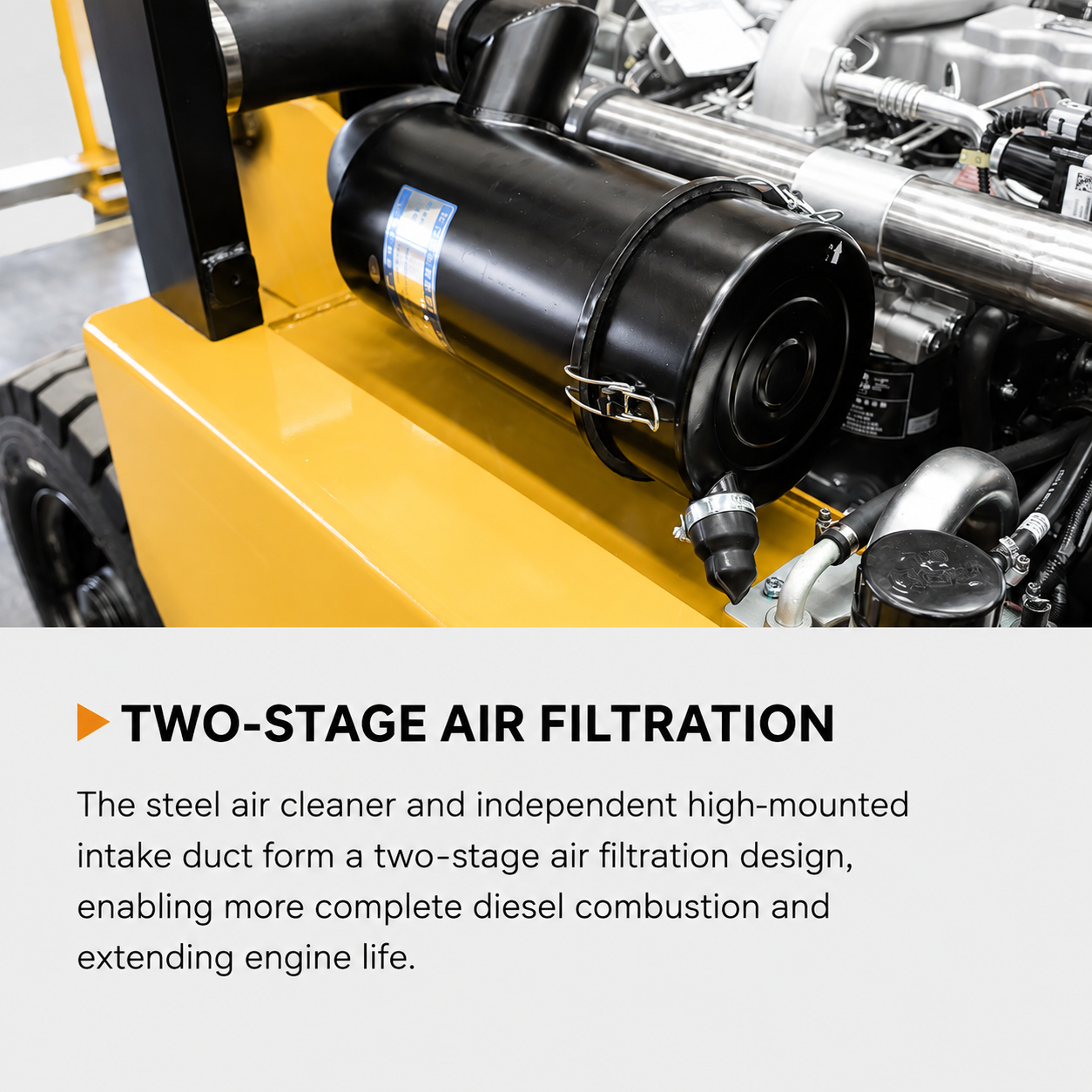

*Powerful & Reliable Performance*
The G Series is equipped with proven diesel engine options and a well-matched powertrain, providing reliable power for loading, unloading, stacking and material transportation under demanding working conditions.

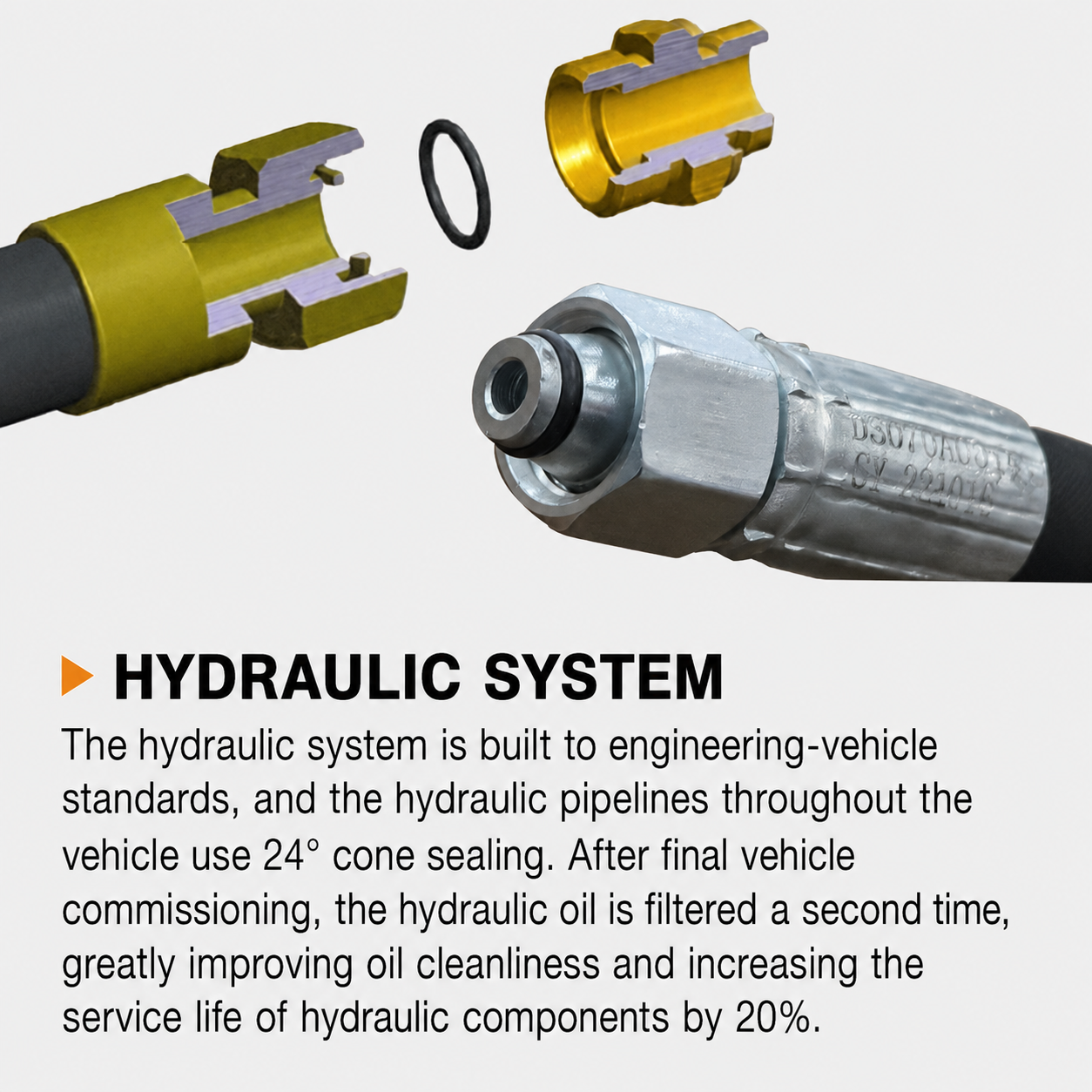

*Efficient Hydraulic System*
An optimized hydraulic system delivers smooth lifting and lowering performance, helping improve operating efficiency while maintaining precise load control.
*Excellent Stability*
A robust chassis, optimized wheelbase and counterweight design provide excellent stability during lifting, traveling and turning, making the forklift suitable for intensive material handling operations.

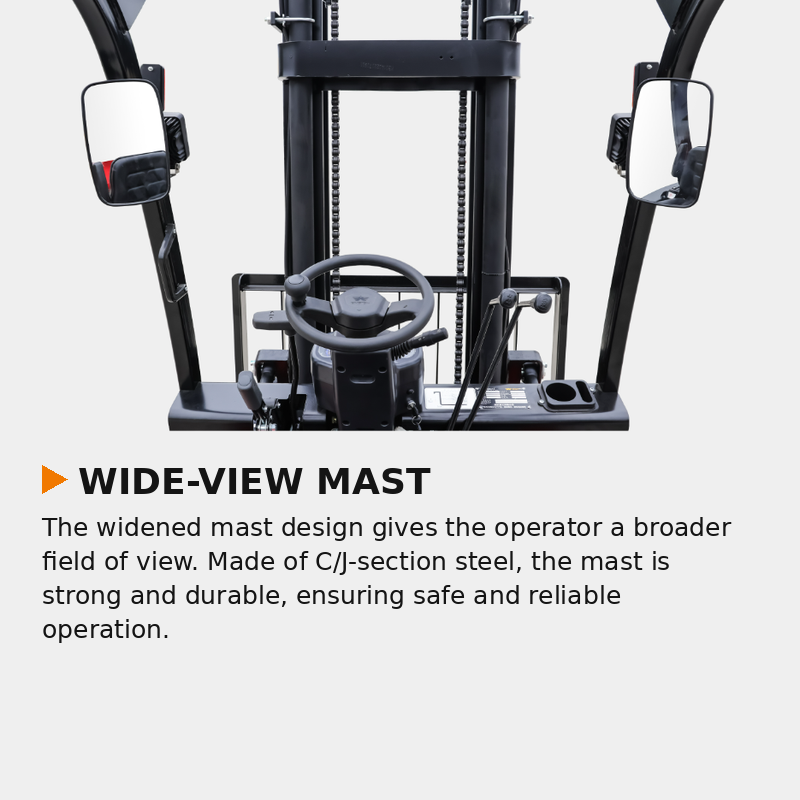

*Wide-View Mast*
The wide-view mast design provides the operator with better visibility of the forks, load and surrounding working area, helping improve operational efficiency and safety.

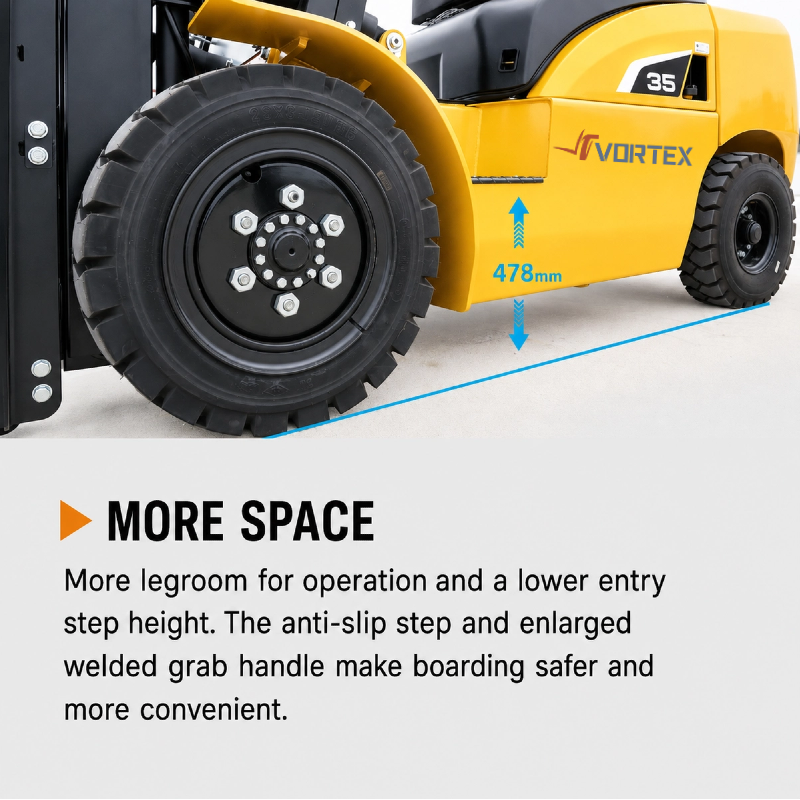

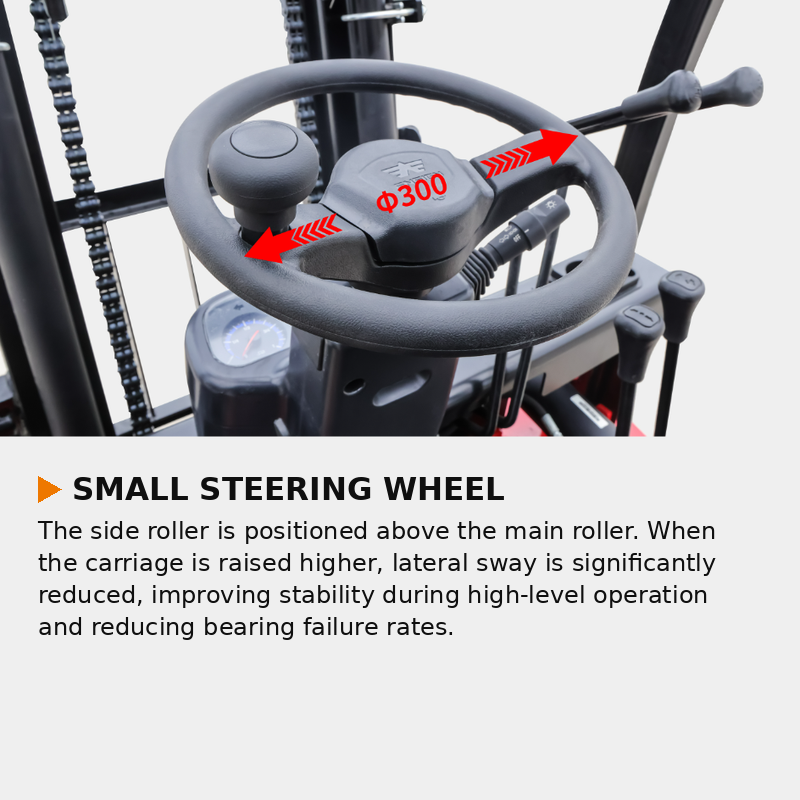

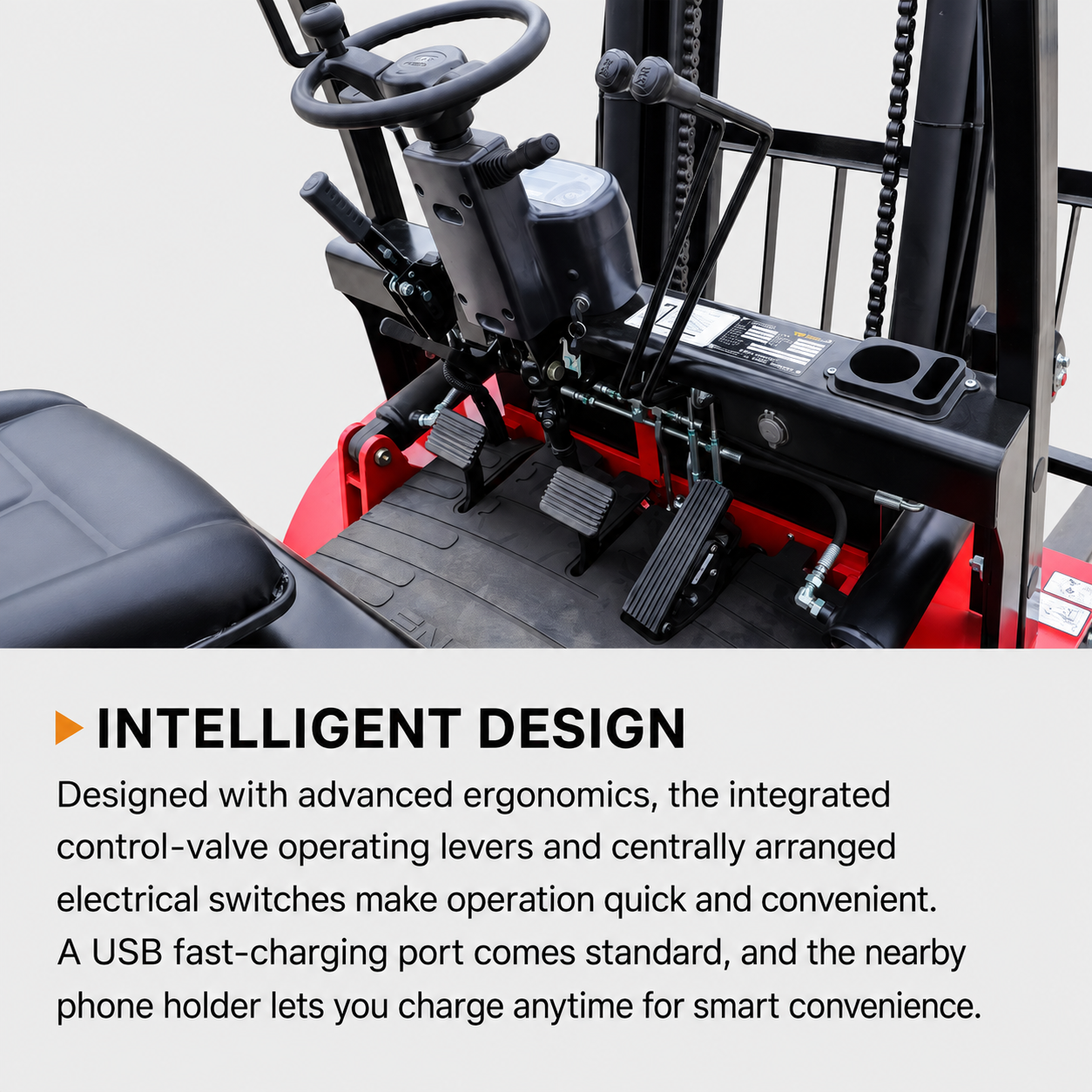

*Comfortable Operator Environment*

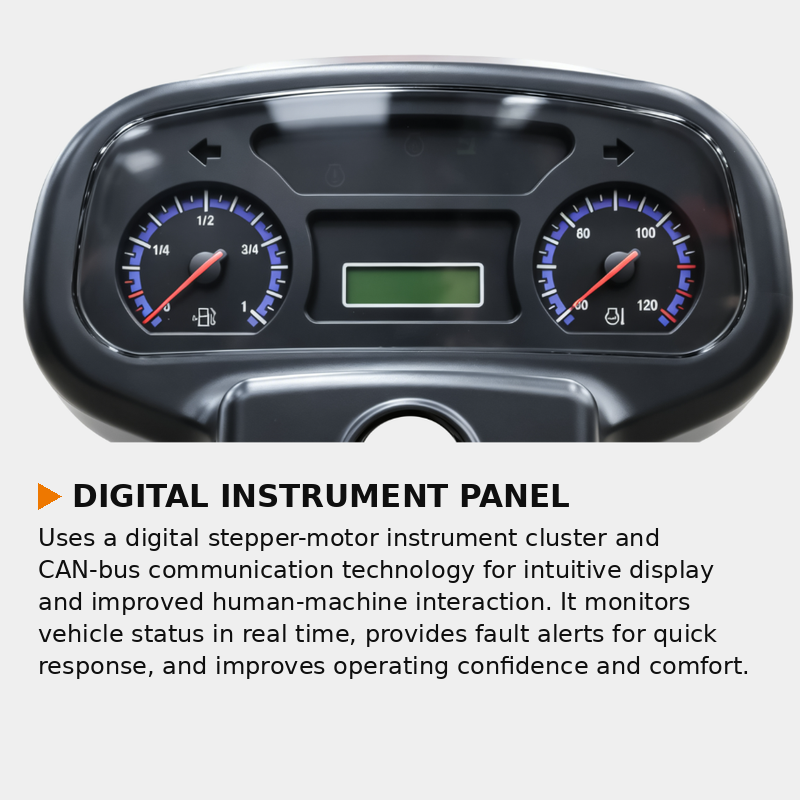

The ergonomic operator compartment features conveniently positioned controls, adjustable steering, easy-to-read instruments and a spacious driving area to reduce operator fatigue during long working shifts.

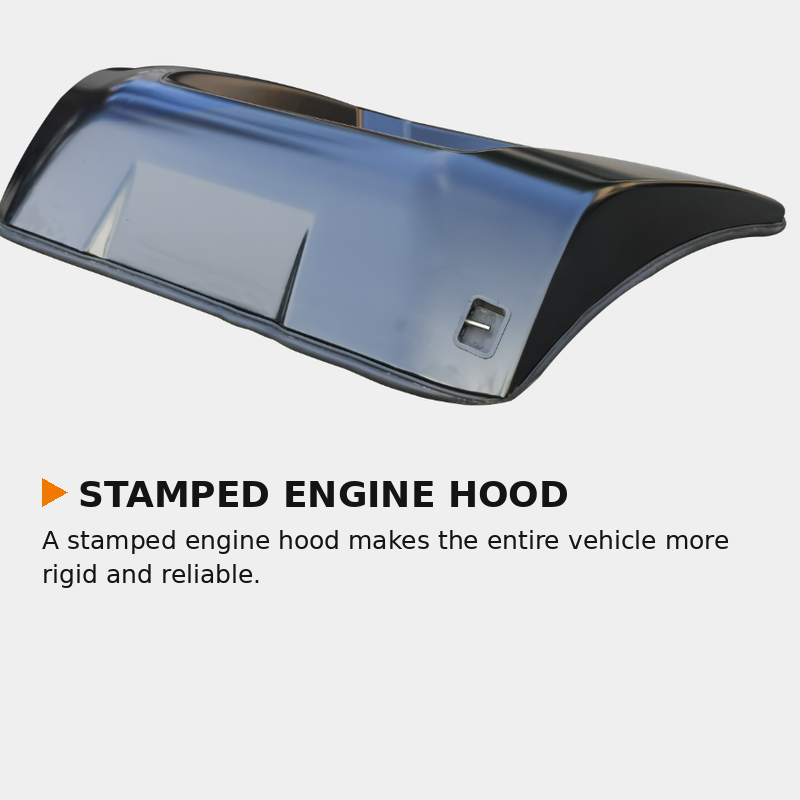

*Easy Maintenance*
A large-opening engine hood and accessible service points make daily inspection and routine maintenance easier, helping reduce maintenance time and equipment downtime.
*Multiple Configurations Available*
Different mast heights, engine options, tires, fork dimensions and attachments are available to meet different material handling requirements.
*Built for Multiple Applications*
Suitable for warehouses, manufacturing plants, logistics centers, construction material yards, ports and other indoor or outdoor material handling applications.
|
Basic Parameters |
||||||||
|
Model |
|
|
CPC(D) |
CPC(D) |
CPC(D) -G30 |
CPC(D) |
CPC(D) |
CPC(D) -G40X |
|
Fuel |
|
|
Diesel |
Diesel |
Diesel |
Diesel |
Diesel |
Diesel |
|
Rated |
|
(kg) |
2000 |
2500 |
3000 |
3500 |
3800 |
4000 |
|
Load Center |
|
(mm) |
500 |
500 |
500 |
500 |
500 |
500 |
|
Battery |
|
(V/Ah) |
12/80 |
12/80 |
12/80 |
12/80 |
12/80 |
12/80 |
|
Performance |
||||||||
|
Max. Lift |
H |
(mm) |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
|
Free Lift |
H5 |
(mm) |
130 |
130 |
130 |
130 |
130 |
140 |
|
Mast Tilt |
α/β |
(°) |
6/12 |
6/12 |
6/12 |
6/12 |
6/12 |
6/12 |
|
Lift Speed |
|
(mm/s) |
560/600 |
560/600 |
455/480 |
455/480 |
370/400 |
370/400 |
|
Lowering |
|
(mm/s) |
540/450 |
540/450 |
450/410 |
450/410 |
330/310 |
330/310 |
|
Travel Speed |
|
(km/h) |
17/19 |
17/19 |
18．5/19 |
18．5/19 |
18．5/19 |
19/19．5 |
|
Min. Turn |
r |
(mm) |
2290 |
2290 |
2560 |
2620 |
2720 |
2720 |
|
Gradeability |
|
(%) |
15/20 |
15/20 |
15/20 |
15/20 |
15/20 |
15/20 |
|
Max. |
|
(KN) |
16 |
16．5 |
20 |
20 |
20 |
20 |
|
Service |
|
(kg) |
3400 |
3700 |
4300 |
4600 |
4800 |
5000 |
|
Dimensions |
||||||||
|
Length w/o |
|
(mm) |
2520 |
2520 |
2825 |
2880 |
2990 |
2990 |
|
Width |
W |
(mm) |
1170 |
1170 |
1230 |
1230 |
1230 |
1240 |
|
Mast Height |
H1 |
(mm) |
2000 |
2000 |
2130 |
2130 |
2130 |
2140 |
|
Guard |
H3 |
(mm) |
2110 |
2110 |
2145 |
2145 |
2145 |
2155 |
|
Backrest |
H6 |
(mm) |
965 |
965 |
1225 |
1225 |
1225 |
1235 |
|
Overall |
H2 |
(mm) |
4035 |
4035 |
4230 |
4230 |
4230 |
4240 |
|
Ground |
|
(mm) |
110 |
110 |
130 |
130 |
130 |
130 |
|
Wheelbase |
L |
(mm) |
1650 |
1650 |
1750 |
1800 |
1900 |
1900 |
|
Front Tread |
W1 |
(mm) |
970 |
970 |
1000 |
1000 |
1000 |
1000 |
|
Rear Tread |
W2 |
(mm) |
980 |
980 |
970 |
970 |
970 |
970 |
|
Front |
L2 |
(mm) |
462 |
462 |
475 |
480 |
490 |
490 |
|
Rear |
L3 |
(mm) |
408 |
408 |
600 |
600 |
600 |
600 |
|
Other Parameters |
||||||||
|
Front Tires |
|
|
7．00 - 12- |
7．00- |
28X9 - 15 - |
28 X 9 - 15 |
28 X 9 - |
250 - 15 - 16PR |
|
Rear Tires |
|
|
6．00 - 9 - |
6．00 - 9 |
6．50 - 10 - |
6．50 - 10 - |
6．50 - 10 |
6．50 - 10 - 10PR |
|
Fork Size (L× |
b |
(mm) |
1070 X 120 |
1070 X |
1070 X 122 |
1070 X |
1070 X |
1070 X 122X50 |
|
Engine Specs |
||||||||
|
Model |
|
|
|
|||||
|
Power |
|
(kw/r) |
36．8/2500 |
|||||
|
Torque |
|
(N. m/r) |
156/1700-1900 |
|||||
|
Cylinders |
|
|
4 |
|||||
|
Displ. |
|
(L) |
2．67 |
|||||
|
Standard Equipment |
||||
|
Hydraulic Power |
Adjustable |
Lift |
2-Stage |
Load Backrest |
|
Cable Parking |
Overhead Guard |
Pneumatic |
Entry Handrail |
Standard Seat |
|
LED Split Rear |
2-Spool Valve |
Load Safety |
Lift/Tilt Levers |
Hydraulic Oil |
|
Reverse Buzzer |
Electric Horn |
Left/Right |
Rain Canopy |
Multifunction |
|
Standard Forks |
Non-Slip Entry |
Tilt Circuit Lock |
Tool Kit |
LED Front |
|
USB Charging Port |
||||
|
Optional Configuration |
|||
|
4-spool Control Valve |
Other Fork Lengths |
Solid Tires |
High/Low Overhead Guard |
|
Rear Work Light |
Twin Front Tires |
3-stage Full Free-lift Mast |
Cabin |
|
Toolbox |
Suspension Seat |
Fire Extinguisher |
Warning Light |
|
Wider/Higher Load Backrest |
2-stage Full Free-lift Mast |
Front Windshield (with Wiper) |
|
|
|
|
|
|
|
Optional Attachments |
|||
|
Side Shifter |
Paper Roll Clamp |
Rotating Clamp |
Rotating Forks |
|
Load Stabilizer |
Fork Extensions |
Drum Clamp |
Bale Clamp |
|
Carton Clamp |
Fork Positioner |
Push-Pull |
Tilting Fork |
|
Side-shifting Fork Positioner |
Carpet Pole |
Crane Jib |
Rotator |
|
Special Mast Options |
||||
|
2-Stage Full-Free |
3-Stage Full-Free |
Widened |
Extended Forks |
Special Forks |
|

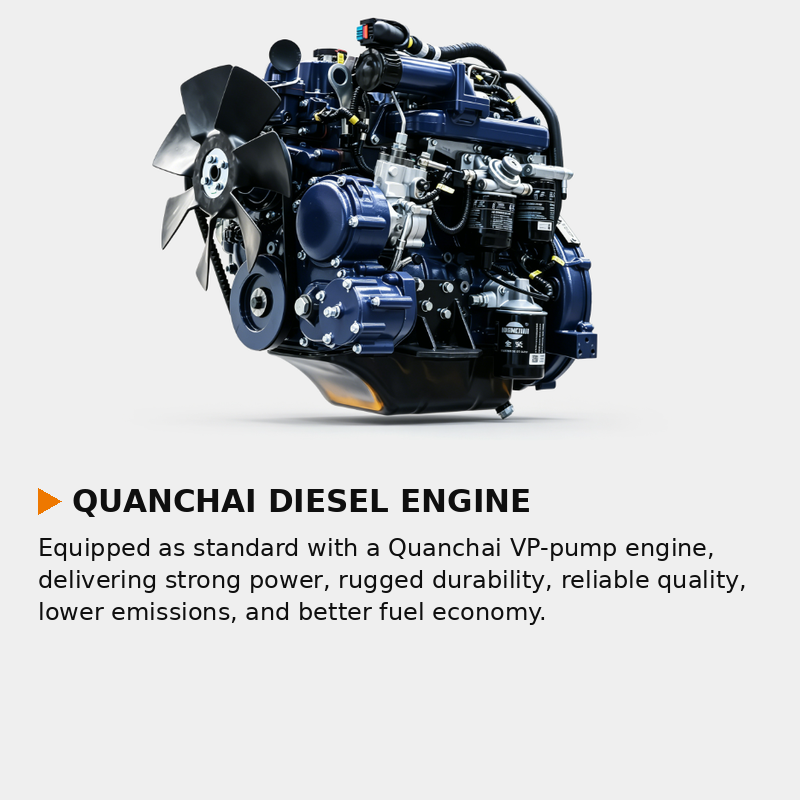

Engine Options |
||||||
|
Model |
Unit |
Quanchai |
4C3 -50V33 |
Quanchai |
Xinchai |
Isuzu C240 |
|
Emission |
|
China III |
China III |
China IV |
China II |
China III |
|
Fuel |
|
Diesel |
Diesel |
Diesel |
Diesel |
Diesel |
|
Power |
Kw/r/min |
36.8/2500 |
36.8/2500 |
36.8/2500 |
36.8/2650 |
34.6/2500 |
|
Torque |
N · m/r/min |
170/1800 |
174/1800 |
170/1800 |
156/1700 - 1900 |
139.2/1800 |
|
Displ. |
mL |
2.85 |
2.98 |
2.85 |
2.67 |
2.369 |
|
Models |
|
2-4t |
2-4t |
2-4t |
2-4t |
2-4t |
|
Trans. |
|
Mech./Hydr. |
Mech./Hydr. |
Mech./Hydr. |
Mech./Hydr. |
Mech./Hydr. |
|
|
|
|
|
|
|
|
|
Model |
Unit |
Xinchai |
Xinchai |
Xinchai |
Xinchai |
Xinchai |
|
Emission |
|
China III |
China III |
Euro III |
Euro III |
China IV |
|
Fuel |
|
Diesel |
Diesel |
Diesel |
Diesel |
Diesel |
|
Power |
Kw/r/min |
36.8/2500 |
36.8/2500 |
36.8/2650 |
36.8/2400 |
36.8/2500 |
|
Torque |
N · m/r/min |
156/1700 - 1900 |
174/1800 - 2000 |
156/1700 - 1900 |
186/1600-1800 |
165/1600-1800 |
|
Displ. |
mL |
2.67 |
2.98 |
2.67 |
3.168 |
2.85 |
|
Models |
|
2-4t |
2-4t |
2-4t |
2-4t |
2-4t |
|
Trans. |
|
Mech./Hydr. |
Mech./Hydr. |
Mech./Hydr. |
Mech./Hydr. |
Mech./Hydr. |
|
|
|
|
|
|
|
|
|
Model |
Unit |
Xinchai |
Yanmar |
Mitsubishi S4S |
Cummins |
Cummins |
|
Emission |
|
Euro V |
China III |
China III |
China III |
China III |
|
Fuel |
|
Diesel |
Diesel |
Diesel |
Diesel |
Diesel |
|
Power |
Kw/r/min |
44.8/2400 |
42.1/2300 |
35.3/2250 |
36/2500 |
43/2500 |
|
Torque |
N · m/r/min |
185/1600 - 1800 |
177.6 - 196.3/1700 |
177/1700 |
186/1100 - 1500 |
186/1500 |
|
Displ. |
mL |
2.23 |
3.319 |
3.331 |
2.8 |
2.8 |
|
Models |
|
3-3.5t |
2-4t |
2-4t |
2-4t |
2-4t |
|
Trans. |
|
Hydraulic |
Mech./Hydr. |
Hydraulic |
Hydraulic |
Hydraulic |
|
|
|
|
|
|
|
|
|
Model |
Unit |
Guangqing |
Nissan K25 |
Kubota V2403 |
Kubota |
|
|
Emission |
|
Euro II |
None |
US Tier 4 / Euro V |
US Tier 4 / Euro V |
|
|
Fuel |
|
Gasoline |
Gasoline |
Diesel |
Gasoline/LPG |
|
|
Power |
Kw/r/min |
37/2800 |
37.4/2250 |
42.6/2400 |
41.3/2600 |
|
|
Torque |
N · m/r/min |
163/1800 |
143.7/1600 |
198.5/1600 |
173/1800 |
|
|
Displ. |
mL |
2.237 |
2.488 |
2.4 |
2.5 |
|
|
Models |
|
2-4t |
2-4t |
3-3.8t |
3-3.8t |
|
|
Trans. |
|
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
|
