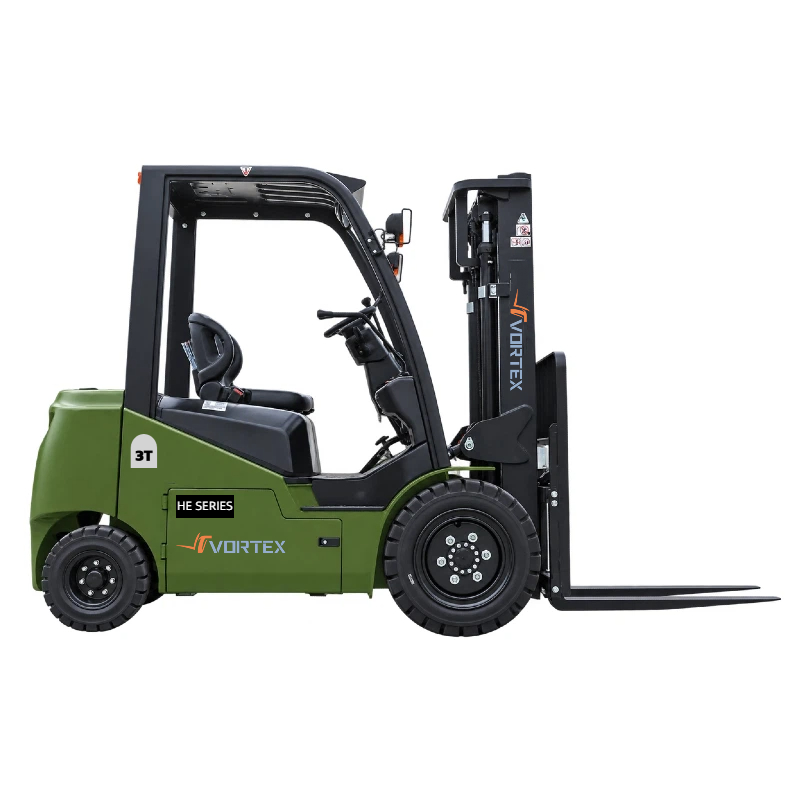

Vortex HE Series Lithium Electric Forklift

Overview

The HE Series electric forklift is designed for efficient, reliable, and comfortable material handling in warehouses, factories, logistics centers, and distribution facilities. With responsive electric drive, smooth operation, and a durable structure, the HE Series delivers dependable performance for a wide range of indoor and outdoor handling applications.

Powered by an efficient electric system, the HE Series offers low noise, zero emissions during operation, and reduced maintenance requirements compared with traditional internal combustion forklifts. Its ergonomic operator layout, clear multifunction display, and intuitive controls help improve driving comfort and daily productivity.

Built for demanding working environments, the HE Series combines practical design, stable handling, and reliable performance, making it a versatile solution for businesses looking to improve material handling efficiency.

* Efficient Reliable Built for Everyday Productivity*

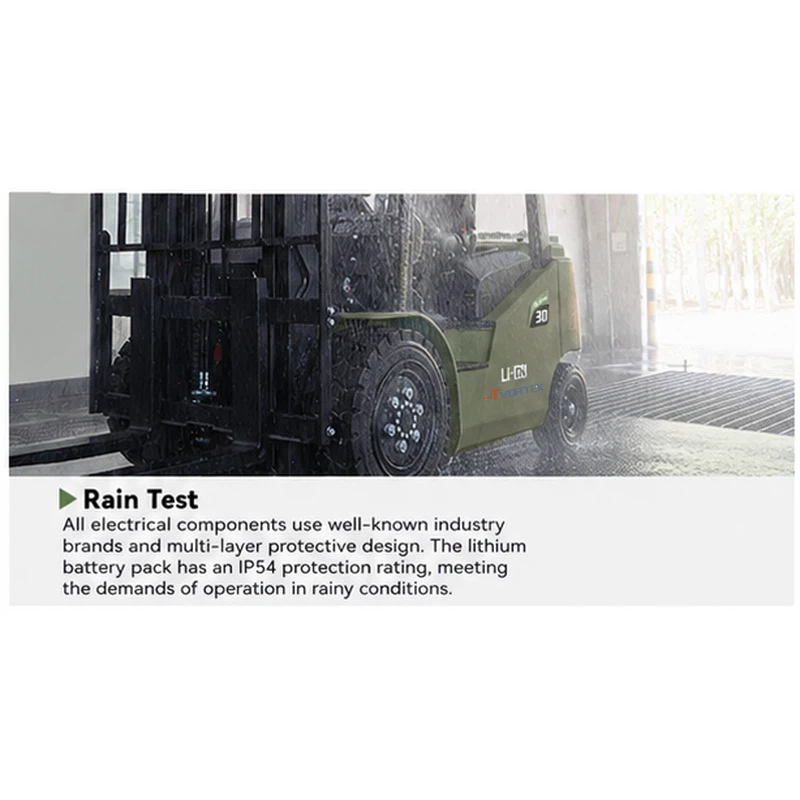

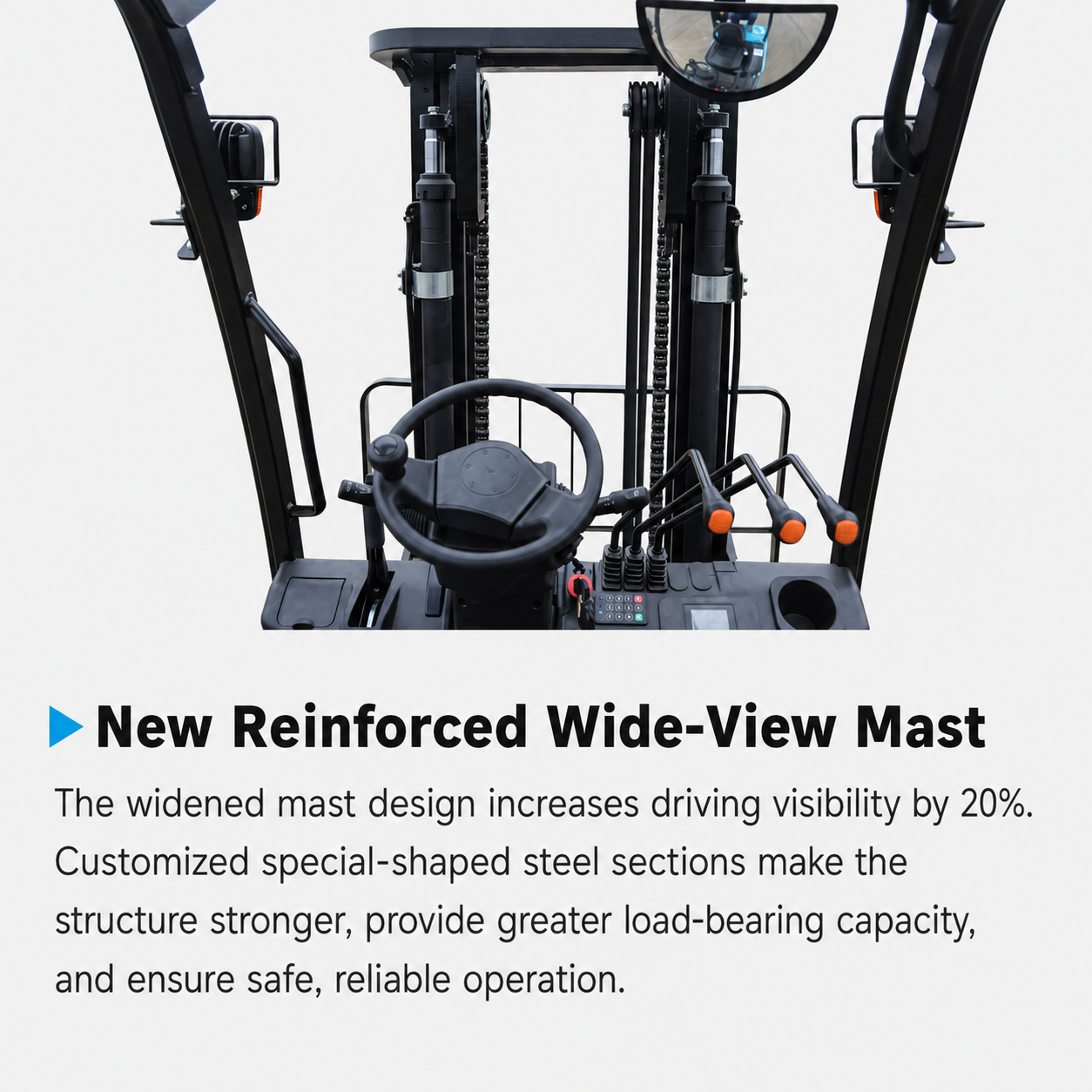

The HE Series electric forklift combines powerful performance, intelligent control, and operator-friendly design to meet the demands of modern material handling.

Designed for warehouses, manufacturing plants, logistics operations, and distribution centers, the HE Series provides smooth acceleration, stable lifting, and precise handling throughout the working day. Its efficient electric drive system helps reduce operating noise and maintenance requirements while providing clean, emission-free operation.

With a comfortable operator compartment, easy-to-use controls, excellent visibility, and durable components, the HE Series is built to deliver consistent productivity across a wide range of applications.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

*Key Features*

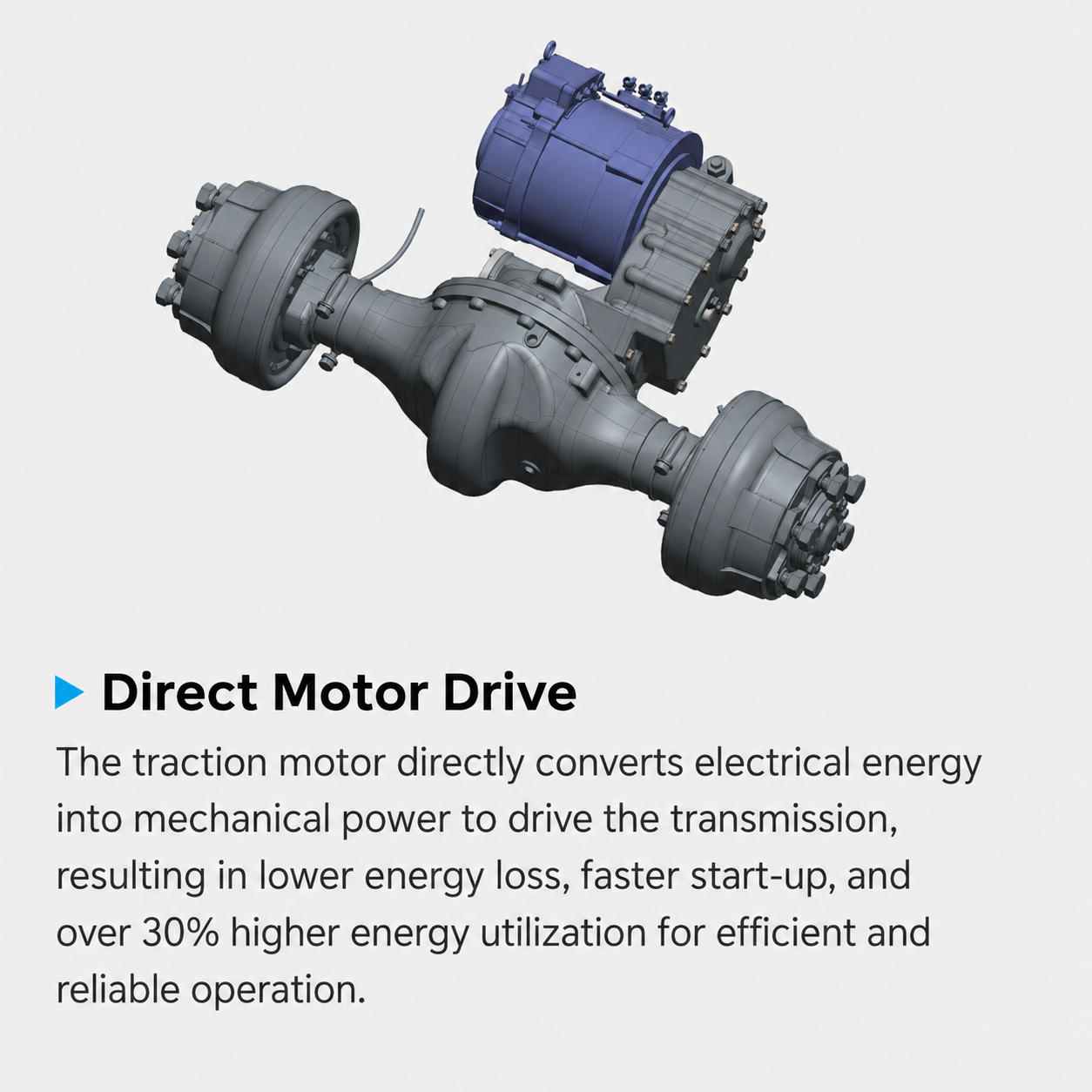

*Efficient Electric Drive — Smooth power delivery with low operating noise and reduced maintenance.

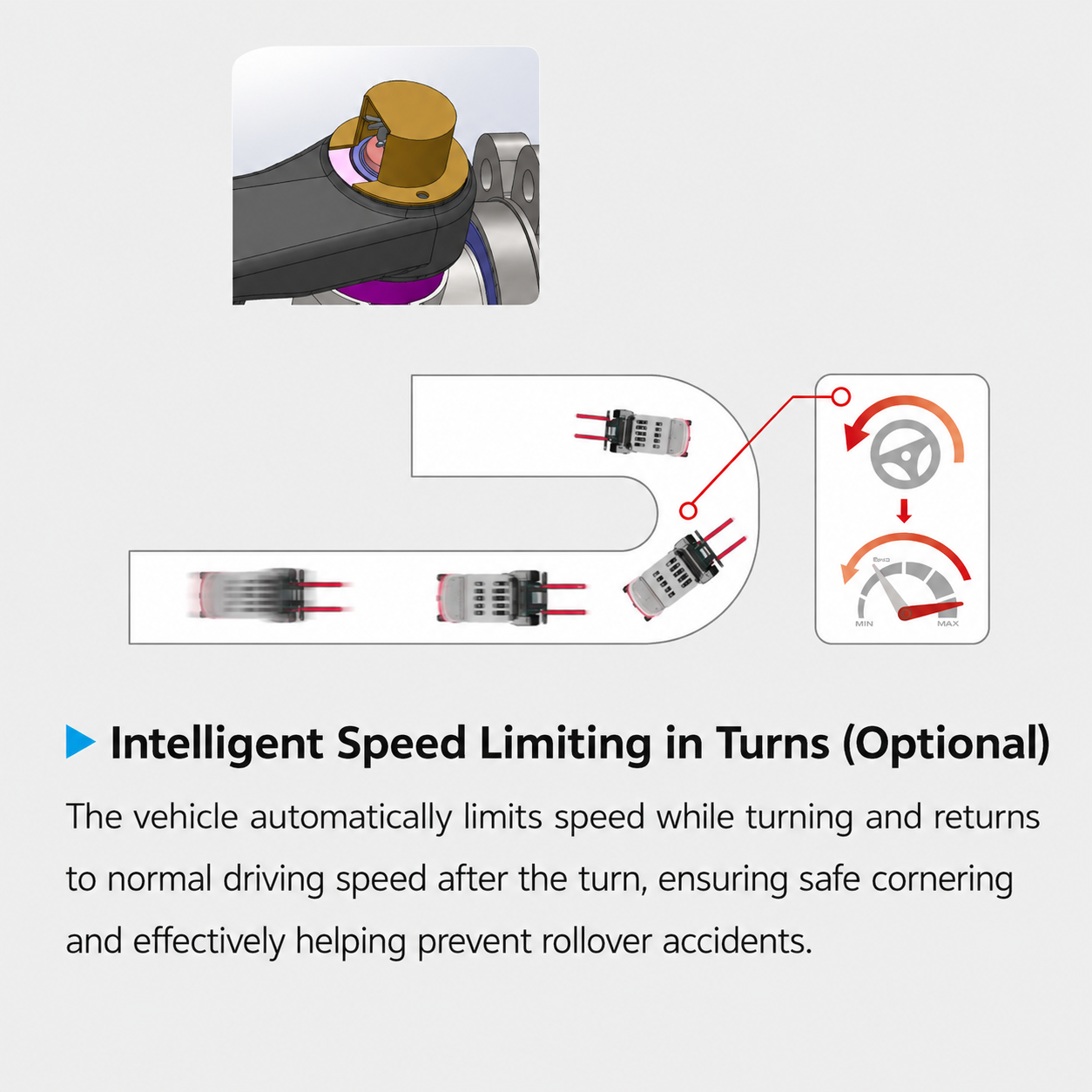

*Stable Performance — Designed for dependable lifting, traveling, and load handling.

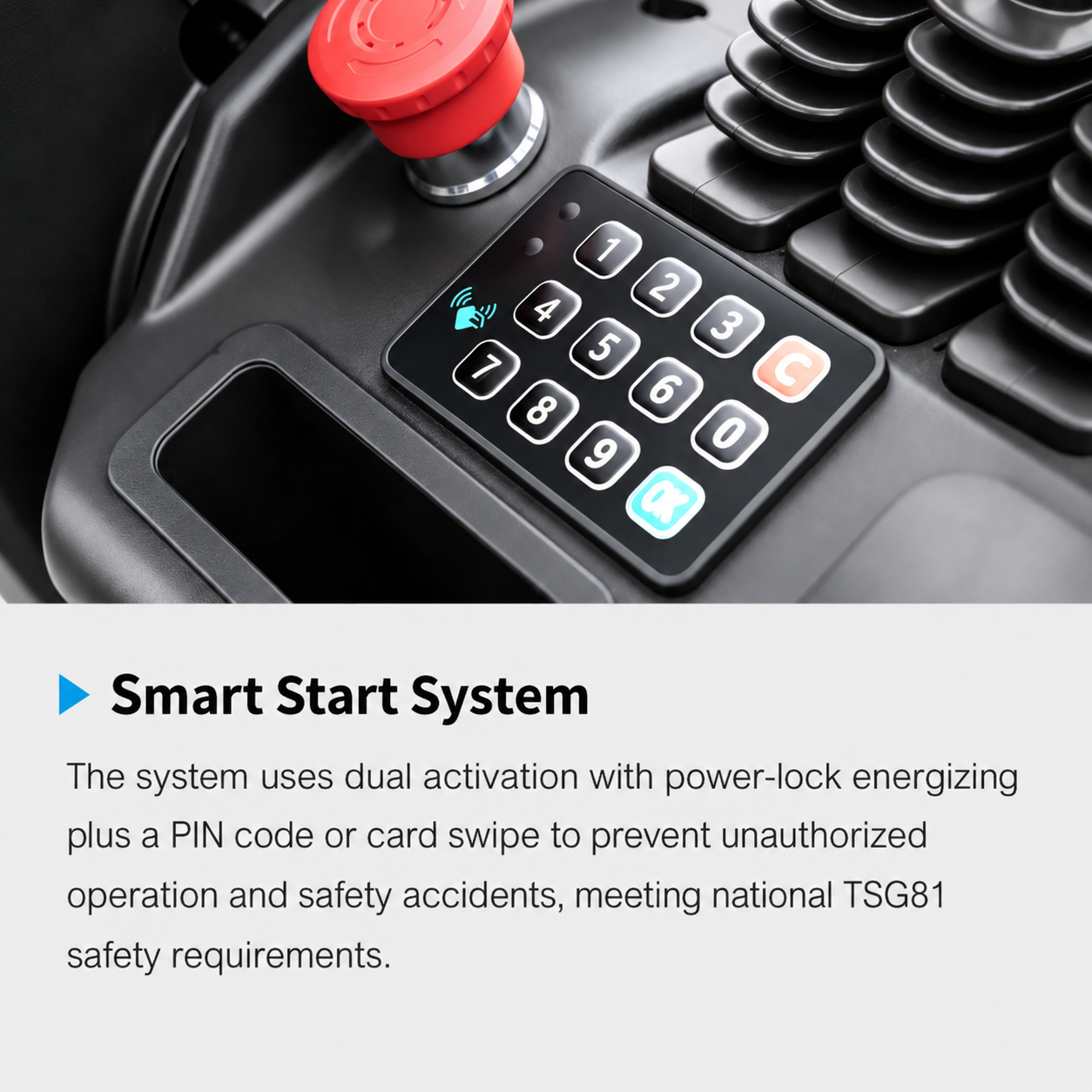

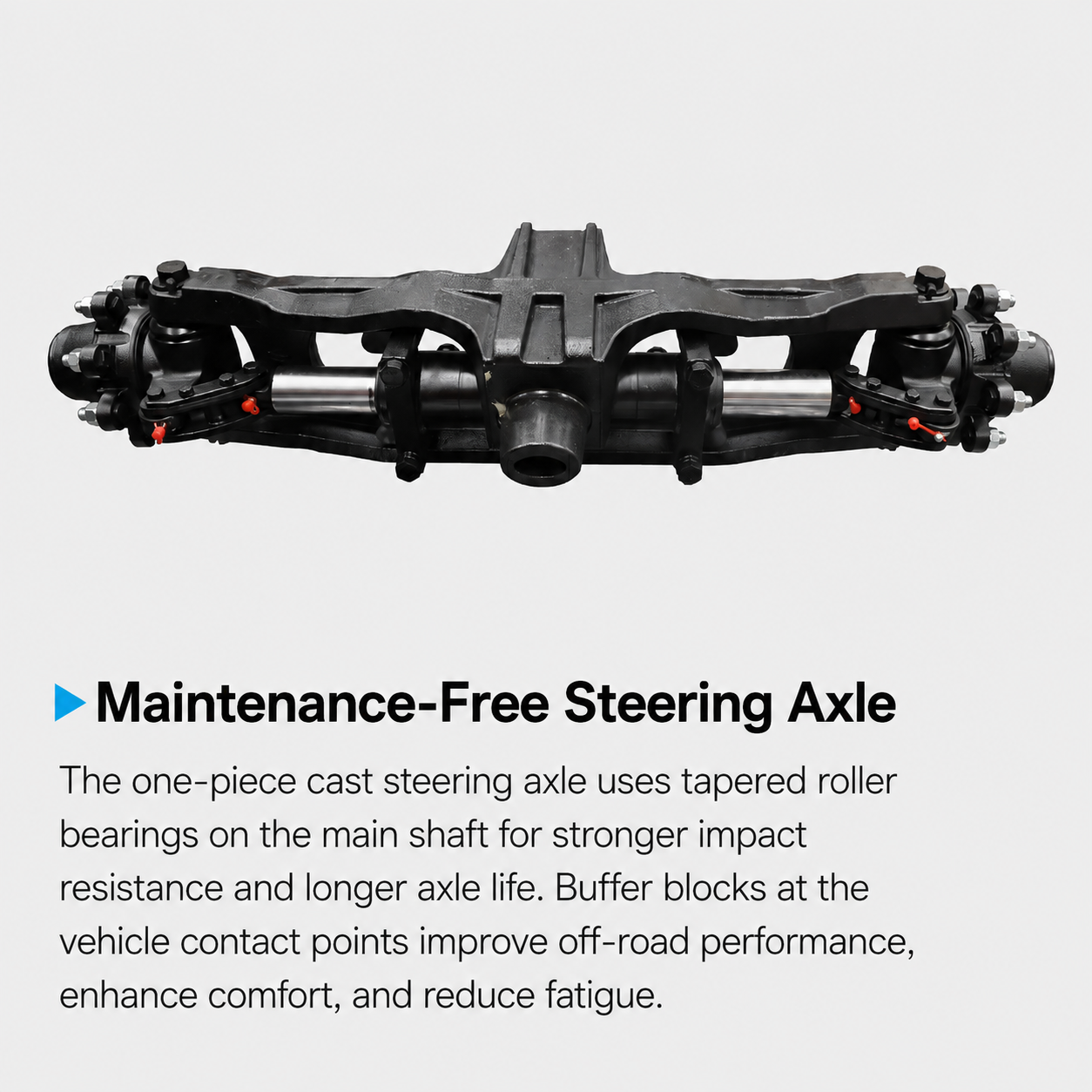

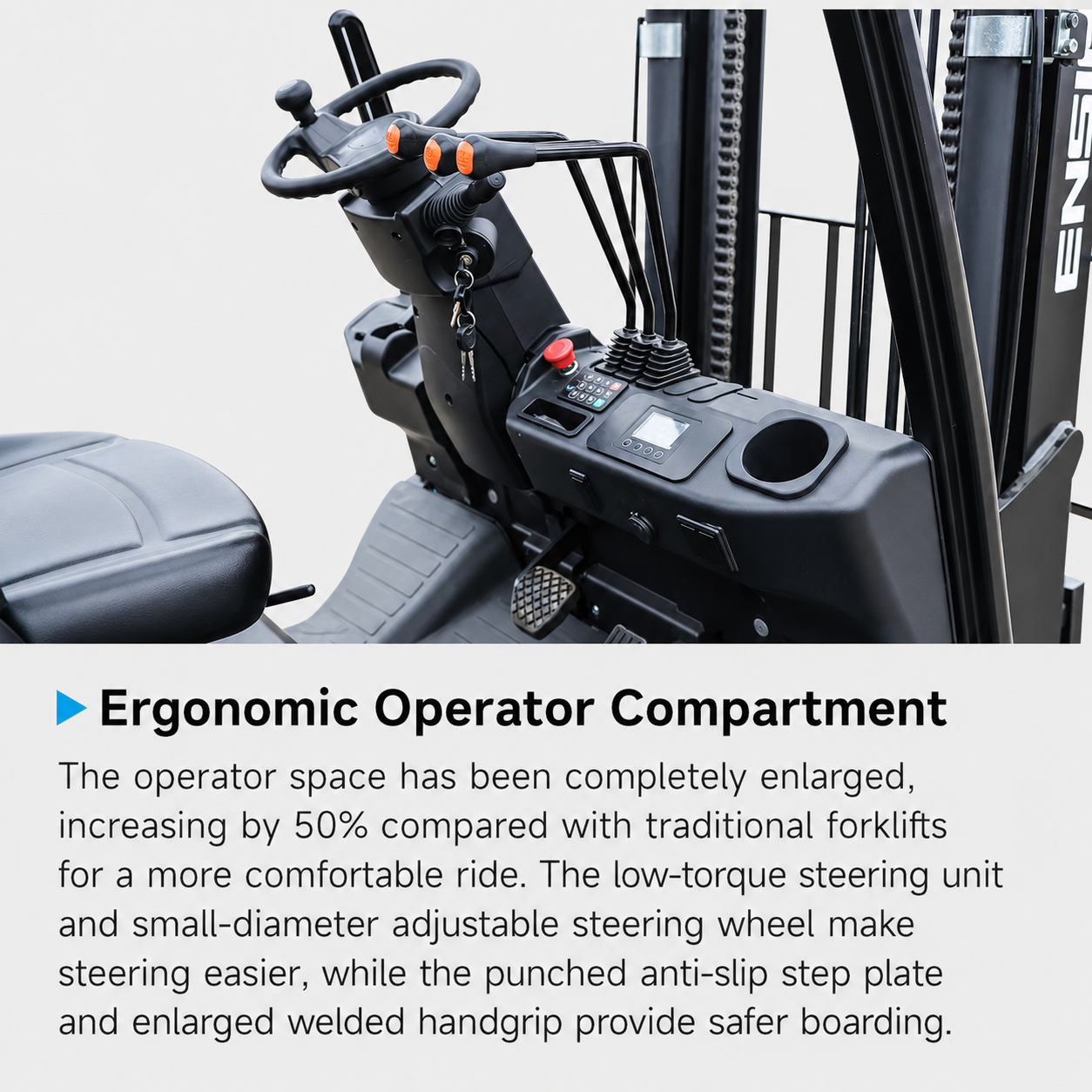

*Operator Comfort — Ergonomic seating, intuitive controls, and optimized visibility for long working shifts.

*Easy Operation — Multifunction display and conveniently positioned controls simplify daily operation.

*Durable Construction — Robust chassis and proven components for demanding material handling environments.

*Flexible Applications — Suitable for warehouses, factories, logistics centers, loading areas, and general material handling.

Basic Parameters
Model - Series		CPD-HE15	CPD-HE18	CPD-HE20X	CPD-HE20	CPD-HE25	CPD-HE30	CPD-HE35	CPD-HE40X
Configuration No.		HE15-SJ03-L 125	HE18-SJ03-L 125	HE20X-SJ03-L 125	HE20-SJ01-L 150	HE25-SJ01-L 150	HE30-SJ01-L 202	HE35-SJ01-L 202	HE40X-SJ01-L 280
Power Type		Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric
Voltage Platform	V	80	80	80	80	80	80	80	80
Operator Type		Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated

Dimensions
Rated Capacity	kg	1500	1800	2000	2000	2500	3000	3500	4000
Load Center	mm	500	500	500	500	500	500	500	500
Front Overhang	mm	415	415	415	460	460	475	480	490
Wheelbase	mm	1410	1410	1410	1520	1520	1650	1650	1750
Service Weight (with/without battery)	kg	2750/2580	3000/2830	3150/2980	3650/3470	3950/3770	4500/4280	4800/4580	5250/5000
Axle Load, Laden (F/R)	kg	3850/400	4310/490	4460/540	5060/590	5780/670	6750/750	7530/770	8320/930
Axle Load, Unladen (F/R)	kg	1150/1600	1200/1800	1250/1900	1530/2120	1580/2370	1830/2670	1880/2920	2090/3160
Tire Type		Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic front / solid rear	Pneumatic front / solid rear	Pneumatic front / solid rear
Wheels (x=drive wheel)		2x/2	2x/2	2x/2	2x/2	2x/2	2x/2	2x/2	2x/2
Front Tire Size		6.50-10-10PR	6.50-10-10PR	6.50-10-10PR	7.00-12-12PR	7.00-12-12PR	28× 9-15-14PR	28× 9-15-14PR	250-15-14PR
Rear Tire Size		5.00-8-8PR	5.00-8-8PR	5.00-8-8PR	18× 7-8-14PR	18× 7-8-14PR	200/15-10	200/15-10	200/15-10
Front Tread	mm	925	925	925	970	970	1000	1000	1055
Rear Tread	mm	930	930	930	960	960	980	980	980
Mast Tilt (F/R)	6	6/12	6/12	6/12	6/12	6/12	6/12	6/12
Mast Height, Lowered	mm	1985	1985	1985	2000	2000	2125	2125	2135
Free Lift Height	mm	135	135	135	130	130	130	135	135
Max. Lift Height	mm	3000	3000	3000	3000	3000	3000	3000	3000
Max. Height, Extended	mm	4045	4045	4045	4030	4030	4190	4190	4200

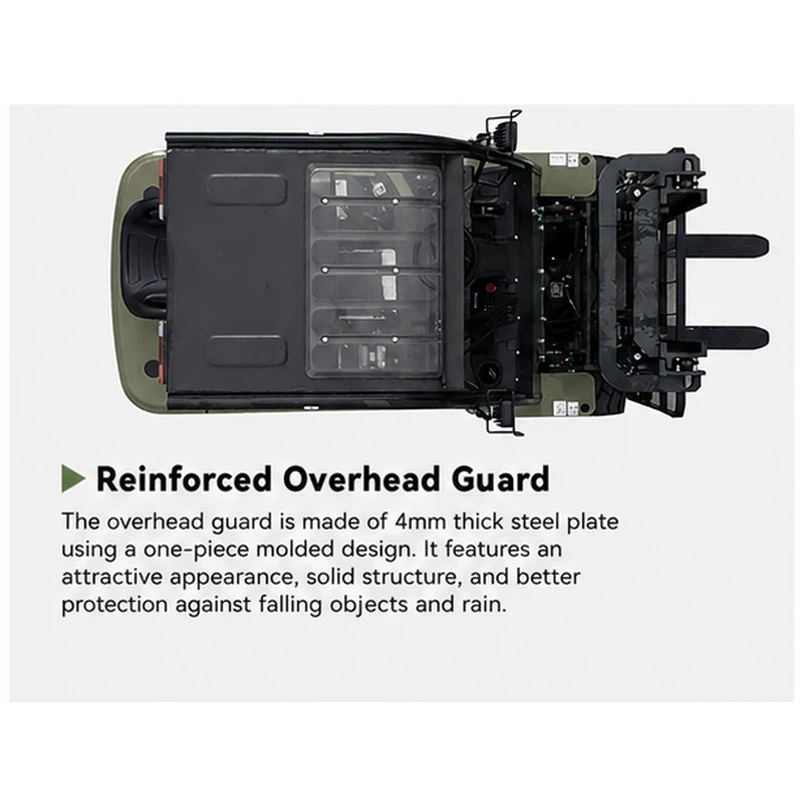

Overhead Guard Height	mm	2100	2100	2100	2140	2140	2160	2160	2170
Truck Length (to fork face)	mm	2160	2160	2160	2335	2335	2475	2480	2580
Truck Width	mm	1130	1130	1130	1170	1170	1225	1225	1335
Fork Size (T x W x L)	mm	35×100×920	35×100×920	35×100×920	40×120×1070	40×120×1070	45×122×1070	50×122×1070	50×122×1070
Fork Spacing Outside (min./max.)		210–1025	210–1025	210–1025	250–1085	250–1085	260–1085	260–1085	260–1085
Mast Ground Clearance (unladen)	mm	100	100	100	115	115	135	135	145
Min. Ground Clearance	mm	85	85	85	145	145	150	150	160

Performance
Min. Turning Radius	mm	1960	1960	1960	2090	2090	2270	2270	2370
Max. Travel Speed (laden/unladen)	km/h	14/15	14/15	14/15	15/15	15/15	15/15	15/15	15/15
Max. Lift Speed (laden/unladen)	mm/s	320/400	300/400	300/400	350/450	350/450	360/400	340/400	320/400
Lowering Speed (laden/unladen)	mm/s	520/480	520/480	520/480	540/450	540/450	390/380	390/380	380/370
Max. Drawbar Pull (laden)	N	11000	11000	11000	19500	19500	18500	18500	18000
Gradeability (laden/unladen)	%	20/20	15/20	15/20	20/25	20/25	17/25	16/25	15/20

Motors and Controller
Service Brake (mechanical, electronic, hydraulic)		Hydraulic			Hydraulic		Hydraulic		Hydraulic
Parking Brake (mechanical, electronic, hydraulic)		Mechanical			Mechanical		Mechanical		Mechanical
Traction Motor Rated Power, S2 60 min Duty	kW	12AC			16AC		16AC		16AC
Pump Motor Rated Power, S3 15% Duty	kW	18AC			24AC		24AC		24AC
Motor Type / Protection		AC Induction \IP54			AC Induction \IP54		AC Induction \IP54		AC Induction \IP54

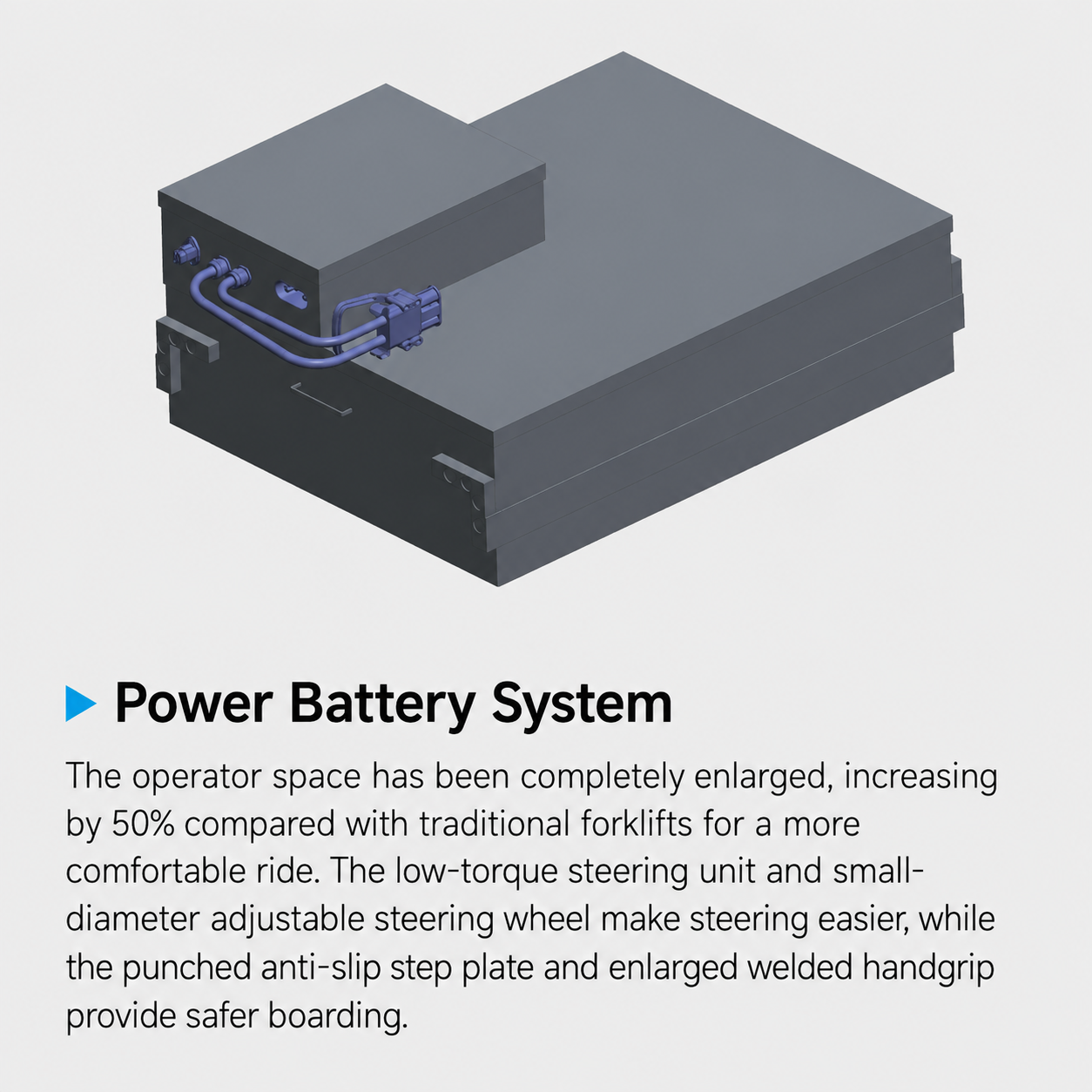

Battery Type		Lithium iron phosphate			Lithium iron phosphate		Lithium iron phosphate		LiFePO4
Std. Battery Voltage / Capacity	V/A h	76.8/125			76.8/150		76.8/202		76.8/280
Std. Battery Weight	kg	170			180		220		250
Battery Heating / Protection		Low-temp Electric Heating \IP54			Low-temp Electric Heating \IP54		Low-temp Electric Heating \IP54		Low-temp Electric Heating \IP54
Battery Warranty (whichever comes first)		5 years or 10,000 hours			5 years or 10,000 hours		5 years or 10,000 hours		5 years or 10,000 hours
MCU Controller Type		MOSFET/AC			MOSFET/AC		MOSFET/AC		MOSFET/AC
MCU Controller Model		ACM80C250			ACM80C450		ACM80C450		ACM80C450

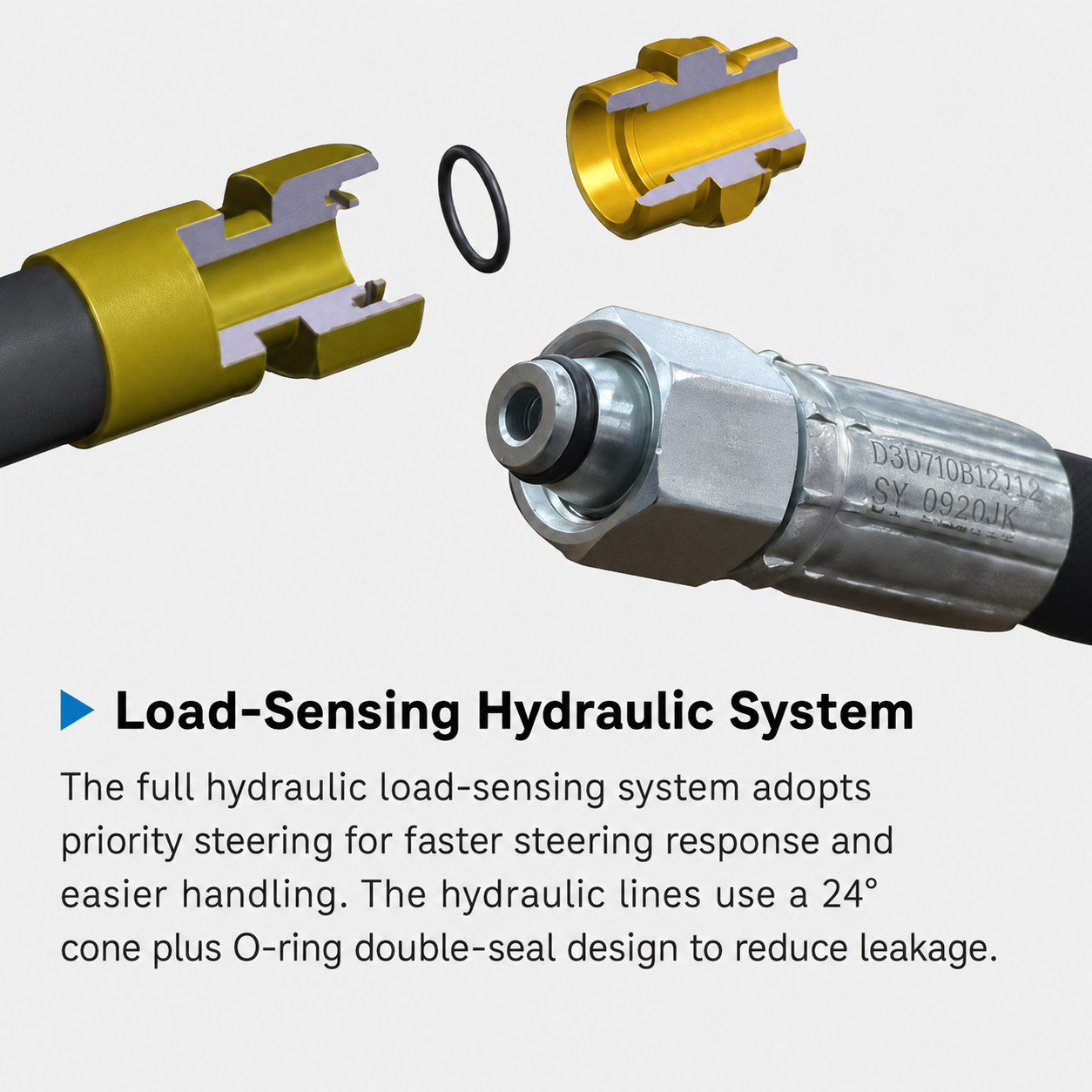

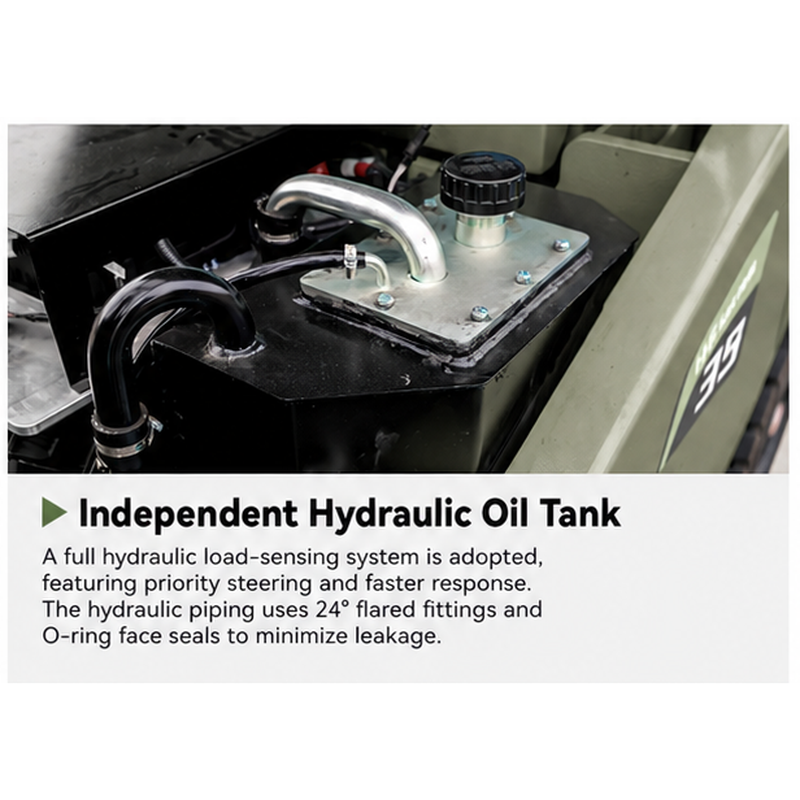

Hydraulic Working Pressure	Mpa	17.5			21		21		21

Standard Equipment
Standard 2-Stage Mast	Standard Forks	Fork Carriage	Integrated Combination Switch	Lift & Tilt Levers	Speed Mode Selection
Load Backrest	Low-Noise Gear Pump	Multifunction Display	Emergency Power Cutoff	Reverse Buzzer	Tow Pin
Lift Controller	LED Headlights	Turn Signals	Center Rearview Mirror	Drive	Standard LiFePO4 Battery

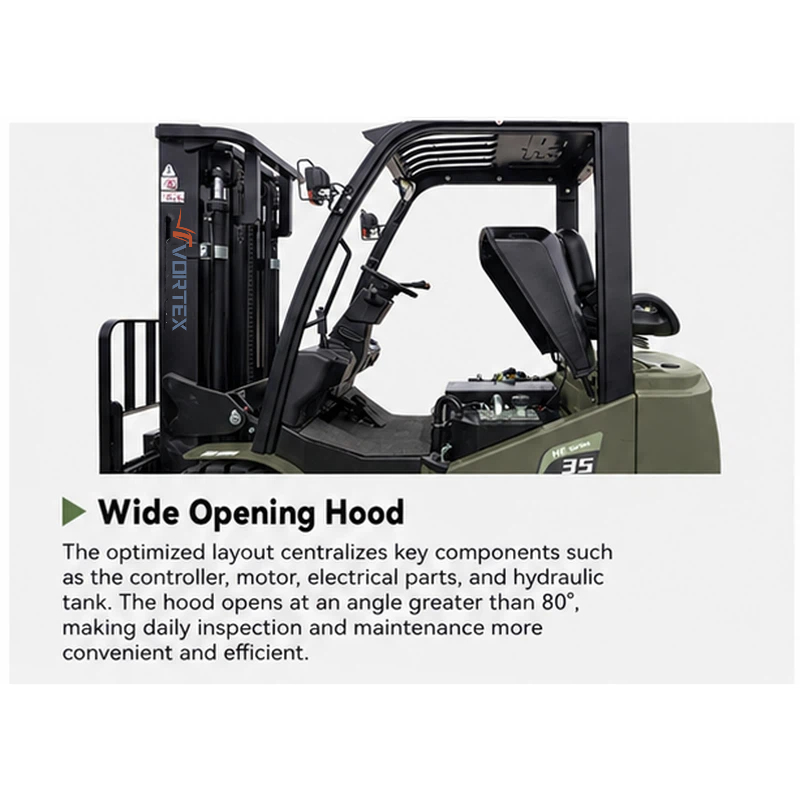

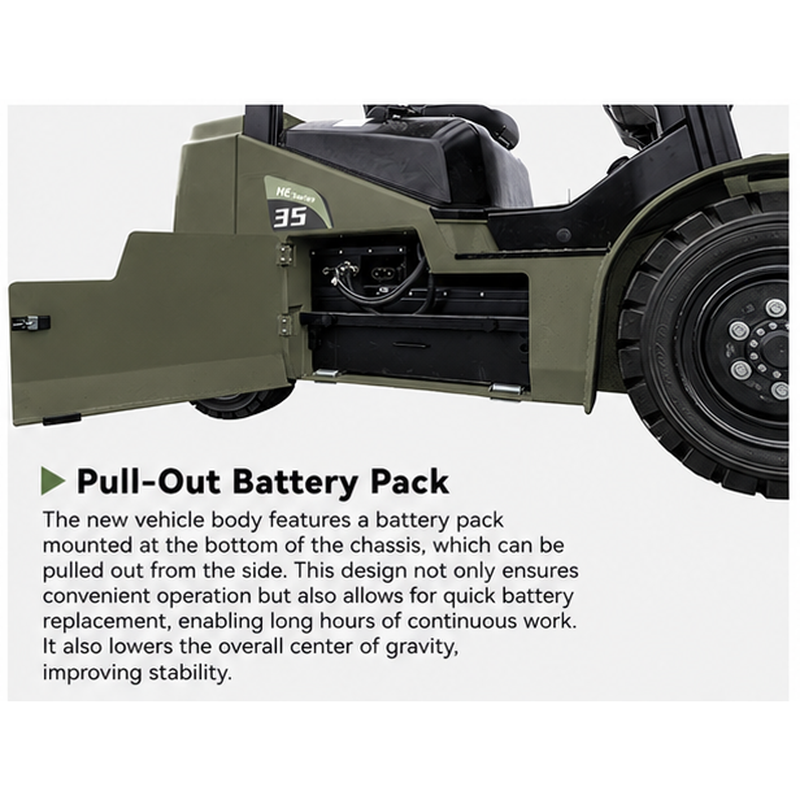

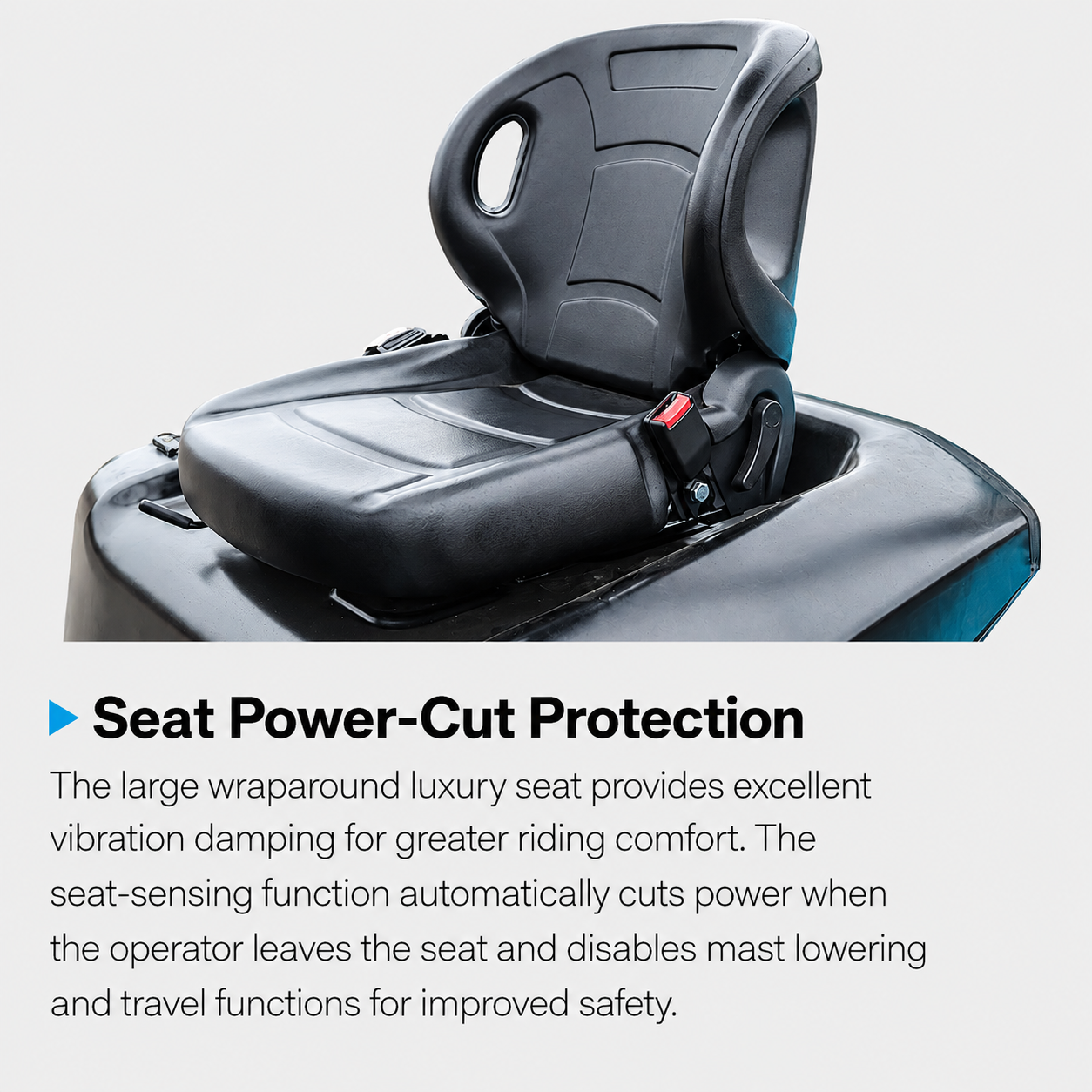

LED Rear Combination Lights	One-Piece Rubber Floor Mat	2-Spool Control Valve	Wraparound Seat	Side-Access Battery Replacement	Onboard Toolbox
Rain Canopy	Dual USB Ports

Optional Equipment
Charger	4-Spool Control Valve	Other Fork Lengths	Solid Tires
Rear Work Light	Dual Front Tires	3-Stage Full Free Mast	High/Low Overhead Guard
Toolbox	Suspension Seat	Wider/Higher Load Backrest	Cab
Fire Extinguisher	2-Stage Full Free Mast	Front Windshield (with wiper)	Warning Beacon

Optional Attachments
Side Shifter	Paper Roll Clamp	Rotating Clamp	Rotating Forks
Load Stabilizer	Fork Extensions	Drum Clamp	Bale Clamp
Carton Clamp	Fork Positioner	Push-Pull	Tilting Forks
Sideshift Fork Positioner	Ram	Crane Boom	Rotator

Special Mast Options
2-Stage Full Free Mast	3-Stage Full Free Mast	Wide Fork Carriage	High Load Backrest	Extended Forks	Special Forks

Battery Configuration
Applicable Models	Battery Type	Standard	Optional	Optional	Optional
HE Series 1.5-2.0 t	Lithium	125Ah	150Ah	202Ah	280Ah
HE Series 2.0-2.5 t	Lithium	150Ah	202Ah	280Ah	404Ah
HE Series 3.0-3.5 t	Lithium	202Ah	280Ah	404Ah	560Ah
HE Series 4.0 t	Lithium	202Ah	280Ah	404Ah	560Ah

HE series 1.5-ton, 1.8-ton, 2-ton, 2.5-ton, 3-ton, 3.5-ton and 4-ton lithium battery counterbalanced forklifts
