HK30 3 Ton Lithium Electric Forklift | Counterbalance Forklift

HK Seriers 3 Ton Lithium Electric Counterbalance Forklift

*The HK seriers is designed to deliver reliable and efficient material handling performance for warehouses, manufacturing plants, logistics centers and other industrial applications.



*With a rated load capacity of 3000 kg and a standard lifting height of 3000 mm, the forklift provides the capacity required for everyday pallet handling, loading, unloading and material transportation.



*The 3.0-ton configuration uses a 76.8V/202Ah lithium battery system. Combined with direct motor drive technology, the powertrain is designed to reduce energy loss and provide efficient power delivery during frequent operation.

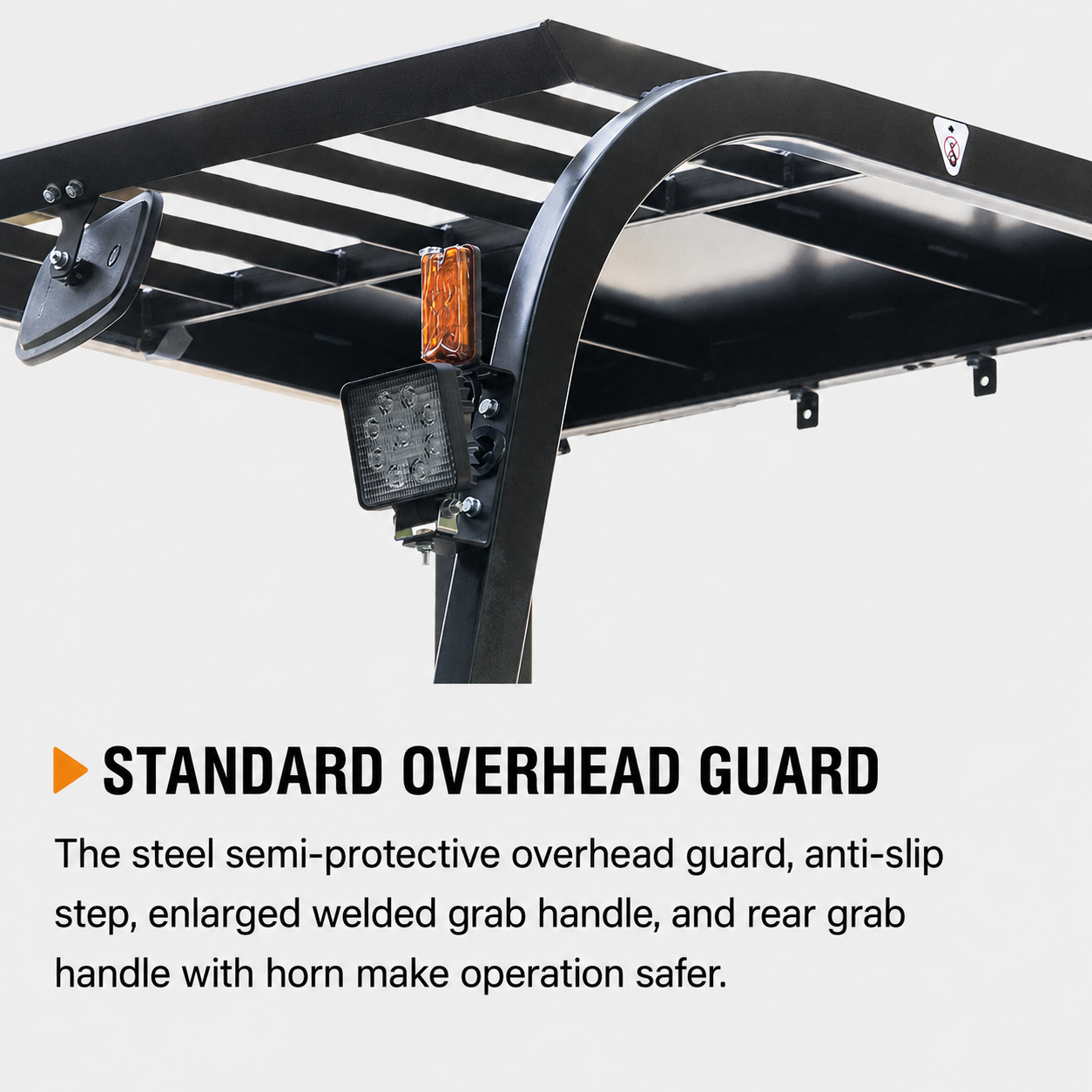

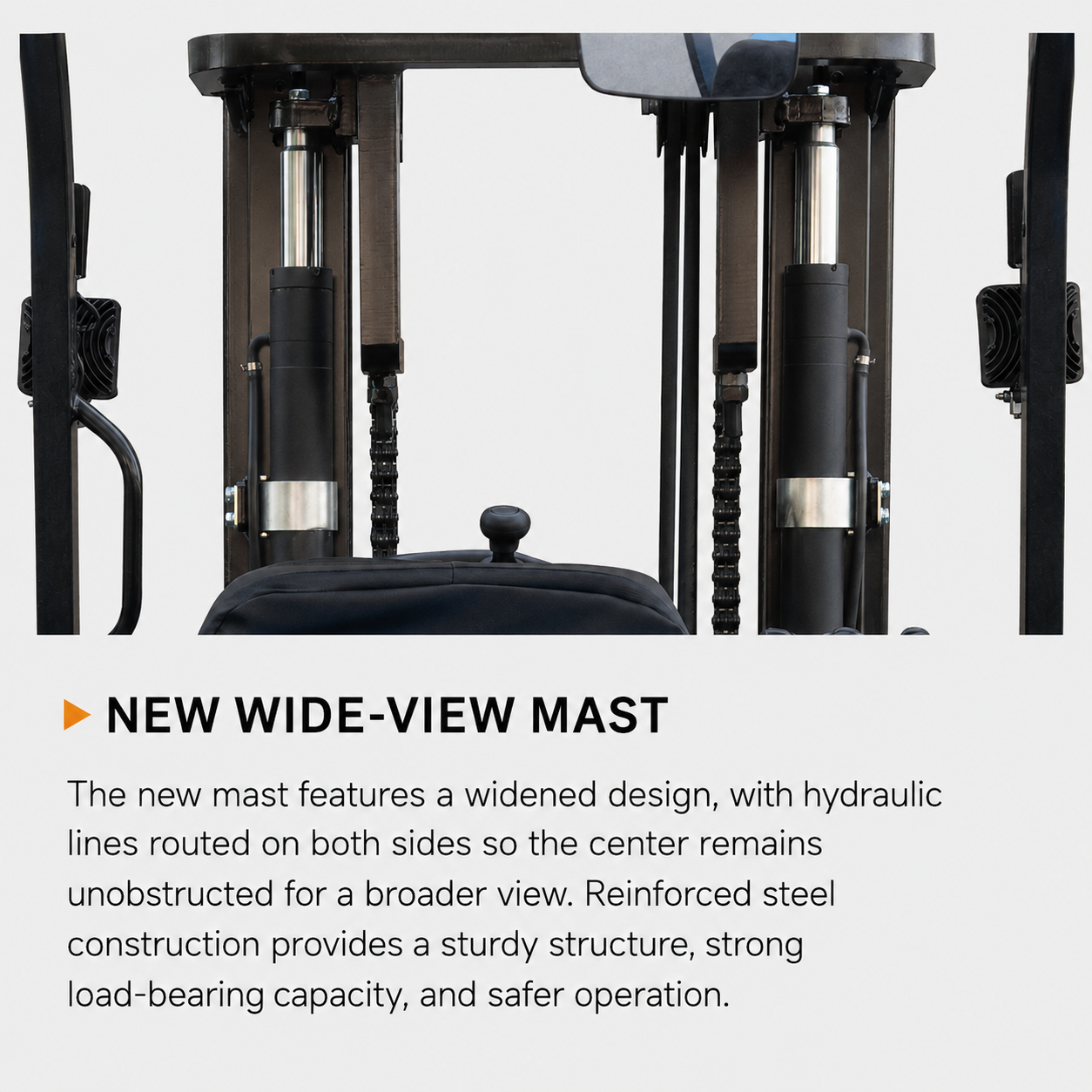

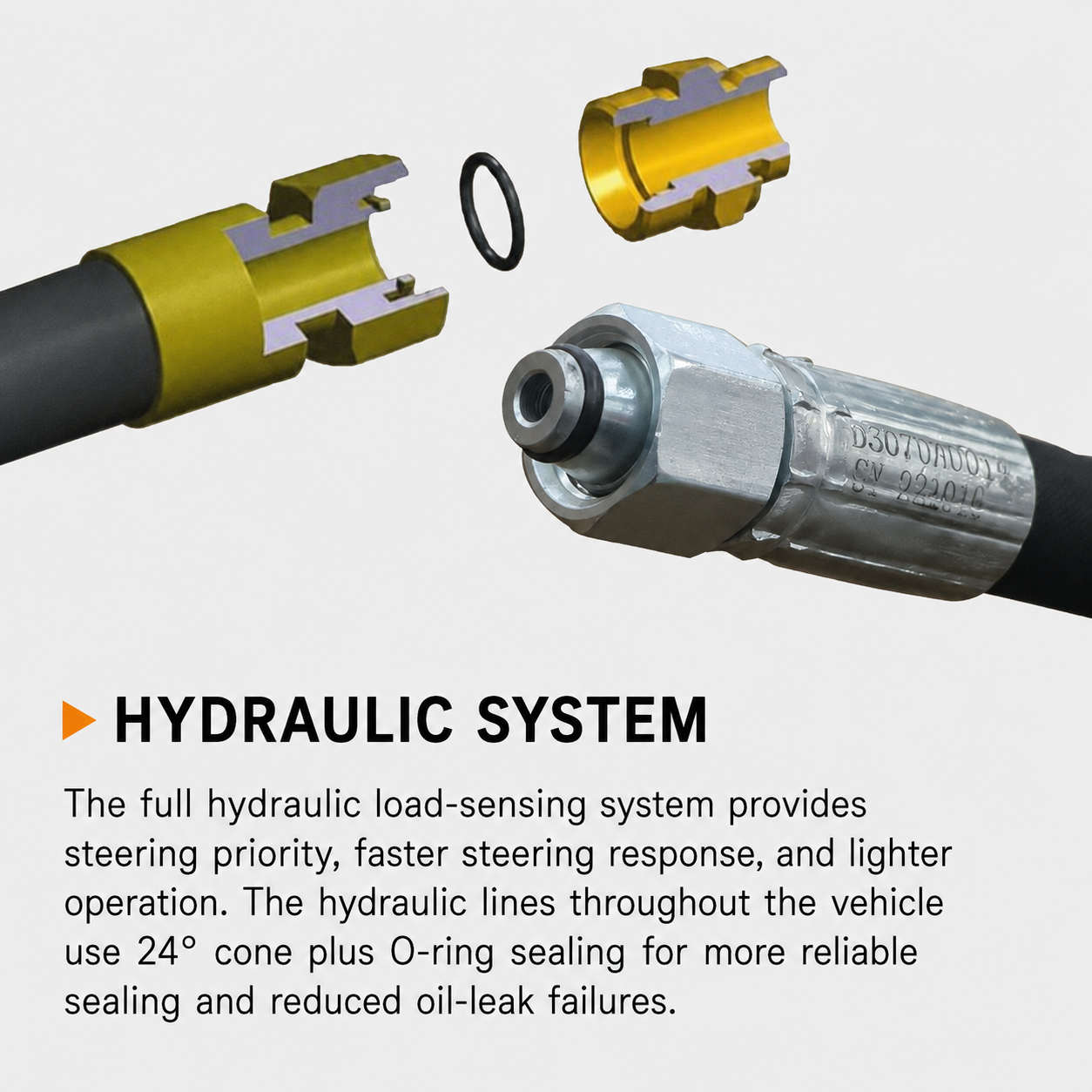

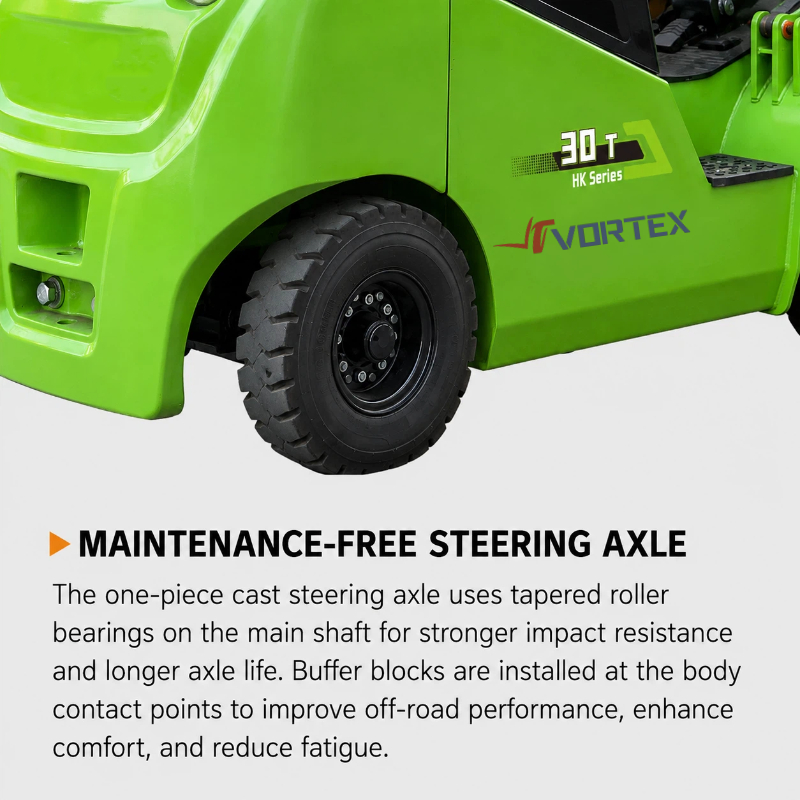

*A full hydraulic load-sensing system provides responsive steering and smooth hydraulic operation. The truck also features a reinforced wide-view mast, maintenance-free steering axle, reinforced overhead guard and an enlarged operator compartment designed to improve visibility, comfort and daily productivity.

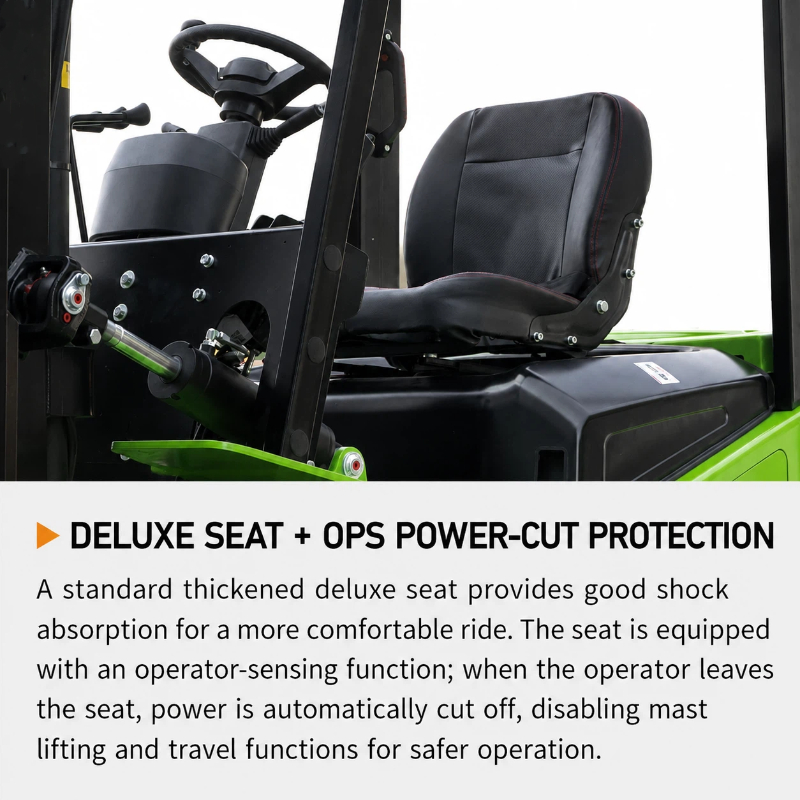

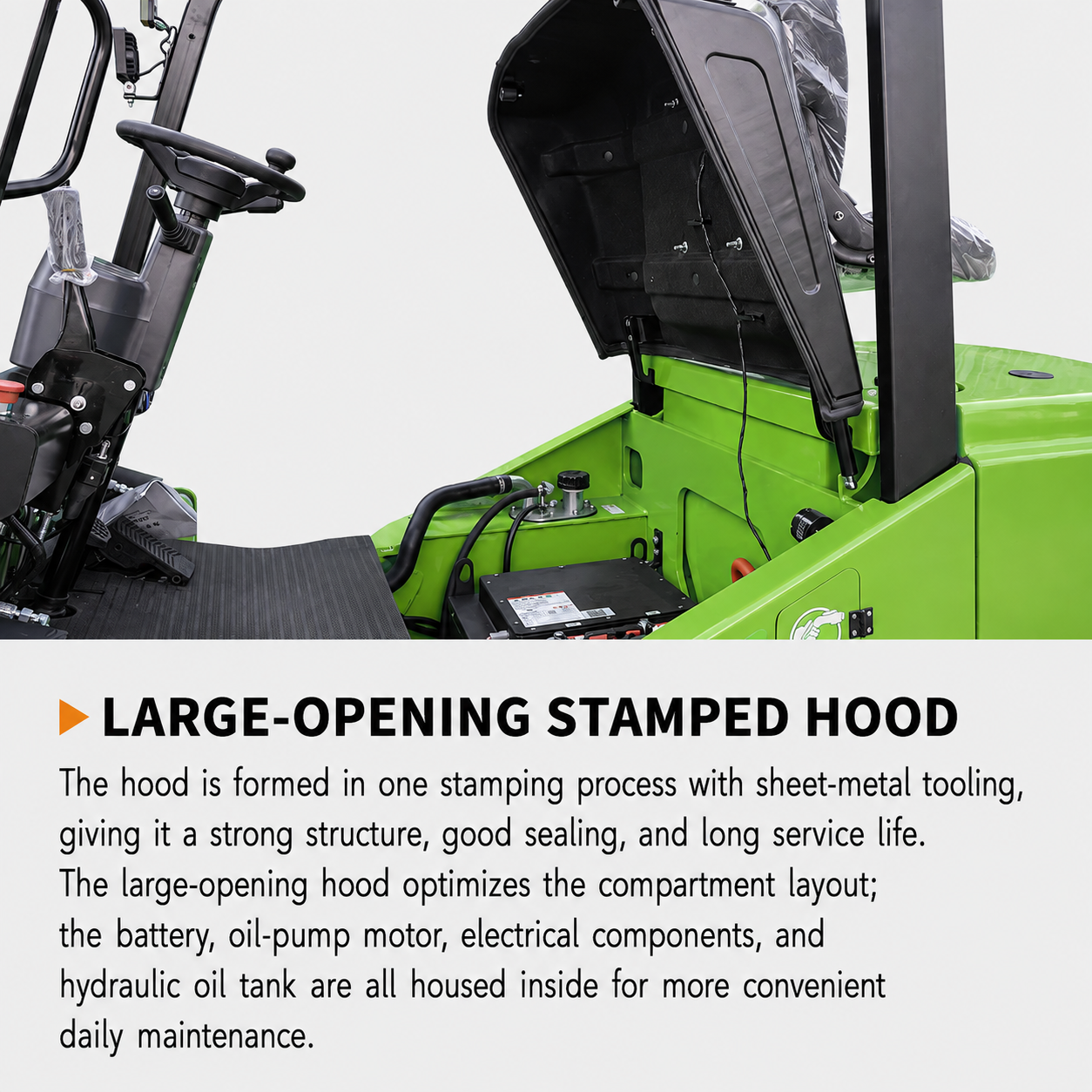

*Easy-access service areas and a wide-opening hood simplify routine inspection and maintenance, while safety features such as seat power-cut protection and a smart start system help support safer operation.


*Different configurations can be customized according to your operating conditions.

# Powerful Performance. Lower Operating Cost.

The Vortex Forklift HK Series Lithium Forklift combines the strong performance and durability of an internal combustion forklift with the efficiency, low maintenance and clean operation of lithium power.

----------------------------------------------------------------

# Strong Performance for Demanding Applications

Built for real-world industrial environments, the HK Series delivers strong acceleration, reliable climbing capability and consistent lifting performance.

Whether operating on ramps, uneven factory roads or busy loading areas, the forklift provides stable and responsive power throughout the working day.

**Key Benefits**

* Strong driving and lifting performance

* Excellent gradeability

* Responsive acceleration

* Suitable for indoor and outdoor operations

* Reliable performance under heavy working conditions

---------------------------------------------------------------

#Lower Total Cost of Ownership

Lithium power helps significantly reduce daily operating and maintenance costs compared with traditional diesel forklifts.

With fewer routine maintenance items and high-efficiency electric drive technology, the HK Series helps customers reduce downtime and achieve a lower total cost of ownership.

**Customer Benefits**

* Lower energy consumption

* Reduced maintenance requirements

* No engine oil or fuel filter replacement

* Less downtime

* Lower long-term operating costs

--------------------------------------------------------------

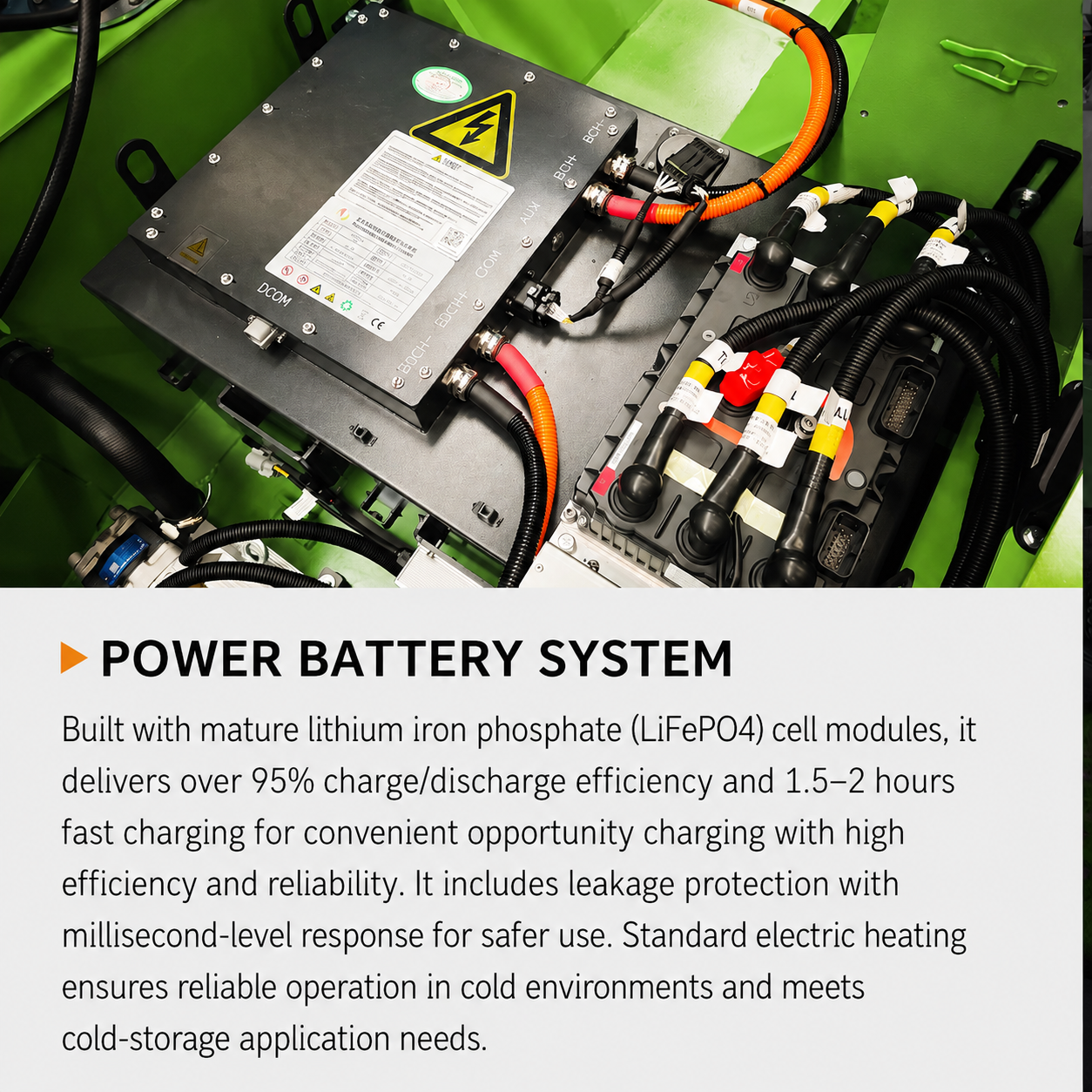

# Lithium Power with Fast Charging

The high-efficiency lithium battery system supports convenient opportunity charging, allowing operators to recharge the forklift during breaks or shift changes.

This helps improve vehicle availability and makes the HK Series suitable for multi-shift material handling operations.

**Advantages**

* Fast and convenient charging

* Opportunity charging supported

* No battery maintenance

* High energy efficiency

* Suitable for multi-shift operation

-------------------------------------------------------------

# Built for Indoor and Outdoor Use

Unlike many warehouse-oriented electric forklifts, the HK Series is designed to handle a wider range of working environments.

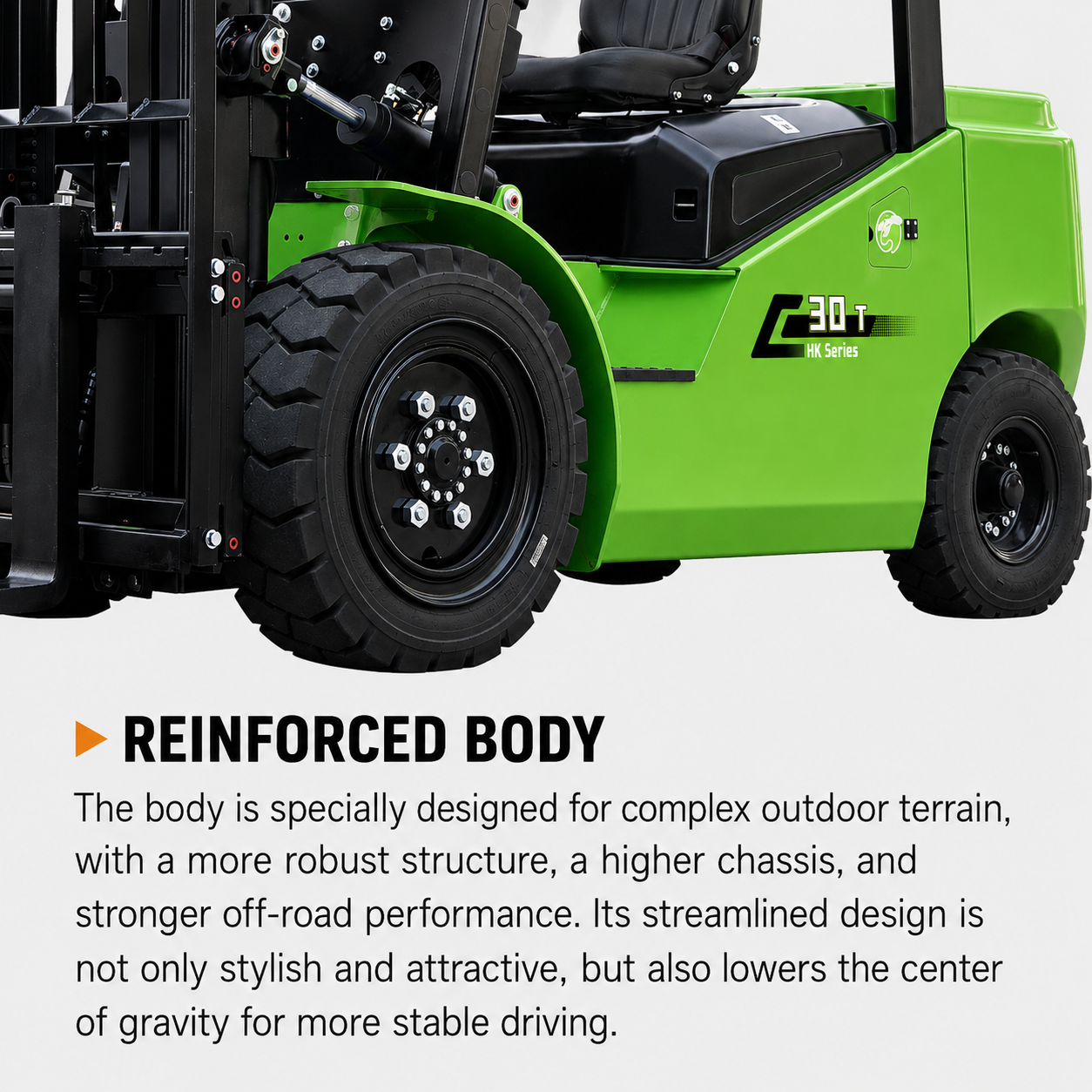

Its robust chassis, practical ground clearance and stable vehicle structure make it suitable for warehouses, workshops, yards, loading areas and factory roads.

**Applicable Scenarios**

* Manufacturing plants

* Warehouses

* Logistics centers

* Loading and unloading areas

* Industrial yards

* Production workshops

-----------------------------------------------------------------

# Stable and Comfortable Operation

A well-balanced vehicle structure helps provide stable handling during lifting, traveling and turning.

The low-noise electric drive system also creates a more comfortable working environment for operators, especially during long shifts.

**Operator Advantages**

* Smooth acceleration

* Low vibration

* Low operating noise

* Comfortable driving experience

* Easy and responsive control

-------------------------------------------------------------------

# Cleaner Alternative to Diesel Forklifts

The HK Series produces zero tailpipe emissions during operation, making it suitable for facilities that require cleaner and quieter material handling equipment.

It provides businesses with an efficient way to replace conventional diesel forklifts without sacrificing practical working performance.

---------------------------------------------------------------

# Reliable Electric Control System

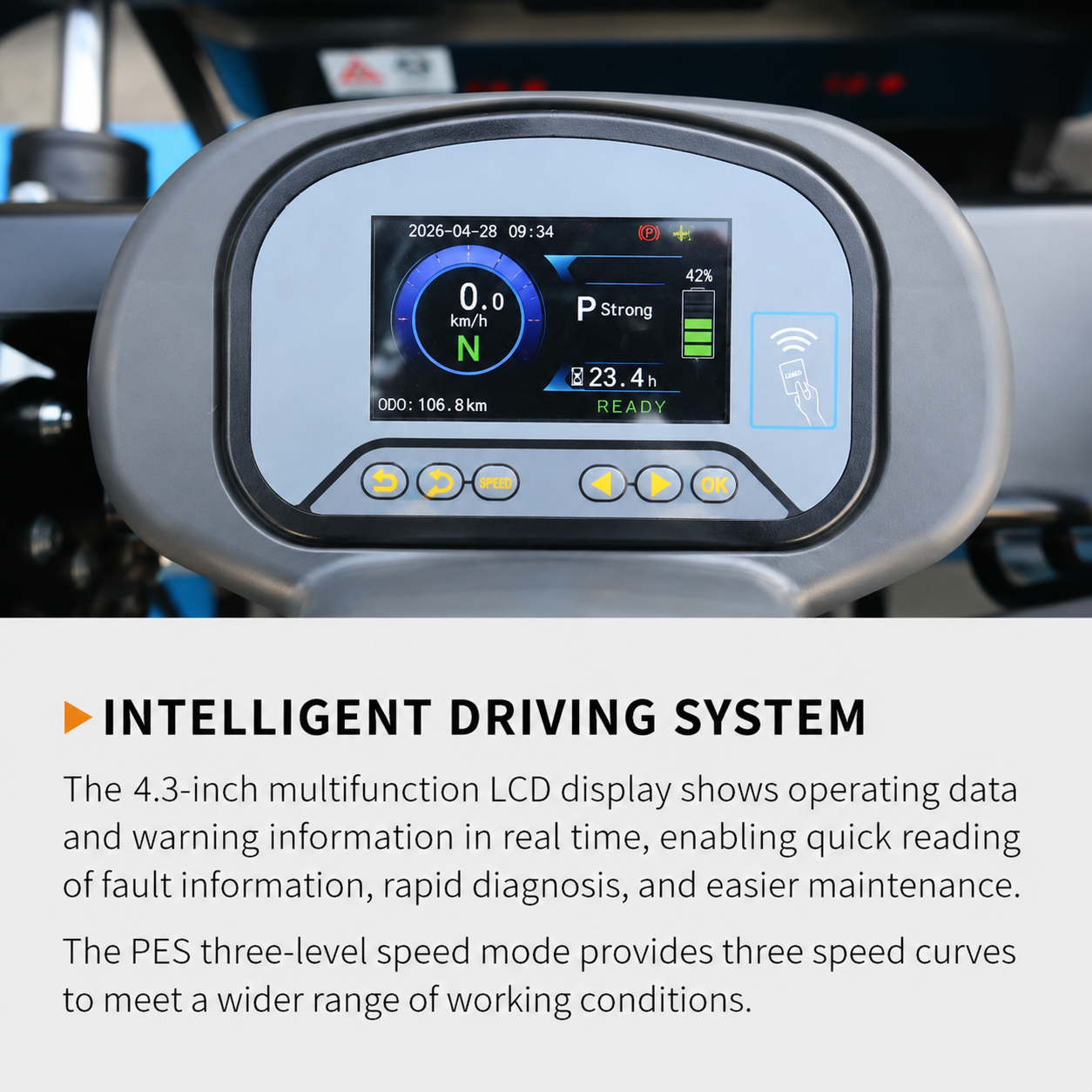

The integrated electric control system continuously monitors key vehicle operating conditions to improve reliability and simplify maintenance and troubleshooting.

The system is designed to provide stable performance throughout daily material handling operations.

**Powerful like a diesel forklift**.

*Efficient like an electric forklift.

*Built for everyday industrial work.

Basic Parameters
Model			CPD-2.0t	CPD-2.5t	CPD-3.0t	CPD-3.5t	CPD-3.5tMAX	CPD-3.8t	CPD-4.0t
Power Type			Electric	Electric	Electric	Electric	Electric	Electric	Electric
Voltage Platform			80V	80V	80V	80V	80V	80V	80V
Operation Type			Seated	Seated	Seated	Seated	Seated	Seated	Seated
Performance Parameters
Rated Capacity		kg	2000	2500	3000	3500	3500	3800	4000
Load Center		mm	500	500	500	500	500	500	500
Front Overhang		mm	460	460	475	480	480	490	490
Rear Overhang		mm	415	415	470	470	470	470	470
Wheelbase	L4	mm	1650	1650	1750	1750	1750	1750	1750
Service Weight (with/without battery)		kg	3200/3020	3500/3320	4250/4050	4550/4350	4600/4360	4850/4610	5000/4760
Axle Load, Laden (Front/Rear)		kg	4730/470	5460/540	6570/680	7220/830	7250/850	8157/493	8487/513
Axle Load, Unladen (Front/Rear)		kg	1410/1790	1540/1960	1880/2370	1820/2730	1840/2760	2996/1854	3160/1840

Dimensions
Tire Type			Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic
No. of Wheels (x = drive wheels)			2x/2	2x/2	2x/2	2x/2	2x/2	2x/2	2x/2
Front Tire Size			7.00-12-12PR	7.00-12-12PR	28x9-15-14PR	28x9-15-14PR	28x9-15-14PR	28x9-15-14PR	250-15-16PR
Rear Tire Size			6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR
Front Tread	W1	mm	970	970	1000	1000	1000	1000	1000
Rear Tread	W2	mm	960	960	970	970	970	970	970
Mast Tilt (F/B)	a/ β	°	6/12	6/12	6/12	6/12	6/12	6/12	6/12
Mast Lowered Height	H1	mm	2005	2005	2070	2125	2125	2125	2135
Free Lift Height	H5	mm	130	130	135	140	140	145	155
Max. Lift Height	H	mm	3000	3000	3000	3000	3000	3000	3000
Max. Height at Lift	H2	mm	4035	4035	4230	4230	4230	4230	4240
Overhead Guard Height	H3	mm	2125	2125	2145	2145	2145	2145	2155
Body Length (to fork face)	L	mm	2535	2535	2695	2700	2700	2700	2700
Overall Width	W	mm	1170	1170	1230	1230	1230	1230	1240
Fork Size (T x W x L)		mm	1070×122×40	1070×122×40	1070×122×45	1070×122×50	1070×122×50	1070×122×50	1070×122×50
Fork Spread, Outside (Min/Max)		mm	250-1040	250-1040	250-1085	250-1085	250-1085	250-1085	250-1085
Mast Ground Clearance (Laden)	H4	mm	110	110	115	115	115	115	125
Min. Ground Clearance			115	115	130	130	130	130	140
Min. Turning Radius		mm	2335	2335	2500	2500	2500	2500	2500
Max. Travel Speed (Laden/Unladen)		km/h	14/15	14/15	15/16	15/16	15/16	15/16	15/16
Max. Lift Speed (Laden/Unladen)		mm/s	330/400	300/400	320/380	300/380	300/380	320/370	310/370
Lowering Speed (Laden/Unladen)		mm/s	470/450	470/450	450/410	450/410	450/410	380/370	380/370
Max. Drawbar Pull (Laden)		N	15000	15000	16500	16500	23000	23000	23000
Gradeability (Laden/Unladen)		%	18/20	15/20	20/20	15/20	20/25	18/25	18/25

Other Parameters
			CPD-2.0t	CPD-2.5t	CPD-3.0t	CPD-3.5t	CPD-3.5t MAX	CPD-3.8t	CPD-4.0t

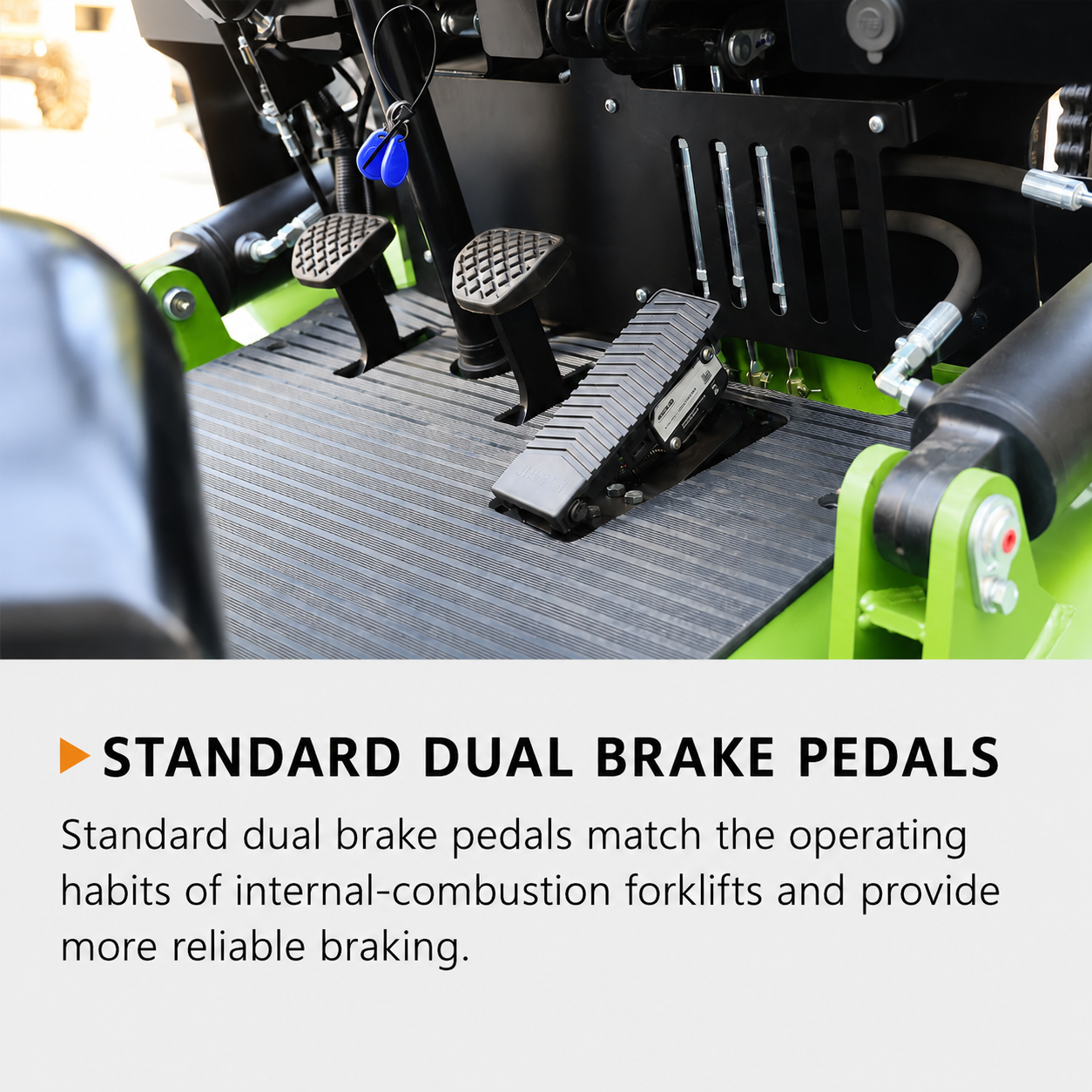

Service Brake (Mech./Electronic/Hydraulic)			Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Parking Brake (Mech./Electronic/Hydraulic)			Mechanical	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical
Traction Motor Rated Power S2 60 min duty	kW		10AC	10AC	12AC	12AC	16AC	16AC	16AC
Pump Motor Rated Power S3 15 min duty	kW		12AC	12AC	18AC	18AC	18AC	24AC	24AC
Motor Type / Protection			AC Induction / IP54	AC Induction / IP54	AC Induction / IP54	AC Induction / IP54	AC Induction / IP54	AC Induction / IP54	AC Induction / IP54

Motor and Controller
			CPD-2.0t	CPD-2.5t	CPD-3.0t	CPD-3.5t	CPD-3.5t MAX	CPD-3.8t	CPD-4.0t
Battery Type			Lithium Battery	Lithium Battery	Lithium Battery	Lithium Battery	Lithium Battery	Lithium Battery	Lithium Battery
Std. Battery Voltage / Capacity	V/Ah		76.8/150	76.8/150	76.8/202	76.8/202	76.8/280	76.8/280	76.8/280
Std. Battery Weight	kg		180	180	200	200	240	240	240
Battery Heating / Protection			Low-temp. Electric Heating / IP54	Low-temp. Electric Heating / IP54	Low-temp. Electric Heating / IP54	Low-temp. Electric Heating / IP54	Low-temp. Electric Heating / IP54	Low-temp. Electric Heating / IP54	Low-temp. Electric Heating / IP54
MCU Motor Controller Type			MOSFET/AC	MOSFET/AC	MOSFET/AC	MOSFET/AC	MOSFET/AC	MOSFET/AC	MOSFET/AC
MCU Motor Controller Model			ACMIII 80C350	ACMIII 80C350	ACMIII 80C350	ACMIII 80C350	ACMIII 80C450	ACMIII 80C450	ACMIII 80C450
Hydraulic System Working Pressure	Mpa		18.5	18.5	18.5	18.5	18.5	18.5	18.5

Standard Equipment Include
Standard 2-stage Mast	Standard Forks	Fork Carriage	Integrated Combination Switch	Lift & Tilt Control Levers	Speed Mode Selector
Load Backrest	Low-noise Gear Pump	Multifunction Display	Emergency Power Cut-off	Reverse Buzzer	Tow Pin
Pump Controller	LED Headlights	Turn Indicators	Central Rear-view Mirror	Drive Controller	Lithium Battery
LED Rear Combination Lights	One-piece Rubber Floor Mat	2-spool Control Valve	Standard Seat	Lifting-type Battery Replacement	On-board Toolbox
Rain Canopy	Mobile Phone Holder	Cup Holder

Optional Configuration
Charger	4-spool Control Valve	Other Fork Lengths	Solid Tires
Rear Work Light	Twin Front Tires	3-stage Full Free-lift Mast	High/Low Overhead Guard
Toolbox	Suspension Seat	Fire Extinguisher	Cabin
Wider/Higher Load Backrest	2-stage Full Free-lift Mast	Front Windshield (with Wiper)	Warning Light

Optional Attachments
Side Shifter	Paper Roll Clamp	Rotating Clamp	Rotating Forks
Load Stabilizer	Fork Extensions	Drum Clamp	Bale Clamp
Carton Clamp	Fork Positioner	Push-Pull	Tilting Fork
Side-shifting Fork Positioner	Carpet Pole	Crane Jib	Rotator

Special Mast Options
2-stage Full Free-lift Mast	3-stage Full Free-lift Mast	Wider Fork Carriage	Higher Load Backrest	Longer Forks	Special Forks

Battery Configuration Table
Applicable Model	Battery Type	Standard	Optional	Optional	Optional	Optional
HK Series 2-2.5t	Lithium Battery (76.8V)	150AH	202Ah	280Ah	346Ah	404Ah
HK Series 3-3.5t	Lithium Battery (76.8V)	202Ah	280Ah	346Ah	404Ah	460Ah
Hk Series 3.8-4t	Lithium Battery (76.8V)	280Ah	346Ah	404Ah	460Ah	\
