EK Series Lead-Acid Electric Forklift
The Vortex EK Series is a cost-effective electric forklift designed for reliable and efficient material handling in warehouses, factories and logistics operations. Featuring a mature 80V AC drive system, the EK Series delivers smooth driving performance, responsive control and dependable operation for everyday material handling tasks.
With a compact body design and low center of gravity, the forklift offers good maneuverability and stable handling, making it suitable for indoor operations and working areas where space is limited. Its electric drive system provides quiet operation and zero exhaust emissions during use, helping create a cleaner working environment.
Designed with practicality and operating cost in mind, the EK Series combines proven electric forklift technology with a simple and durable structure. It is an ideal solution for customers looking for an economical alternative to internal combustion forklifts without requiring a lithium battery system.

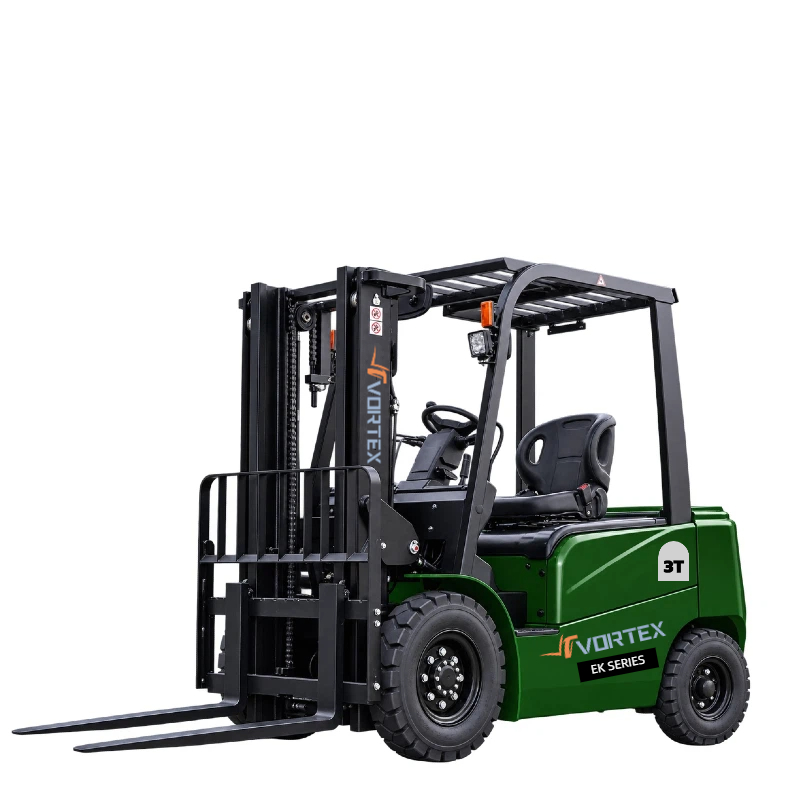

Available in different load capacities, the EK Series is suitable for a wide range of applications including warehousing, manufacturing, logistics, distribution centers and general material handling. EK30 Lithium Counterbalance Forklift — product shot
Cost-Effective Lead-Acid Electric Forklift,Reliable Electric Performance at a Practical Cost
Mature 80V AC technology for reliable and economical material handling.
The Vortex EK Series electric forklift is developed for customers who need reliable electric material handling performance with a competitive initial investment. Equipped with a proven 80V AC system and lead-acid battery technology, the EK Series combines smooth operation, stable handling and practical maintenance with a compact, low-center-of-gravity design.
Whether operating in warehouses, factories or logistics facilities, the EK Series provides dependable everyday performance for loading, unloading, stacking and short-distance material transport. Its simple and proven electric configuration makes it an attractive choice for businesses transitioning from internal combustion forklifts or looking for an economical electric forklift solution.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
*Mature 80V AC System — Proven electric drive technology provides smooth acceleration, stable performance and reliable daily operation.
*Cost-Effective Solution — Lead-acid battery configuration helps balance purchasing cost, reliability and everyday operating requirements.
*Compact & Maneuverable — Compact vehicle dimensions make it easier to operate in warehouses, workshops and confined working areas.
*Low Center of Gravity — Optimized vehicle layout improves stability during driving, turning and load handling.
*Zero Exhaust Emissions — Electric operation produces no exhaust emissions at the point of use, making it suitable for indoor applications.
*Smooth & Quiet Operation — Electric drive reduces operating noise and improves driver comfort in factories and warehouses.
*Wide Application Range — Suitable for warehousing, manufacturing, logistics, distribution and general industrial material handling.
|
BASIC PARAMETERS |
||||||
|
Model |
|
|
CPD 2.0t |
CPD 2.5t |
CPD 3.0t |
CPD 3.5t |
|
Configuration No. |
|
|
EK20-SQ01-Q300 |
EK25-SQ01-Q300 |
EK30-SQ02-Q360 |
EK35-SQ02-Q360 |
|
Power Type |
|
|
Electric |
Electric |
Electric |
Electric |
|
Voltage Platform |
|
V |
80 |
80 |
80 |
80 |
|
Operation Type |
|
|
Seated |
Seated |
Seated |
Seated |
|
PERFORMANCE PARAMETERS |
||||||
|
Rated Load Capacity |
|
kg |
2000 |
2500 |
3000 |
3500 |
|
Load Center |
|
mm |
500 |
500 |
500 |
500 |
|
Front Overhang |
|
mm |
460 |
460 |
475 |
480 |
|
Rear Overhang |
|
mm |
345 |
345 |
350 |
350 |
|
Wheelbase |
L4 |
mm |
1650 |
1650 |
1750 |
1750 |
|
Service Weight |
|
kg |
3640/2830 |
3930/3120 |
4500/3540 |
4800/3840 |
|
Axle Load, Laden |
|
kg |
5070/570 |
5820/610 |
6750/750 |
7470/830 |
|
Axle Load, Unladen |
|
kg |
1890/1750 |
1890/2040 |
2130/2370 |
2125/2675 |
|
DIMENSIONS |
||||||
|
Tire Type |
|
|
Pneumatic |
Pneumatic |
Pneumatic |
Pneumatic Front / |
|
Number of Wheels |
|
|
2x/2 |
2x/2 |
2x/2 |
2x/2 |
|
Front Tire Size |
|
|
7.00-12-12PR |
7.00-12-12PR |
28×9-15-14PR |
28×9-15-14PR |
|
Rear Tire Size |
|
|
18×7-8-14PR |
18×7-8-14PR |
18×7-8-14PR |
18×7-8 |
|
Front Tread |
W1 |
mm |
970 |
970 |
1000 |
1000 |
|
Rear Tread |
W2 |
mm |
960 |
960 |
980 |
980 |
|
Mast Tilt (F / B) |
α/β |
° |
6/12 |
6/12 |
6/12 |
6/12 |
|
Mast Lowered Height |
H1 |
mm |
2005 |
2005 |
2070 |
2125 |
|
Free Lift Height |
H5 |
mm |
130 |
130 |
140 |
145 |
|
Max. Lift Height |
H |
mm |
3000 |
3000 |
3000 |
3000 |
|
Max. Height During Operation |
H2 |
mm |
4035 |
4035 |
4230 |
4230 |
|
Overhead Guard Height |
H3 |
mm |
2160 |
2160 |
2160 |
2160 |
|
Body Length |
L |
mm |
2455 |
2455 |
2575 |
2580 |
|
Body Width |
W |
mm |
1170 |
1170 |
1225 |
1225 |
|
Fork Dimensions |
|
mm |
1070×122×40 |
1070×122×40 |
1070×122×45 |
1070×122×50 |
|
Outside Fork Spread |
|
mm |
250-1040 |
250-1040 |
260-1085 |
260-1085 |
|
Mast Ground Clearance |
H4 |
mm |
115 |
115 |
135 |
135 |
|
Min. Ground Clearance |
|
|
125 |
125 |
125 |
125 |
|
Min. Turning Radius |
|
mm |
2165 |
2165 |
2275 |
2275 |
|
Max. Travel Speed |
|
km/h |
14/15 |
14/15 |
14/15 |
14/15 |
|
Max. Lift Speed |
|
mm/s |
335/430 |
325/430 |
320/380 |
300/380 |
|
Lowering Speed |
|
mm/s |
470/450 |
470/450 |
450/410 |
450/410 |
|
Max. Drawbar Pull |
|
N |
15000 |
15000 |
23000 |
23000 |
|
Gradeability |
|
% |
20/20 |
18/20 |
17/20 |
15/20 |
|
OTHER PARAMETERS |
||||||
|
Service Brake |
|
|
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
|
Parking Brake |
|
|
Mechanical |
Mechanical |
Mechanical |
Mechanical |
|
Traction Motor Rated Power |
|
kW |
10AC |
10AC |
12AC |
12AC |
|
Hydraulic Pump Motor Rated Power |
|
kW |
12AC |
12AC |
18AC |
18AC |
|
Motor Type / Protection Class |
|
|
AC Induction / IP54 |
AC Induction / IP54 |
AC Induction / IP54 |
AC Induction / IP54 |
|
MOTORS AND CONTROLLERS |
||||||
|
Battery Type |
|
|
Lead-acid Battery |
Lead-acid Battery |
Lead-acid Battery |
Lead-acid Battery |
|
Standard Battery |
|
V/Ah |
80/300/360/440 |
80/300/360/440 |
80/360/440/550 |
80/360/440/550 |
|
Standard Battery Weight |
|
kg |
810 |
810 |
960 |
960 |
|
MCU Motor Controller Type |
|
|
MOSFET/AC |
MOSFET/AC |
MOSFET/AC |
MOSFET/AC |
|
Hydraulic System |
|
Mpa |
18.5 |
18.5 |
18.5 |
18.5 |
|
STANDARD EQUIPMENT |
|||||
|
Standard 2-stage Mast |
Standard Forks |
Fork Carriage |
Integrated Combination Switch |
Lift & Tilt Control Levers |
Speed Mode Selection |
|
Load Backrest |
Low-noise Gear Pump |
Multifunction Instrument Panel |
Emergency Power Cut-off Switch |
Reverse Buzzer |
Tow Hook |
|
Hydraulic Pump Controller |
LED Headlights |
Turn Signal Lights |
Center Rearview Mirror |
Drive Controller |
Lead-acid Battery |
|
LED Rear Combination Lights |
One-piece Rubber Floor Mat |
2-spool Control Valve |
Standard Toyota Seat |
Hoist-type Battery Replacement |
On-board Toolbox |
|
Rain Canopy |
Phone Storage Box |
Cup Holder |
|
|
|
|
OPTIONAL EQUIPMENT |
|||
|
Charger |
4-spool Control Valve |
Other Fork Lengths |
Solid Tires |
|
Rear Work Light |
Dual Front Tires |
3-stage Full Free Lift Mast |
High / Low |
|
Toolbox |
Suspension Seat |
Warning |
Fire Extinguisher |
|
Added / Raised Load Backrest |
2-stage Full Free Lift Mast |
Front Windshield (with Wiper) |
OPTIONAL ATTACHMENTS |
|
|
|
|
|
|
OPTIONAL ATTACHMENTS |
|||
|
Sideshifter |
Paper Roll Clamp |
Rotating Clamp |
Rotating Fork |
|
Load Stabilizer |
Fork Extensions |
Drum Clamp |
Bale Clamp |
|
Carton Clamp |
Fork Positioner |
Push-Pull |
Telescopic Fork |
|
Sideshift Fork Positioner |
Carpet Pole |
Lifting Boom |
Rotator |
|
BATTERY CONFIGURATION |
||||
|
Applicable Model |
Battery Type |
Standard |
Optional |
Optional |
|
EK Series 2-2.5t |
Lead-acid Battery (80V) |
300AH |
360AH |
440AH |
|
EK Series 3-3.5t |
Lead-acid Battery (80V) |
360AH |
440AH |
550AH |
|
SPECIAL MAST OPTIONS |
|||||
|
2-stage Full Free Lift Mast |
3-stage Full Free Lift Mast |
Wide Fork Carriage |
Raised Load Backrest |
Extended Forks |
Special Forks |
